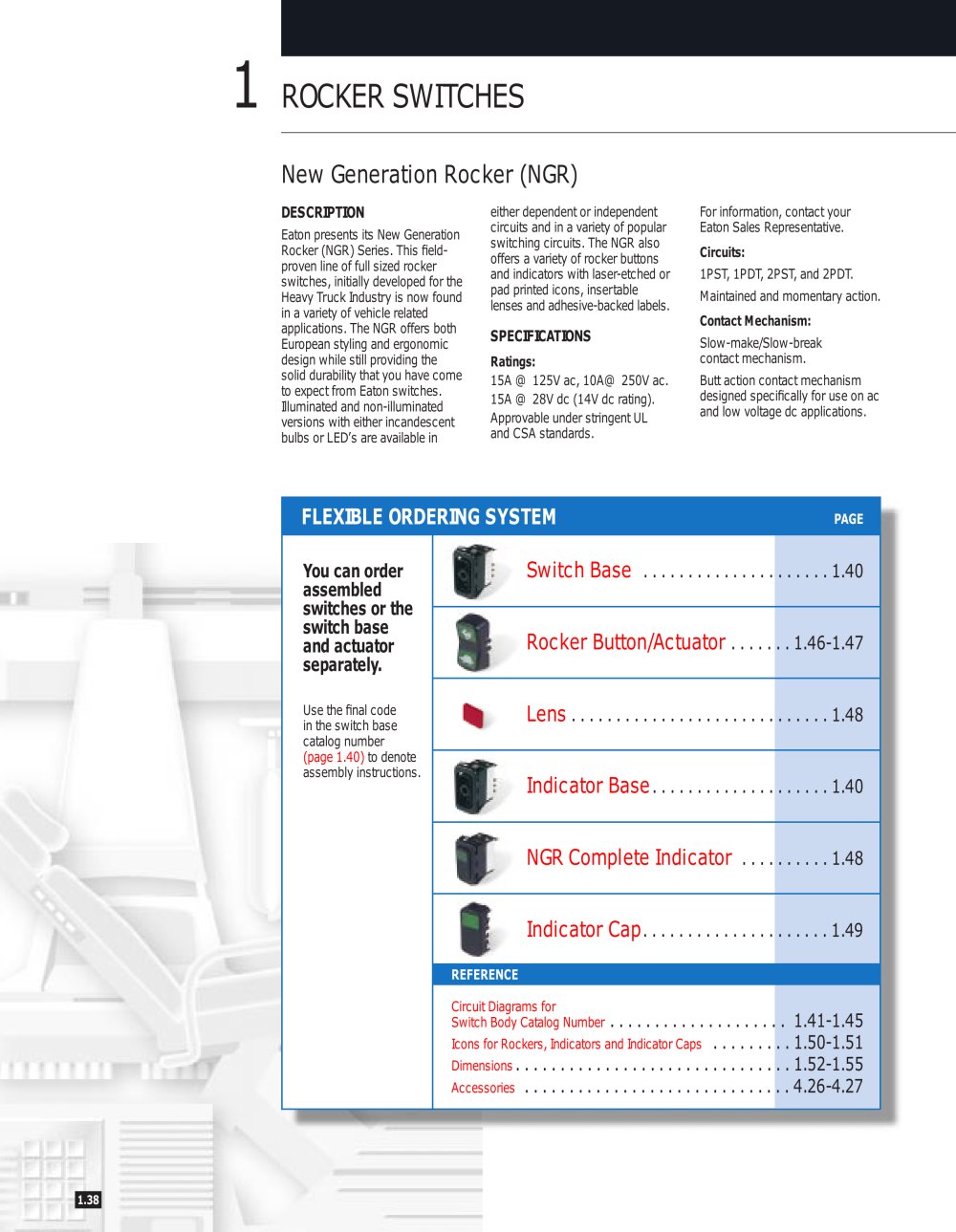

New Generation Rocker (NGR) Switches Series

Product catalog summary

Overview:
Eaton's New Generation Rocker (NGR) Series is a versatile line of rocker switches initially designed for the Heavy Truck Industry, now applicable in various vehicle settings. The series features European styling and ergonomic design, offering both illuminated and non-illuminated options with incandescent bulbs or LEDs. Customization is available through laser-etched or pad-printed icons, insertable lenses, and adhesive-backed labels.

Specifications:

Electrical Ratings: 15A @ 125V AC, 10A @ 250V AC, 15A @ 28V DC.
Certifications: Compliant with UL and CSA standards.
Available Circuits: 1PST, 1PDT, 2PST, and 2PDT with options for maintained and momentary action.
Contact Mechanism: Features slow-make/slow-break and butt action mechanisms.
Durability: Mechanical life of at least 250,000 operations.
Terminal Type: Standard .250″ spade, made from silver-plated copper alloy.
Material: Constructed from high-grade thermoplastic.
Dielectric Strength: Minimum of 1,000V RMS.
Temperature Range: Operates between -40°C to +85°C (-40°F to 185°F).
Mounting: Snap-in design with a plastic bezel, suitable for panel thicknesses of 1.00 to 4.00mm.
Sealing: IP42 for standard versions, IP67 for sealed versions with panel seal.

Features:

Design: European-styled rocker, replaceable, available in multiple colors.
Lighting Options: Supports two incandescent bulbs or LEDs, front replaceable, with standard voltages of 14V DC and 28V DC.
Legend Styles: Offers single piece back-lit, snap-in lenses, and label rocker options.

Customization Options:

Common lamp ground jumper for dual lamp units.
Multiple LEDs for enhanced daylight readability.
Variety of colors for rockers, bezels, and lenses.
Special circuits and ratings available.
Pad-printed and custom back-lit legends.
Reversing jumpers and gang mounting system.
Locking rocker with options for locking in "UP" and/or "DOWN" positions.
Indicators with laser-etched or insertable lenses or adhesive labels.
IP67 rated sealed switch.
Polarized lock-on connectors.

Ordering Information:
To place an order, begin with the appropriate base prefix and add the necessary code letters and/or numbers. Refer to the catalog for detailed ordering instructions and circuit diagrams.

Catalog excerpts

New Generation Rocker (NGR) Switches Series-3

To determine your Complete Catalog Number, you must start with the appropriate Base Preׯ́x and add the appropriate CodeLetters and/or Numbers as in the example below: ...to get to yourAdd each appropriate Number or Letter...Complete Catalog Number Base CircuitFrameFrameSwitchAӔ LampBӔ LampRockerComplete Preﬁx NumberStyleColorContact PlatingType and ColorType and ColorAssembledCatalog Number > LETTERS AND NUMBERS ח ADD TO BASE CIRCUIT NUMBER SwitchSeries(Unsealed)Circuit and LampConﬁguration FrameFrameSwitch ContactAӔ Lamp:BӔ Lamp:RockerStyleColor Plating Q Type and ColorType and ColorAssembled...

Open the catalog to page 3

New Generation Rocker (NGR) Switches Series-13

Q IconDescriptionCode IconDescriptionCode IconDescriptionCode HornAA DehumidiﬁerAR Turn SignalsBH BatteryAB Headlights ASLow/Dipped Beam Clearance/BIPosition Lights FastAC Work LightAT Turn SignalBJ SlowAD Parking LightAU Rear BKWindshield Wiper LockAE Hazard LightsAV Heated MirrorBL UnlockAF Headlights ֖AWHigh/Upper Beam SeatBMAdjustment Up Engine ֖ StopAG Rear WindowAXDemister/Defroster SeatBNAdjustment Down FuelAH Rear Fog LightsAY > Third GearBP MasterAJLighting Switch Front Fog LightsBA > First GearBQ Windshield ֖ AKWiper Interior Dome LightsBB BeaconBR Windshield ALWasher Electrical Power...

Open the catalog to page 13

New Generation Rocker (NGR) Switches Series-14

Q IconDescriptionCode IconDescriptionCode IconDescriptionCode > AuxillaryBXDrive Down All WheelCWDrive DoorEBOpen RearBZWindow Washer OffDM DoorECClose Entry StepCA Engine ֖DNDiesel Preheat BaggageEDArea Light > Engine BrakeCB Heated SeatDP RefreshmentsEE > Engine BrakeCC3 Stage Heated MirrorDQ SetEF > 321 Engine BrakeXX2 Stage > 21 Drivers LightDR ResumeEG Select IdleCE DriverҒs FanDS EtherEH HeaterCF Ramp InDT Engine FanEI > CruiseCL Ramp OutDU BaggageEJLock > Parking BrakeCP KneelDVUp BaggageEKUnlock AlarmCQ KneelDWDown DisabledEL > RetarderCR StartDX DoorEMLocked Heated SeatCS StopDY DoorENUnlocked...

Open the catalog to page 14

New Generation Rocker (NGR) Switches Series-16

LEGENDAREA "A"AREA "B"LEGEND LegendArea "B" Surface Length Along Bottom28.65 > Ѱ 1 Ѱ NOTE: Graphics window may be on both or either end of part.Rotated 12 CCWGraphics window Dimensions shown are typical. >
