Larger Rocker Switches - 92 Series

Product catalog summary

Description: The 92 Series rocker switches are designed for applications requiring a large rocker with significant switching power. They are available in standard black and white or custom colors, with options for matte or gloss finishes. The switches come in both illuminated and non-illuminated versions, with the illuminated models featuring all-illuminated or window-illuminated translucent rockers in four colors. Installation is simplified with snap-in mounting and combination quick-connect/solder lug terminals.

Specifications: The switches are available in various circuit configurations including 1PST, 1PDT, 2PST, and 2PDT, with maintained and momentary actions, and two or three positions. They are rated for 16A at 250V AC and 28V DC. The contact mechanism is a slow-make/slow-break type with silver inlay over copper contacts, ensuring a contact resistance of 10 MΩ maximum at 1A, 4V DC. The electrical life is rated at a minimum of 50,000 cycles, while the mechanical life is at least 100,000 cycles. The insulation resistance is 50 MΩ, and the dielectric withstand is 1000V RMS minimum.

Ordering Information: To order, start with the base circuit number and add the appropriate code letters and numbers. The catalog number is determined by the series reference, lens color, finish, circuit code, voltage, and termination type.

Dimensions: The switches have specific dimensions for panel cutouts and terminal layouts, with detailed measurements provided in both millimeters and inches. The panel thickness for cutouts ranges from 0.90 mm to 3.20 mm.

Approvals: The switches are approved by UL and CSA, ensuring compliance with safety standards.

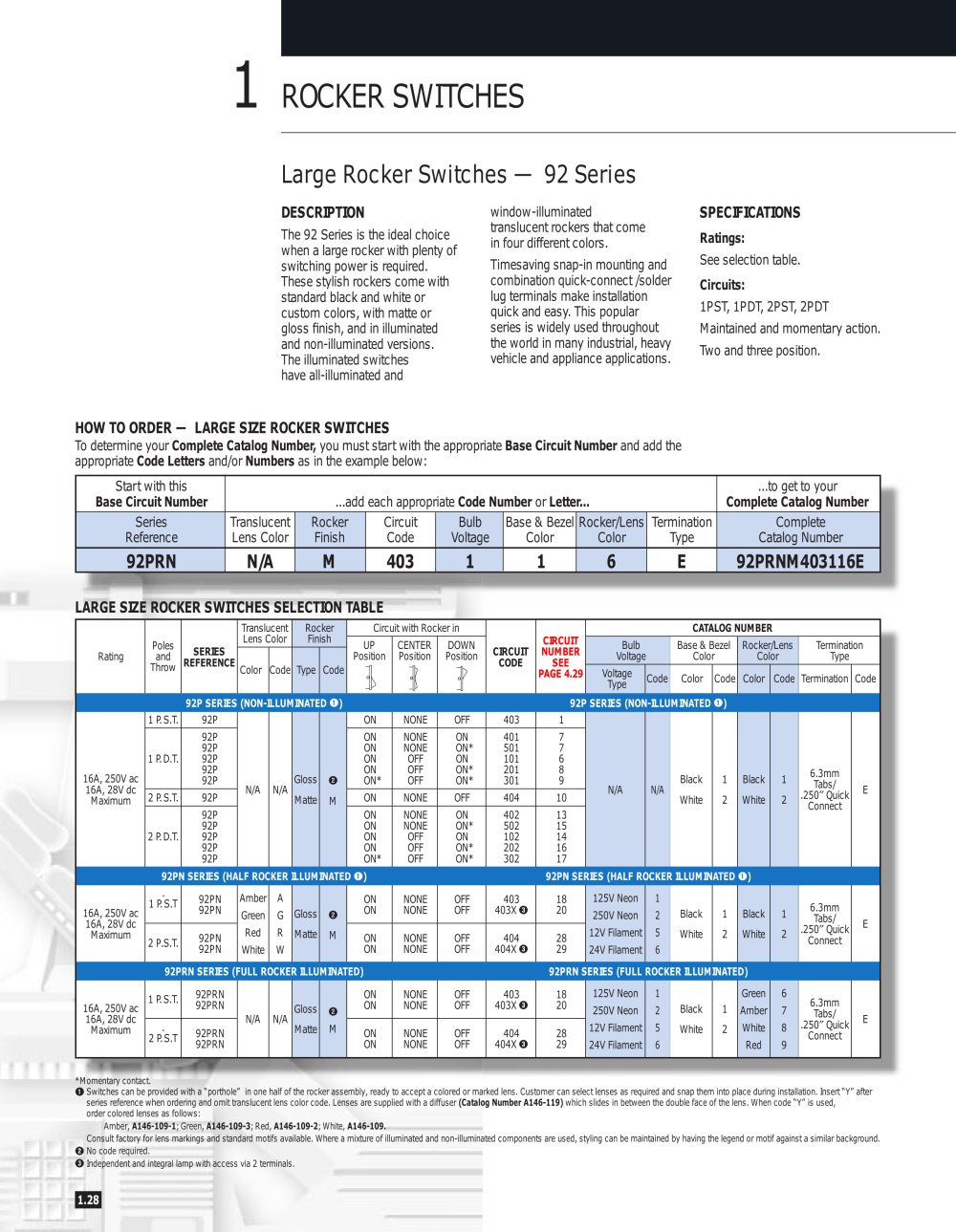

Catalog excerpts

Mechanical Life: Lamp Life(NeonandFilament): 100,000 cycles minimum. Insulation Resistance: 5,000 hours minimum. Contact Mechanism: 50 M Ω . Lamp Wattage (Filament): Slow-make/Slow-breakcontact mechanism.Butt action contactmechanismdesigned speciﬁcally for useon ac andlow voltagedcapplications. Dielectric Withstand: 24V 0.96 Watt.12V ח 0.48 Watt. 1000V RMS minimum. > Termination Type: OperatingTemperatureRange Contact Material: 6.3mm tabs/.250 ″ 0C to +85аC(+32F to +185аF). Silver inlay over copper. Quick-connect. Contact Resistance: Termination Material: Approvals: 10 M Ω maximumat1A,4Vdc. Copper.Lamp...
