- Travel Range: Linear stages offer travel from 6.5 mm to 50 mm. Rotary stages provide 360-degree coarse travel with fine adjustments.
- Size and Load Capacity: MicroMech™ stages are compact, ideal for restricted spaces, while MacroMech™ stages support larger loads.
- Construction: Made from steel and aluminum for lightweight yet precise performance. Features include pre-loaded ball bearing slides for accuracy.
- Resolution: Manual stages offer resolutions down to 1.0 µm, with motorized options achieving 0.05 µm.
- Vacuum Compatibility: Usable in vacuums down to 10^-5 Torr with appropriate modifications.
- Mounting and Compatibility: Products are available in Metric and Inch versions, compatible with industry standards.
- Motorization: Stages can be fitted with MotorDrivers™ or EncoderDrivers™ for enhanced control and precision.
- Features include micrometer resolution, compact design, and pre-loaded ball bearing slides.
- Available with or without a top plate, suitable for stacked assemblies and OEM applications.
- Specifications include a 6.5 mm travel range and load capacities of 3 kg horizontally and 0.5 kg vertically.
- Linear stages offer travel ranges of 12.7 mm and 6.5 mm, with options for motorization.
- Rotary stages provide 360-degree rotation with fine adjustments and a resolution of less than 30 arcseconds.
- Designed for medium weight loads, offering 25 mm and 50 mm travel with high accuracy and stability.
- Constructed from a one-piece machined aluminum body with pre-loaded ball bearing slides.
- Available with various actuator options, including micrometer, MotorDriver, and EncoderDriver.
Catalog excerpts
Manual Micropositioners Optics Optics Lenses & Microscope Components Manual Micropositioners Technical Considerations Mounting and Compatibility Actuators and Motorization 140-141 142 143 Coatings Coatings MicroMech™ Prisms & Polarizers Linear Stages Angle Brackets 144-146 147 MiniMech™ Mirrors & Beamsplitters How It Goes Together Linear Stages Rotary Stage 148 149-151 152 How It Goes Together Linear Stages Angle Brackets 1-Axis Tilt Stage 153 154-159 160 161 Filters MacroMech™ Rails Mounting Hardware Mirror & Component Mounts Manual Micro Positioners Motorized Positioners Opto-mechanics Pinholes Optomechanics Lenses & Microscope Components Mirrors & Beamsplitters Prisms & Polarizers Filters Pinholes Optomechanics Rails Mounting Hardware Mirror & Component Mounts Manual Micro Positioners Motorized Positioners Optical Instruments Optical Instruments Microscopes Microscopes Light Sources Light Sources 138 www.ealingcatalog.com US: 1-800-295-3220 EUR: +0800 756 5394 www.ealingcatalog.com US: 1-800-295-3220 EUR: +0800 756 5394 139
Open the catalog to page 1

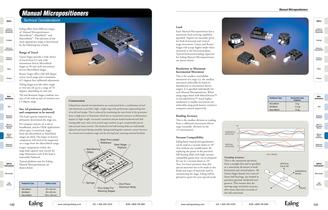

Manual Micropositioners Optics Lenses & Microscope Components Coatings Technical Considerations Optics Load Ealing offers three different ranges of Manual Micropositioners MicroMech ™, MiniMech™ and MacroMech™. The selection of the most appropriate range is determined by the following key criteria. Range of Travel Filters Pinholes Linear Stages provide a wide choice of travel from 6.5 mm with micrometer-driven MicroMech Stages to 50 mm with micrometerdriven MacroMech Stages. Rotary Stages offer a full 360 degree coarse travel range and a minimum of 5 degrees fine calibrated adjustment. Rails...
Open the catalog to page 2

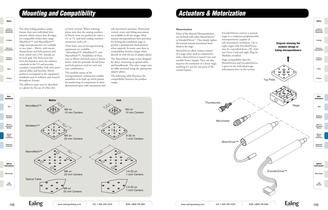

Mounting and Compatibility Actuators & Motorization Optics Mirrors & Beamsplitters Prisms & Polarizers Filters Pinholes on Inch versions. When ordering, please note that the catalog numbers of Metric units are prefixed by either a 53- or 74- and Inch catalog numbers commence with a 61- . Three basic sizes of micropositioning equipment are available –MicroMech™, MiniMech™, and MacroMech™. Availability of these sizes as Metric and Inch types is shown below, with the principle thread forms and hole patterns used on each size/ type combination. Rails The MacroMech range is also designed for direct...
Open the catalog to page 3

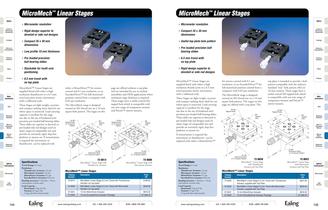

MicroMech ™ Linear Stages MicroMech ™ Linear Stages • Micrometer resolution • Micrometer resolution • Rigid design superior to • Compact 35 x 30 mm Optics dimensions • Useful top plate hole pattern • Compact 35 x 30 mm dimensions Mirrors & Beamsplitters Prisms & Polarizers Filters • Pre-loaded precision ball • 6.5 mm travel with • Pre-loaded precision • Rigid design superior to • Stackable for multi-axis • 6.5 mm travel with Pinholes Mirror & Component Mounts Manual Micro Positioners Motorized Positioners MicroMech™ Linear Stages are supplied fitted with either a high resolution thumbscrew or...
Open the catalog to page 4

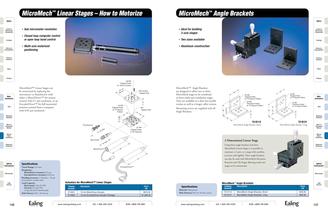

MicroMech ™ Linear Stages – How to Motorize MicroMech™ Angle Brackets Optics Lenses & Microscope Components Optics • Sub micrometer resolution • Ideal for building 3-axis stages • Closed loop computer control Coatings Mirrors & Beamsplitters Lenses & Microscope Components or open loop hand control • Two sizes available • Multi-axis motorized Coatings • Aluminum construction Mirrors & Beamsplitters positioning Prisms & Polarizers Prisms & Polarizers Filters Filters Pinholes Pinholes (8) M2 Tapped Holes on 10mm Centers Optomechanics Rails MicroMech™ Linear Stages can be motorized by replacing the...
Open the catalog to page 5

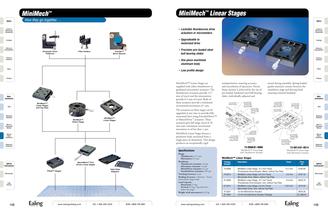

MiniMech™ Linear Stages MiniMech™ Optics How they go together. . . Optics • Lockable thumbscrew drive Lenses & Microscope Components Lenses & Microscope Components actuators or micrometers • Upgradeable to Coatings Coatings motorized drive Mirrors & Beamsplitters Kinematic Prism Platforms Filter Holders Mirrors & Beamsplitters • Precision pre-loaded steel Precise™ Mirror Mounts ball bearing slides Prisms & Polarizers Prisms & Polarizers • One piece machined aluminum body Filters Filters • Low profile design Pinholes Pinholes Mounting Hardware The actuators on these stages can be upgraded at any...
Open the catalog to page 6

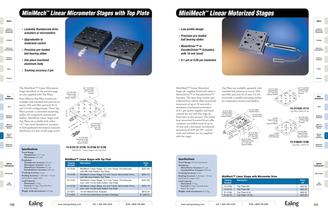

MiniMech™ Linear Micrometer Stages with Top Plate MiniMech™ Linear Motorized Stages Optics Lenses & Microscope Components Coatings Optics • Low profile design • Lockable thumbscrew drive actuators or micrometers • Precision pre-loaded ball bearing slides • Upgradeable to motorized control Mirrors & Beamsplitters Lenses & Microscope Components Coatings • MotorDriver™ or Mirrors & Beamsplitters ball bearing slides Prisms & Polarizers EncoderDriver™ Actuators, with 10 mm travel • One piece machined • 0.1 µm or 0.05 µm resolution • Precision pre-loaded Prisms & Polarizers aluminum body Filters Filters...
Open the catalog to page 7
MacroMech™ MiniMech™ Rotary Stage How they go together. . . Optics Lenses & Microscope Components Optics • Compact Lenses & Microscope Components • Rotation 360˚ coarse, 6˚ fine Coatings Mirrors & Beamsplitters Coatings • Lockable • Radial ball bearing design Kinematic Prism Platforms Filter Holders Precise™ Mirror Mounts Mirrors & Beamsplitters Prisms & Polarizers Prisms & Polarizers Filters Filters Pinholes Pinholes Optomechanics Rails Mounting Hardware Mirror & Component Mounts Manual Micro Positioners The MiniMech™ Rotary Stage provides a full 360 degrees of rotation from a stage supported...
Open the catalog to page 8

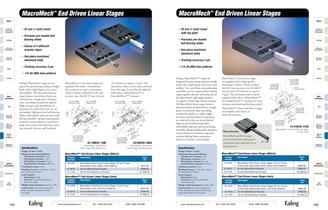

MacroMech™ End Driven Linear Stages MacroMech™ End Driven Linear Stages Optics Lenses & Microscope Components Optics • 25 mm (1 inch) travel • 25 mm (1 inch) travel with top plate • Precision pre-loaded ball Coatings Mirrors & Beamsplitters Prisms & Polarizers Filters Lenses & Microscope Components bearing slides • Precision pre-loaded Coatings ball bearing slides • Choice of 4 different actuator types Mirrors & Beamsplitters • One piece machined aluminum body • One piece machined aluminum body Prisms & Polarizers • Tracking accuracy 4 µm • Tracking accuracy 4 µm • 1/4-20 (M6) hole patterns Filters...
