CLO ANTENNA

CLO ANTENNA
1 / 1 PageView full catalog

CLO ANTENNA

Product catalog summary
Key Features
  • Low Profile Puck Antenna
  • 1 x 4G/5G Element
  • Compact Dimensions
  • Permanent Mount
  • Mount onto Metal Surface
Applications
  • 4G/5G Access
  • Vehicles / Transportation
  • Street Cabinets
  • Security/CCTV Systems
  • Kiosks and Terminals
Electrical Specifications
  • Frequency Range: 690-960/1710-2170/2400-2690/3400-3800 MHz
  • Peak Gain: 2.74 / 3.67 / 3.65 / 4.9 dBi
  • Input Power: 10w
  • Impedance: 50 Ohm
  • Polarization: Linear
  • VSWR: <2.5:1
Mechanical Specifications
  • Dimensions: 106 x 33.5mm (dxh)
  • Radome Material: UV-Resistant ASA
  • IP-Rating: IP-67
  • Mounting: Permanent Stud Mount with 20mm threaded stud
Popular Ordering Options
  • FCLO35358-SM-1K: CLO Antenna with 1M RG174 and SMA-Male connector
  • FCLO35358-SM-2K: CLO Antenna with 2M RG174 and SMA-Male connector
Product Overview

The CLO Low Profile Antenna is a 4G/5G multiband low profile puck antenna operating in the 700-3800 MHz frequency bands. It is IP67 rated for continuous outdoor operation, making it robust and effective with exceptional gain figures. This antenna is ideal for various 4G and 5G applications in industrial and commercial environments where a discreet and sturdy antenna is required.

Contact Information

CLO Antenna, Unit 19, Kings Meadow, Ferry Hinksey Road, Oxford OX2 0DP, UK
Tel: +44 (0)1865 548185
Email: [email protected]
Web: www.ead-ltd.com

See more

Catalog excerpts

CLO ANTENNA-1

CLO Low Profile Antenna The CLO is a 4G/5G multiband low profile puck antenna operating in the 700-3800 MHz frequency bands. IP67 rated when mounted for continuous outdoor operation, this antenna is a robust and effective performer with exceptional gain figures. It is ideal for a variety of 4G and 5G applications in industrial and commercial environments where a discreet and sturdy antenna is required. Applications U 4G/5G Access U Vehicles / Transportation U Street Cabinets U Security/CCTV Systems U Kisoks and Terminals U Low Profile Puck Antenna U 1 x 4G/5G Element U Compact Dimensions U Permanent Mount U Mount onto Metal Surface ELECTRICAL SPECIFICATIONS Unit 19, Kings Meadow Ferry Hinksey Road Oxford OX2 0DP UK Email: [email protected] Web: www.ead-ltd.com Specifications subject to change without notice.

 Open the catalog to page 1

All EAD Embedded Antenna Design Ltd catalogs and technical brochures

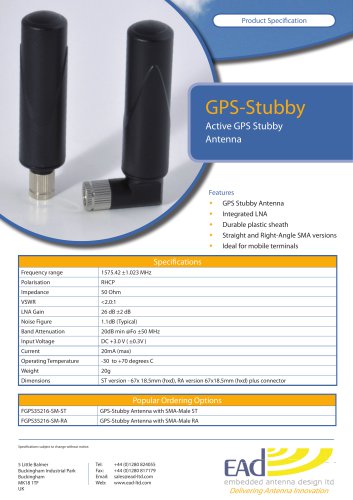

  1. GPS-Stubby
    GPS-Stubby

    2  Pages

  2. CLG ANTENNA
    CLG ANTENNA

    1  Page

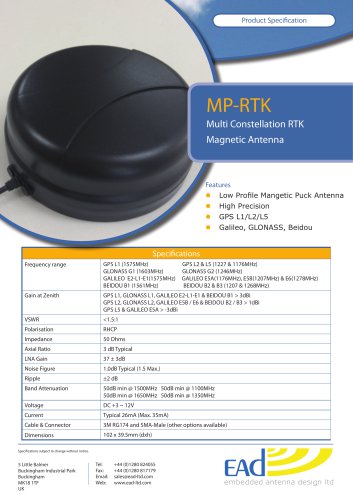

  3. MP-RTK
    MP-RTK

    1  Page

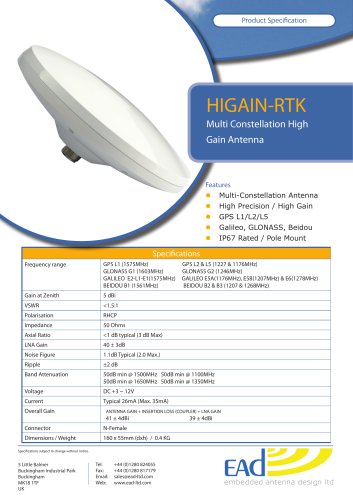

  4. HIGAIN-RTK
    HIGAIN-RTK

    1  Page

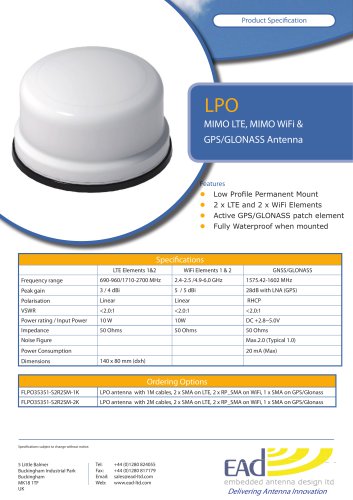

  5. LPO
    LPO

    1  Page

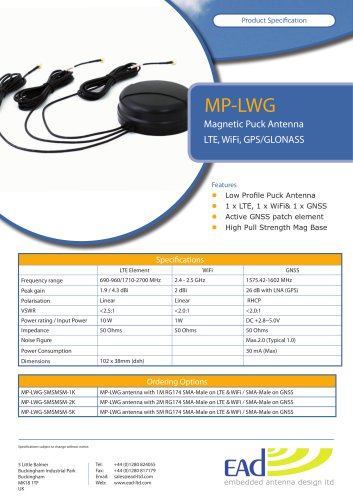

  6. MP-LWG
    MP-LWG

    1  Page

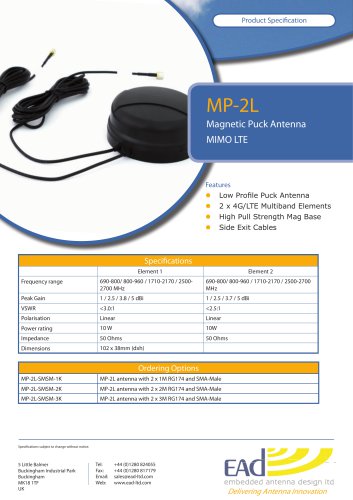

  7. MP-2L
    MP-2L

    1  Page

  8. MP-2LG
    MP-2LG

    1  Page

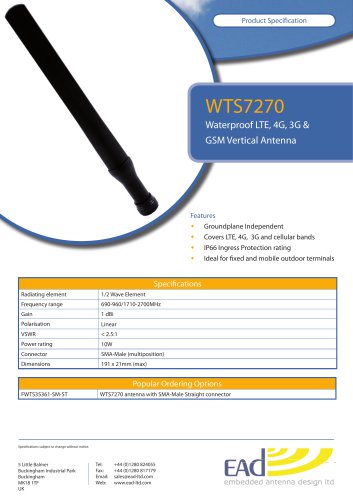

  9. WTS7270
    WTS7270

    2  Pages

  10. C2LW Antenna
    C2LW Antenna

    1  Page

  11. LTE Stubby Antenna
    LTE Stubby Antenna

    1  Page

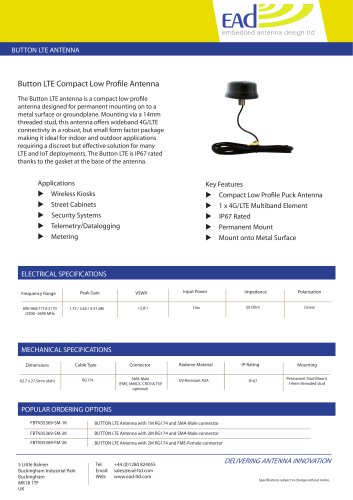

  12. BUTTON LTE ANTENNA
    BUTTON LTE ANTENNA

    1  Page

  13. MIMO-MAG ANTENNA
    MIMO-MAG ANTENNA

    1  Page

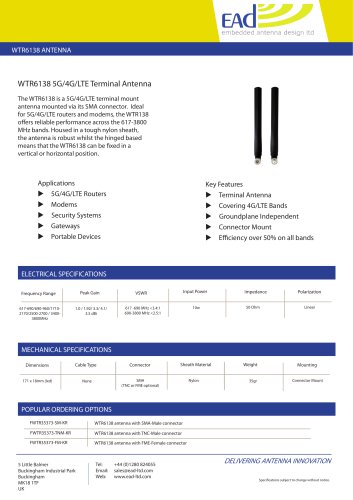

  14. WTR6138 ANTENNA
    WTR6138 ANTENNA

    1  Page

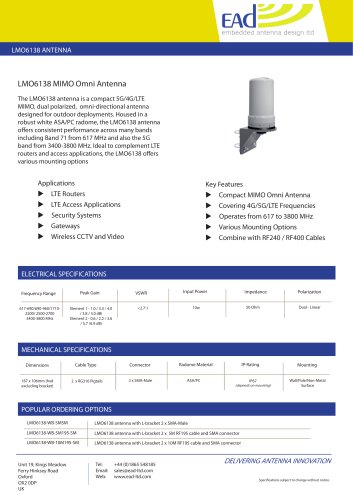

  15. LMO6138 ANTENNA
    LMO6138 ANTENNA

    1  Page

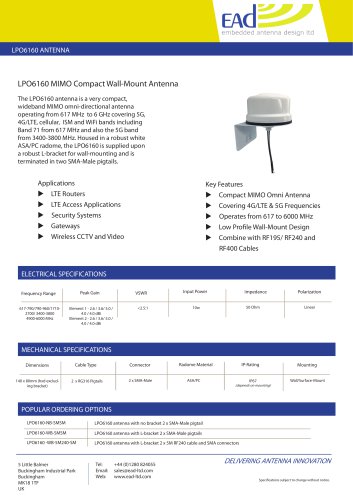

  16. LPO6160 ANTENNA
    LPO6160 ANTENNA

    1  Page

  17. MAVERIK ANTENNA
    MAVERIK ANTENNA

    1  Page

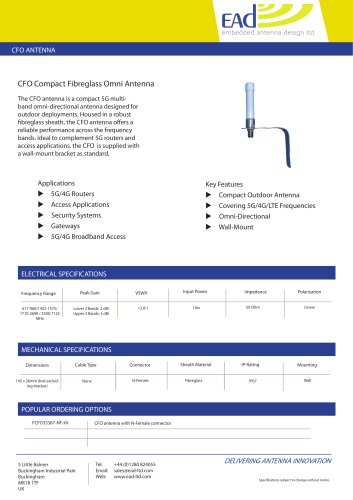

  18. CFO ANTENNA
    CFO ANTENNA

    1  Page

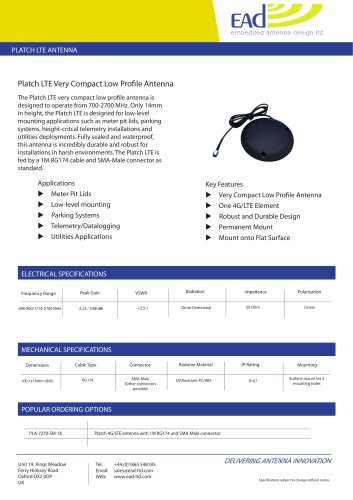

  19. PLATCH LTE ANTENNA
    PLATCH LTE ANTENNA

    1  Page

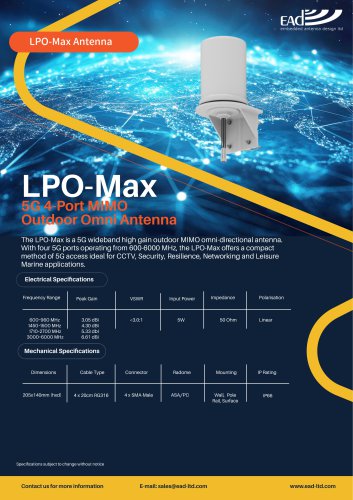

  20. LPO-Max
