DatasheetHTP501 Digital Humidity and Temperature Probe up to 120 °C (248 °F)

HTP501 Digital Humidity and Temperature Probe up to 120 °C (248 °F) The HTP501 is ideal for reliable and cost effective measurement of relative humidity (RH) and temperature (T) in demanding industrial process control applications up to 20 bar (290 psi). Besides the measurement of RH and T, the HTP501 calculates all humidity related physical quantities like dew point temperature (Td), absolute humidity (dv) or mixing ratio (r). Outstanding Measurement Performance The probe employs a high end E+E humidity sensing element which stands for high RH measurement accuracy over the entire T working range...

FeaturesMeasurement Performance ■ High RH / T accuracy ■ Frost point temperature (Tf) ■ Water vapour partial pressure (e) ■ Configurable pressure compensation ■ Protected by E+E proprietary coating ■ Optional sensor leads protection ■ Outstanding long term stability ■ Wide choice of filter caps Mechanical construction ■ Stainless steel enclosure ■ Process connection with ISO or NPT sliding fitting for type T10 Interface and connection ■ RS485 with Modbus RTU ■ Flexible high temperature cable ■ User configurable and adjustable ■ Free configuration software

Features Protective Sensor Coating The E+E proprietary sensor coating is a protective layer applied to the sensing elements, their leads and soldering points. The coating substantially extends sensor lifetime and ensures optimal measurement performance in corrosive environment (salts, off-shore applications). Additionally, it improves the sensors’ long term stability in dusty, dirty or oily applications by preventing stray impedance caused by deposits on the active sensor surface or on the electrical connections. Sensor Leads Protection In certain very aggressive applications, the combination...

Dimensions Values in mm (inch) Type T10 Technical DataMeasurandsRelative humidity (RH) Measuring range 1) Including hysteresis, non-linearity and repeatability. Defined against E+E calibration reference. 2) Defined with an enhancement factor k=2, corresponding to a confidence level of 95 %.

Temperature (T) Measuring range 1) Defined against E+E calibration refe rence. 2) Defined at 23 °C with an enhancement factor k=2, corresponding to a confidence level of 95 %. 1) DNV scope of approval: please refer to ordering guide.

Ordering Guide Feature 1) DNV approval available for probe length 200 mm (7.9") only

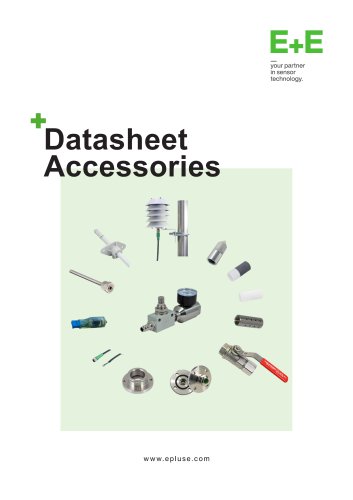

Accessories For further information please refer to the Accessories datasheet.

Company Headquarters & Production Site 4209 Engerwitzdorf | Austria T +43 7235 605-0 F +43 7235 605-8 [email protected] www.epluse.com E+E Sensor Technology (Shanghai) Co., Ltd. E+E Elektronik France SARL E+E Elektronik Deutschland GmbH T +49 6171 69411-0 [email protected] E+E Elektronik India Private Limited T +91 990 440 5400 [email protected] E+E Elektronik Corporation T +1 847 490 0520 [email protected] datasheet_HTP501 | Version v2.0 | 08-2024 © Copyright E+E Elektronik Ges.m.b.H. | All rights reserved. your partner in sensor technology.
