New Product Brochure

Product catalog summary

Overview: This document provides comprehensive details on piezoelectric and DC sensors for dynamic measurement applications, including vibration, shock, structural dynamics, dynamic force, and pressure. It introduces new products, highlighting their features, benefits, and potential applications.

1. Single Axis Cubic Accelerometer 3214A: Features a unique cubic design with various sensitivities, hermetically sealed, and low noise JFET electronics. Benefits include cost-effectiveness and suitability for modal analysis and general-purpose vibration.

2. Low Cost General Purpose Accelerometers 3255A and 3256A: These accelerometers offer various sensitivities, lightweight titanium construction, and low noise electronics, ideal for shaker control and general-purpose vibration.

3. Variable Capacitance DC Response Accelerometer 7500A: Utilizes MEMS technology with differential output and rugged titanium construction, suitable for crash testing, robotics, and seismic monitoring.

4. High Temperature Miniature Triaxial Accelerometer 3023M23: Operates up to 320°F with stable MOSFET amplifier technology, suitable for high-temperature applications.

5. Cryogenic Accelerometer 3045A: Functions continuously down to -420°F, ideal for cryogenic pump vibration measurements.

6. High Temperature Differential Accelerometer 3085C: Operates at +500°F, suitable for high-temperature turbine engine vibration measurements.

7. Miniature Shock Accelerometer 3086A: Offers high natural frequency and temperature operation, suitable for automotive and turbine engine vibration monitoring.

8. Ring Style Charge Mode Force Sensor 1210C: Measures low-level pressure pulsations, suitable for press monitoring and process control.

9. Acoustic Sensor 2180M1: ATEX certified, suitable for pipeline leak detection and industrial acoustic studies.

10. Ultra Miniature Tear Drop Accelerometer 3224A2: Fits in small spaces, suitable for environmental stress screening and modal analysis.

11. Submersible Low Profile Accelerometer 3211M1: Reliable in submerged environments, suitable for submarine and underwater vehicle vibration testing.

IEPE Sensors: Compact design, minimal mass loading, and standard IEPE signal conditioning, suitable for environmental stress screening and general-purpose vibration.

High Temperature and Cryogenic Sensors: Stable output at extreme temperatures, suitable for high-temperature turbine engine and cryogenic pump vibration measurements.

General Purpose Accelerometers: Cost-effective and easy to apply, suitable for shaker control and general-purpose vibration.

Specialized Sensors: High frequency response and suitable for submerged environments, ideal for drop/shock testing and underwater vehicle vibration testing.

Contact Information: Dytran Instruments, Inc., 21592 Marilla Street, Chatsworth, California 91311. Phone: 818.700.7818, Fax: 818.700.7880, Email: [email protected].

Catalog excerpts

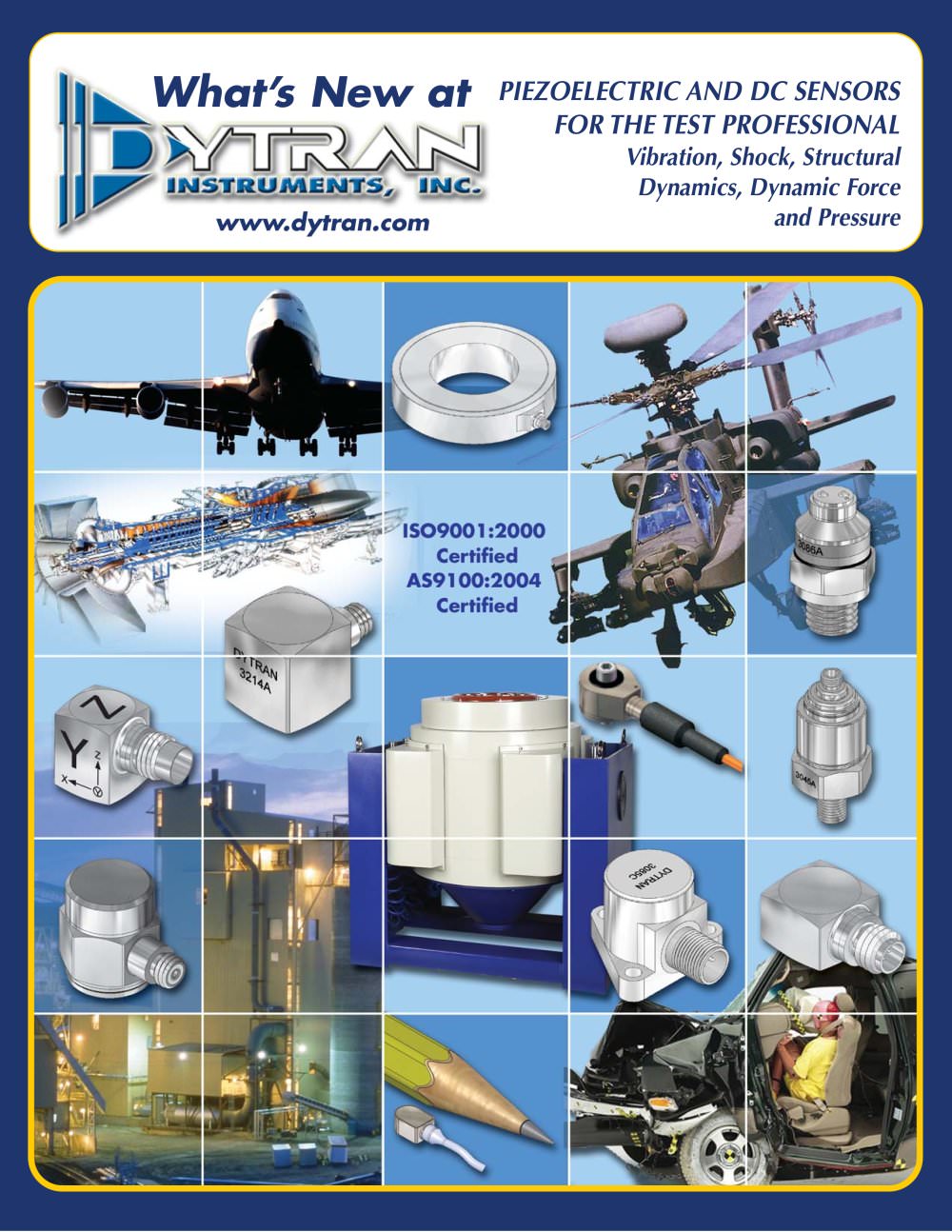

PIEZOELECTRIC AND DC SENSORS FOR THE TEST PROFESSIONAL > Vibration, Shock, Structural Dynamics, Dynamic Force and Pressure www.dytran.com size="-2">

Open the catalog to page 1

Available in ranges from20,000 Lb to 100,000 LbՕ 18pC/Lb sensitivity Through hole mountՕ Side 10-32 connector Hermetically sealedՕ Stainless steel construction Low profileՕ Charge mode Ring style force sensors can be preloaded and used as force links for both tension and compression measurementsՕLow profile and through hole design minimizes intrusion during machinery modifications Press monitoring ՕProcess controlForce linkՕBalancing Machinery studies > ՕATEX certified 2V/psi sensitivity Օ1 inch NPT mounting threadMIL 2-pin connector Օ316L stainless steel constructionHermetically sealedՕIEPE...

Open the catalog to page 2

Operates up to 320հF10mV/g sensitivityՕ10-32 mounting holeSingle 4-pin connectorՕAll titanium constructionHermetically sealedՕWide bandwidth Axes marked as X, Y, ZՕIEPEStable mosfet amplifier technologyՕIEPE Large letters clearly identify axesՕUses standard IEPE signal conditioning Modal analysis ՕNVHEnvironmental Stress ScreeningՕGeneral purpose vibration > Continuous operation down to -420հF5mV/g sensitivityՕ+/- 1000g range10-32 axial connector Օ1/4-28 mounting studElectrically isolatedՕLow pass 2 pole filter Cryogenic pump vibration measurementsՕCryogenic industrial monitoringRocket engine...

Open the catalog to page 3

+600հF operation10pC/g sensitivityՕ10-32 electrical connector10-32 mount ՕAll stainless steel constructionHermetically sealedՕCharge mode High temperature operationՕNo internal electronics required, self generating, increases MTBF Automotive - engine / exhaust analysisՕTurbine engine vibration monitoring > Weighs only 0.6 g Օ10mV/g sensitivityIntegral lead wiresՕAdhesive mount SubminiatureՕHermetically sealedIEPE ՕCost effectiveReduced mass loadingՕMinimal footprint Environmental Stress ScreeningՕPrinted circuit board testingOEM / embedded applications > ՕLow noise JFET internal electronicsLock...

Open the catalog to page 4

Low noise electronicsՕWide bandwidthIEPE > ՕUnique cubic design Available in 10mV/g, 100mV/g, and 500mV/g sensitivitiesՕ10-32 mounting hole10-32 electrical connectorՕAll titanium constructionHermetically sealed ՕModal analysisNVHՕSqueak & RattleGeneral purpose vibration > ՕMounts from 4 sidesEasy to apply and remove from test structure > ՕLow noise JFET electronicsTEDS version available ՕIEPE > Available in 10mV/g, 100mv/g or 500mV/g sensitivitiesՕ10-32 mounting holeSide 10-32 connector ՕHermetically sealedLight weight titanium construction ՕShaker control Modal analysis ՕGeneral purpose vibration...

Open the catalog to page 5
