Tuffer™ Aerator/Lump Breaker Series 329

Tuffer™ Aerator/Lump Breaker  Series 329

Tuffer™ Aerator/Lump Breaker Series 329

Product catalog summary
Overview: The Tuffer® Aerator/Lump Breaker Series 329 is designed to reduce lumps in moist, semi-moist, or dry solids to improve material handling. It uses counter-rotating blades to achieve a consistent particle size and enhance material flow.
Features:
  • Abrasion-resistant flexible urethane blades
  • Air purge shaft seals
  • Rugged construction with V-belt drive
  • Low profile and self-cleaning design
  • Cost-effective
Options:
  • Stainless steel construction and blades
  • Special finishes and voltages
  • Variable speed drive and shear bar
  • Outboard bearings and stuffing box shaft seal for high temperatures
Applications: Suitable for materials like alumina, ball clay, barite, bauxite, bentonite, borax, calcium carbonate, cement, feldspar, fine coal, flour, fluorspar, fly ash, gypsum, iron oxide, kaolin clay, lime, milk powder, molding sand, PVC resin, quartz, silica sand, soda ash, sodium sulfate, sugar, talc, and more.
Operation: Material is fed into the aerator/lump breaker using a feeding device. The counter-rotating blades use centrifugal force to break up lumps and aerate the material, resulting in a smoother consistency.
Construction: Features two independently driven shafts with heavy-duty blades. A shear bar design is available for finer particle breakdown. The low profile design allows for easy installation in various systems.
Power Requirements:
  • Standard Operating Voltage: 230/460 VAC 3 phase 60 Hz
  • Standard Operating Temperature: 150°F/65°C
Models and Specifications:
  • Model 2412: Dimensions - A: 16-1/8", B: 13-1/8", E: 3", Shipping Weight: 525 lbs.
  • Model 2424: Dimensions - A: 28-1/8", B: 25-1/8", E: 6", Shipping Weight: 650 lbs.
  • Model 2436: Dimensions - A: 40-1/8", B: 37-1/8", E: 7", Shipping Weight: 800 lbs.
  • Model 2442: Dimensions - A: 46-1/8", B: 43-1/8", E: 8", Shipping Weight: 885 lbs.
Contact Information: Dynamic Air Inc., St. Paul, MN, USA. Phone: (651) 484-2900. Website: www.dynamicair.com
See more

Catalog excerpts

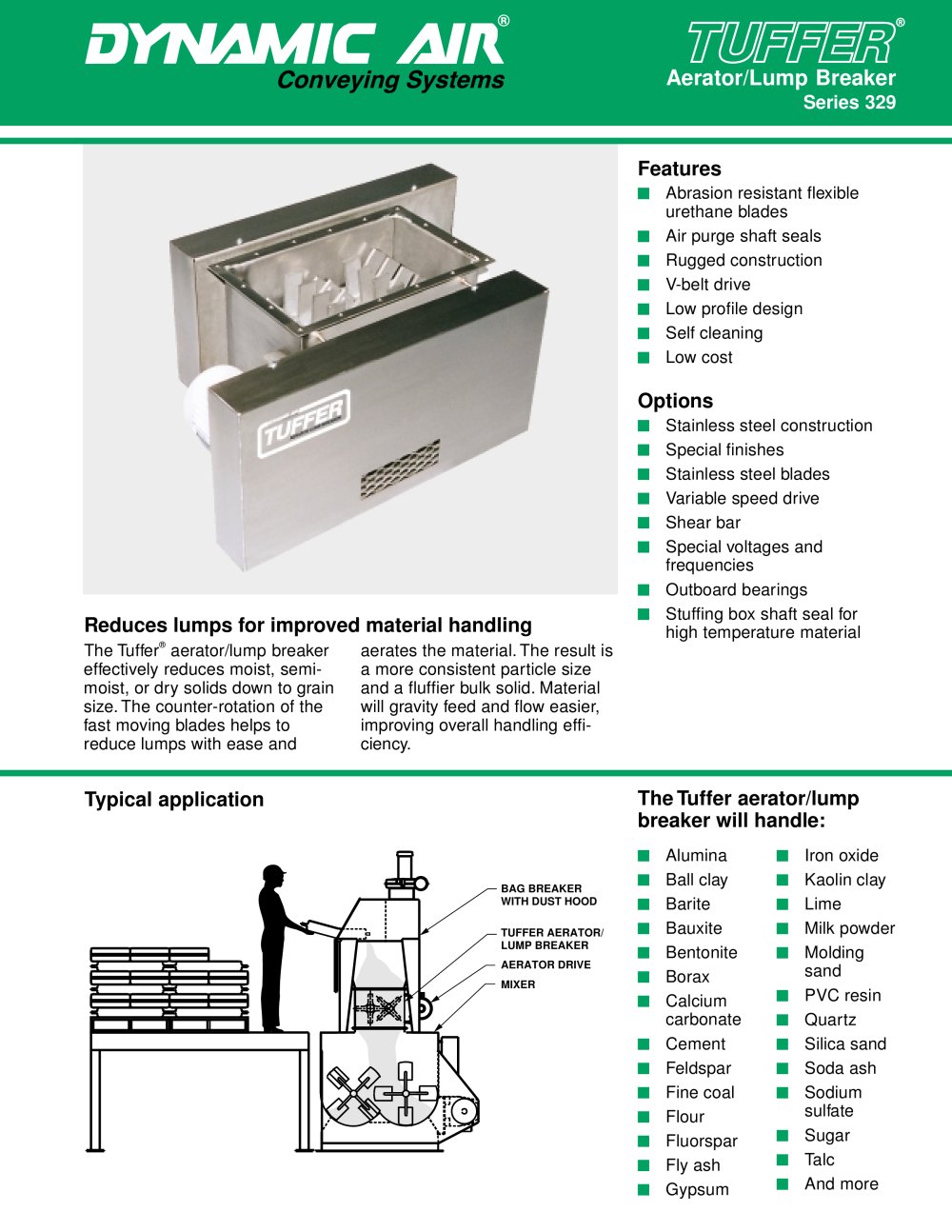

Tuffer™ Aerator/Lump Breaker  Series 329-1

Abrasion resistant flexible urethane blades Air purge shaft seals Rugged construction V-belt drive Low profile design Self cleaning Low cost > Stainless steel construction Special finishes Stainless steel blades Variable speed drive Shear bar Special voltages and frequencies Outboard bearings > Stuffing box shaft seal for high temperature material The Tuffer > aerator/lump breakereffectively reduces moist, semi- moist, or dry solids down to grain size. The counter-rotation of the fast moving blades helps to reduce lumps with ease andaerates the material. The result isa more consistent particle size and a fluffier bulk solid. Material will gravity feed and flow easier, improving overall handling effi- ciency. > Alumina Iron oxide Ball clay Kaolin clay Barite Lime Bauxite Milk powder Bentonite Molding sand > MIXERAERATOR DRIVETUFFER AERATOR/LUMP BREAKERBAG BREAKER WITH DUST HOOD Borax Calciumcarbonate PVC resin Quartz Cement Silica sand Feldspar Soda ash Fine coal Sodium sulfate Flour Fluorspar Sugar Fly ash Talc Gypsum And more >
