Dynabrade Right Angle Mini-Orbital Sander

Dynabrade Right Angle Mini-Orbital Sander

Product catalog summary

Overview: The Dynabrade Right Angle Mini-Orbital Sander is designed for efficient removal of dust nibs and defects, particularly on gelcoat and clearcoat paint systems. It features a lightweight design for operator comfort and is available in both front and rear exhaust models.

Specifications:

Motor: .4 hp (298 W) air motor
Speed: 12,000 or 15,000 RPM depending on the model
Orbit: 1/8" (3 mm) orbital action
Sound Level: 79-85 dB
Weight: 1.4-1.6 lb (0.6-0.7 kg)

Models:

Model 58037: Front exhaust, 12,000 RPM, includes 1-1/4" rubber sanding pad
Model 58039: Rear exhaust, 12,000 RPM, includes 1-1/4" rubber sanding pad
Model 58038: Front exhaust, 12,000 RPM, includes 1-1/4" foam-face sanding pad
Model 58034: Rear exhaust, 12,000 RPM, includes 1-1/4" foam-face sanding pad
Model 58035: Front exhaust, 15,000 RPM, includes 1-1/4" vinyl-face sanding pad

Abrasive Discs: Available in various grits (80, 120, 180, 220, 1000) with PSA (adhesive-backed) options.

Accessories:

Gear Oil (95848) and Push-Type Grease/Oil Gun (95541) included for lubrication
Optional Speed Control Dial (95745) available
Various sanding pads available for different applications

Contact Information: Dynabrade, Inc. offers contact details for their U.S., International, European, and Brazilian offices for further inquiries and support.

Catalog excerpts

Dynabrade Right Angle Mini-Orbital Sander-1

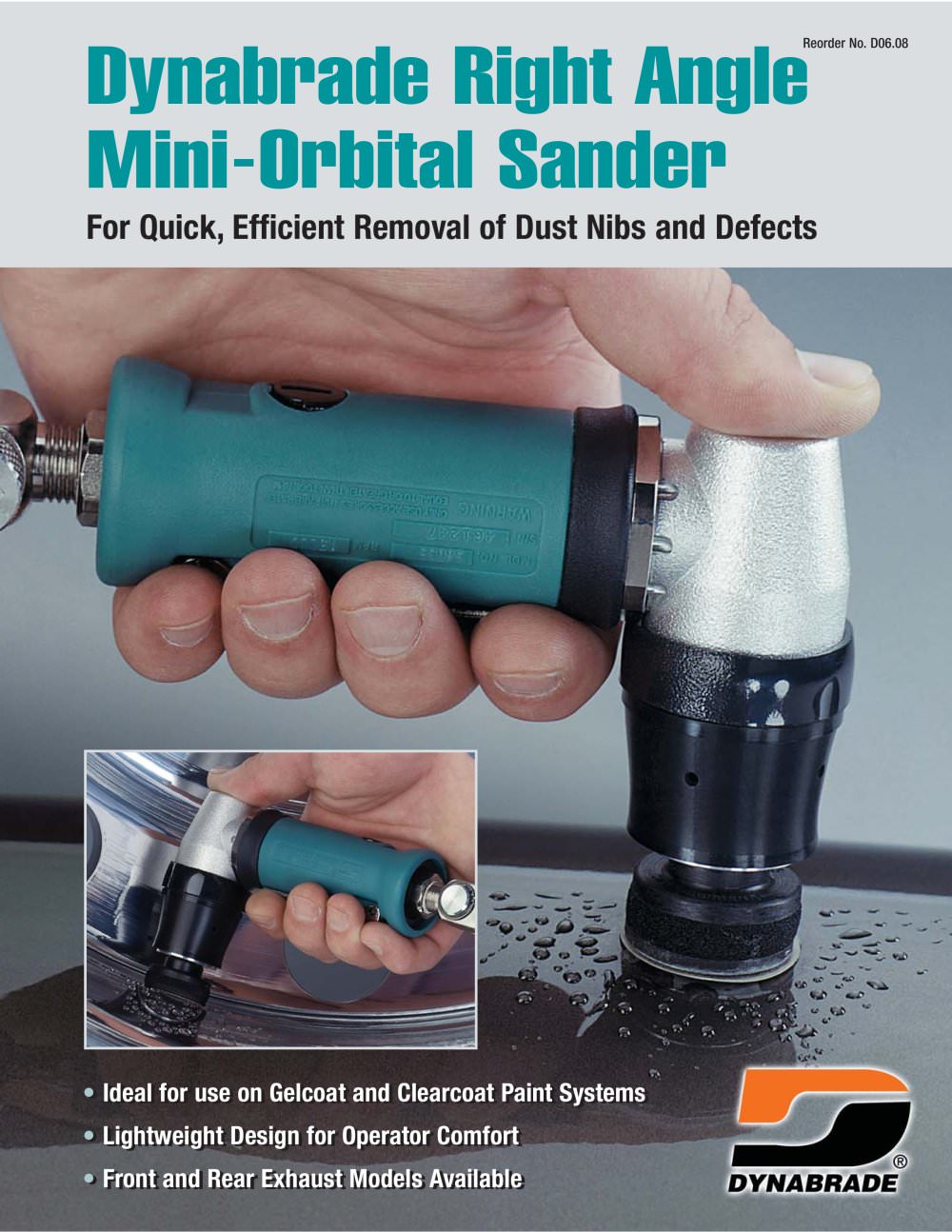

Reorder No. D06.08 Dynabrade Right Angle Mini-Orbital Sander For Quick, Efficient Removal of Dust Nibs and Defects • Ideal for use on Gelcoat and Clearcoat Paint Systems • Lightweight Design for Operator Comfort • Front and Rear Exhaust Models Available

Open the catalog to page 1

Dynabrade Right Angle Mini-Orbital Sander-2

COATED ABRASIVE DISCS 1-1/4" (32 mm) Diameter • PSA (Adhesive-Backed). Right Angle Mini-Orbital Sander Part Aluminum Silicon No. Oxide Carbide Grit 93191 . 1,000 93280 . 80 93281 . 120 93283 . 180 93284 . 220 Model 58037 Front Exhaust Model 58039 Rear Exhaust • Tool runs at 12,000 RPM and includes 1-1/4" (32 mm) diameter rubber sanding pad (54018). Also accepts optional 3/4" (19 mm) diameter rubber sanding pad (54017). Model 58038 Front Exhaust Model 58034 Rear Exhaust • Tool runs at 12,000 RPM and includes 1-1/4" (32 mm) diameter locking-type foam-face sanding pad (54031). Also accepts optional...
