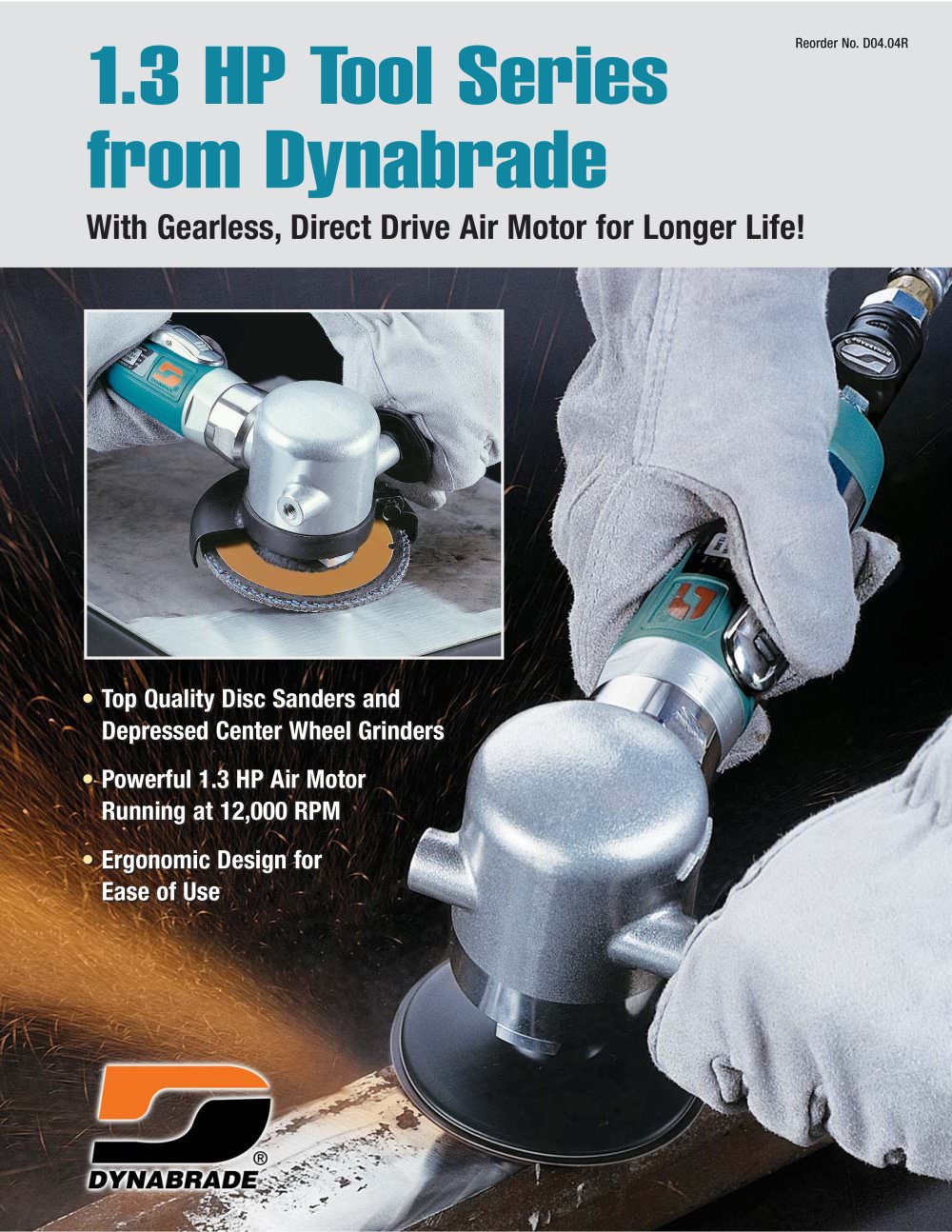

Reorder No. D04.04R 1.3 HP Tool Series from Dynabrade With Gearless, Direct Drive Air Motor for Longer Life! • Top Quality Disc Sanders and Depressed Center Wheel Grinders • Powerful 1.3 HP Air Motor Running at 12,000 RPM • Ergonomic Design for Ease of Use

Dynabrade’s NEW 1.3 HP Tool Series • Powerful 1.3 HP Air Motor For fast, efficient grinding and sanding. Enables the operator to apply more pressure to the surface, for faster cut rate. • Gearless, Direct Drive Motor (12,000 RPM) Tools have no gears to grease, so maintenance time is reduced. Longer tool life is assured – Dynabrade’s 1.3 HP tools are still running while competitive tools are being repaired! • Lower Vibration Levels Smooth-running tools can be used for longer periods of time. Reduced vibration levels also help reduce work-related injuries. • Vibration Dampening Side Handle 53209...

1.3 HP Depressed Center Wheel Grinders Fast Weld and Stock Removal • Heavy Deburring • Remove Rust and Scale 1.3 HP Disc Sanders Grind Sheet Metal, Marble, Granite, Fiberglass • Surface Condition • Sand, Deburr Metal Parts • Prepare Welds • Remove Paint, Rust • Finish Aluminum Model Motor Motor Sound Maximum Air Flow Hose I.D. Size Air Inlet Tool Weight Length Height Number HP (W) RPM Level CFM/SCFM (LPM) Inch (mm) Thread Thread Pound (kg) Inch (mm) Inch (mm) 51370 1.3 (969) 12,000 85 dB(A) 8/50 (1,416) 1/2 (13) 3/8" NPT 3/8"-24 Male 4.5 (2.0) 10-7/16 (265) 4-7/16 (112) 51371 1.3 (969) 12,000...

Dynabrade Accessories & Abrasives Coupler and Plug Assembly For Maximum Air Flow to Tool! Part No. 98265 • Provides up to TWICE the standard air flow – tool won’t be “starved.” • Offers convenient quick-connect and disconnect feature. • Recommended for use with all Dynabrade 1.3 HP tools. • Includes one 3/8" NPT female coupler and one 3/8" NPT male plug. Disc Sander Backing Pads Part No. 50288 – 4-1/2" (114 mm) Diameter Part No. 50296 – 5" (127 mm) Diameter • For use with 51371 Disc Sander. • Accept abrasive discs with 7/8" (22 mm) diameter center hole. • 5/8"-11 female thread; hard density....
