11'' Gear-Driven Sander from Dynabrade
4Pages

{{requestButtons}}

Catalog excerpts

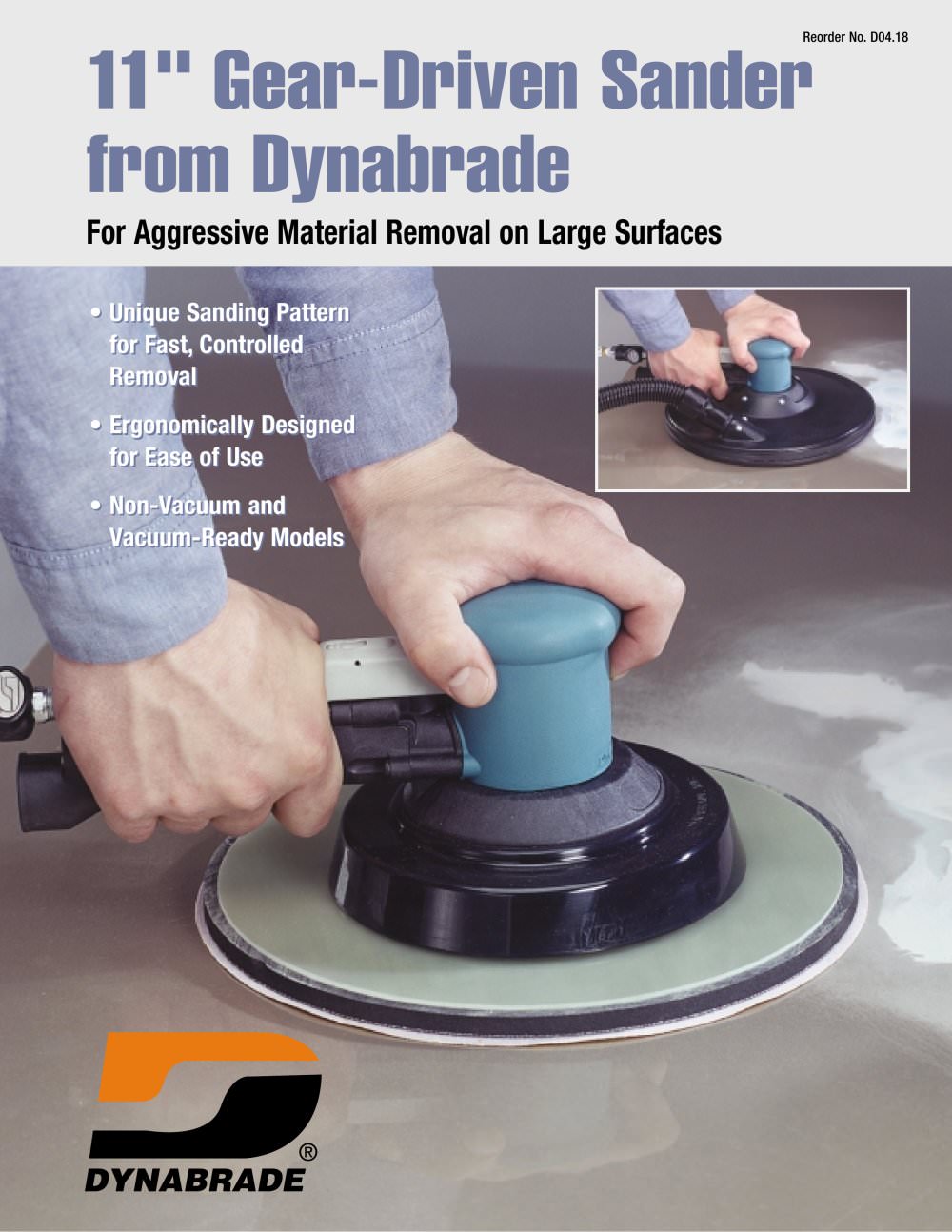

11'' Gear-Driven Sander from Dynabrade - 1

Reorder No. D04.18 11" Gear-Driven Sander from Dynabrade For Aggressive Material Removal on Large Surfaces • Unique Sanding Pattern for Fast, Controlled Removal • Ergonomically Designed for Ease of Use • Non-Vacuum and Vacuum-Ready Models

Open the catalog to page 1
11'' Gear-Driven Sander from Dynabrade - 2

Dynabrade’s NEW 11" Gear-Driven Sander Features & Benefits: • Powerful .45 HP (336 W) Air Motor High-quality, 950 RPM air motor offers power and efficiency. • Extra-Large 11" (279 mm) Work Area This tool covers the largest work area of any Dynabrade tool! • Unique Sanding Action for Aggressive Removal Epicycloidal sanding action is perfect for tackling tough removal challenges. • Easy Two-Handed Control Lightweight tool features long handle for additional comfort and control, especially when working in vertical positions. • Weight-Mated Sanding Pad for Reduced Vibration Tool includes 56231...

Open the catalog to page 2
11'' Gear-Driven Sander from Dynabrade - 3

11" Random Orbital Sander Model Motor Motor Orbit Pad Dia. Maximum Air Flow Weight Length Height Number Non-Vac Vac HP (W) RPM Pattern Inch (mm) CFM/SCFM (LPM) Pound (kg) Inch (mm) Inch (mm) 58040 . .45 (336) 950 Epicycloidal 11 (279) 3/23 (651) 9.1 (4.1) 14-1/8 (359) 5-5/8 (143) 58041 . .45 (336) 950 Epicycloidal 11 (279) 3/23 (651) 9.1 (4.1) 14-1/8 (359) 5-5/8 (143) Additional Specifications: Air Pressure 90 PSIG (6.2 Bar) • 5/8"-11 Male Spindle • Hose I.D. 1/4" (6 mm) • Air Inlet Thread 1/4" NPT • Includes 11" (279 mm) dia. hook-face sanding pad (56231), for use with non-vacuum hook-face...

Open the catalog to page 3
11'' Gear-Driven Sander from Dynabrade - 4

Visit our Website for more Tools and Related Accessories www.dynabrade.com ©DYNABRADE, INC., 2004 • PRINTED IN U.S.A. D04.18_Rev. 1_7/04 DYNABRADE, INC. 8989 Sheridan Drive • Clarence, New York 14031-1490 • Phone: (716) 631-0100 Fax: 716-631-2073 • US Consumers Call Toll Free: 1-800-828-7333 DYNABRADE INTERNATIONAL 8989 Sheridan Drive • Clarence, New York 14031-1490 • Phone: (716) 631-0100 Fax: 716-631-2524 • Canadian Consumers Call Toll Free: 1-800-344-1488 DYNABRADE EUROPE S.à r. l. Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg Phone: +352 768 494 1 • Fax: +352 768 495 DYNABRADE...

Open the catalog to page 4
