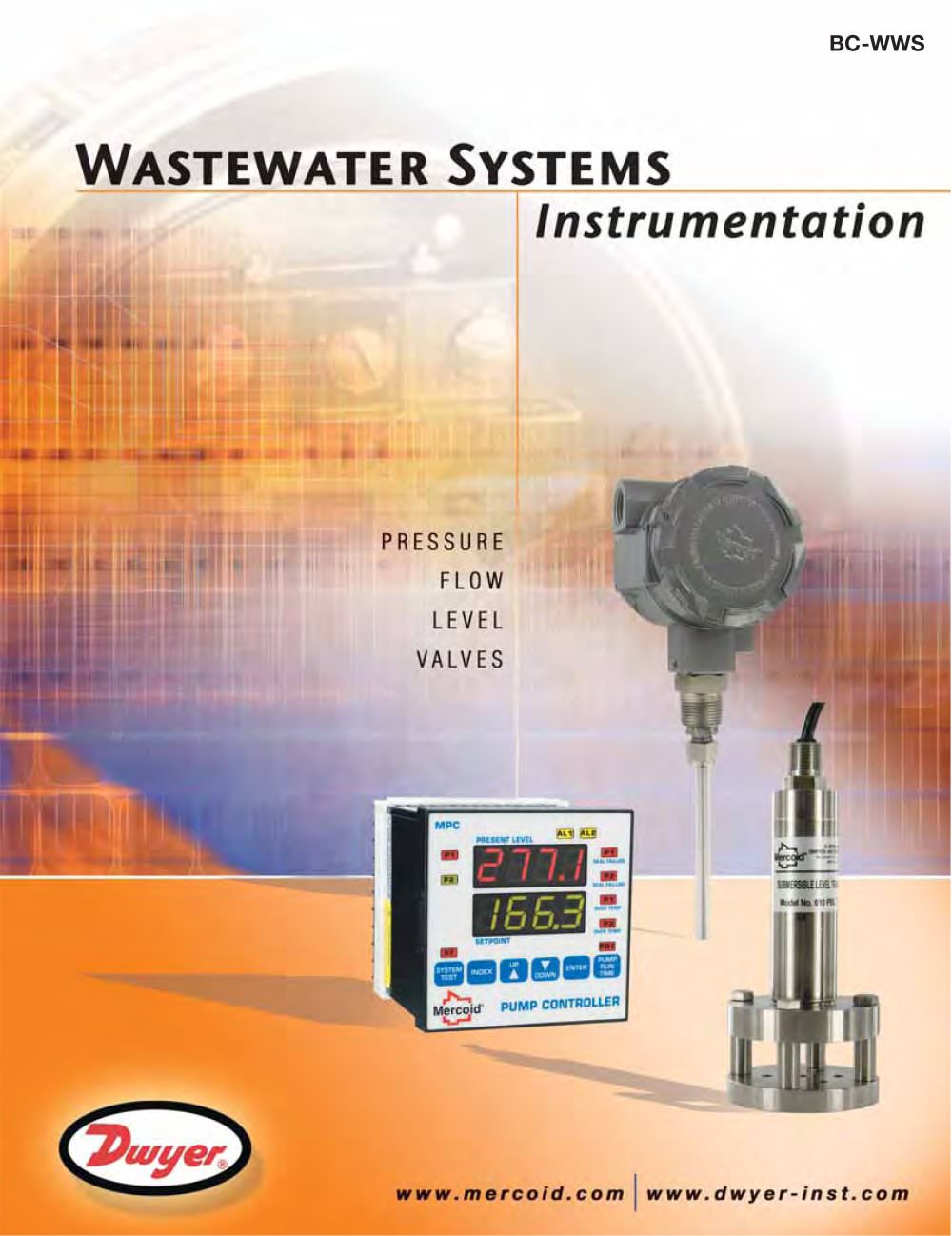

Wastewater Systems Brochure (BC-WWS)

Wastewater Systems Brochure (BC-WWS)

Product catalog summary

Overview: This document from Dwyer Instruments, Inc. provides technical specifications and applications for various instruments and controllers used in wastewater treatment plants. It covers chemical treatment applications, pressure and level monitoring, flow monitoring, pump control applications, and intrinsically safe barriers.

Chemical Treatment Applications: The document highlights pressure monitoring tools such as the TEFG Molded PVDF Pressure Gage and PPG Molded Polypropylene Pressure Gage.

Level Monitoring: Products include the ULT Ultrasonic Level Transmitter and the PBLT2/PBLTX Hydrostatic Level Transmitter for accurate level measurement in lift stations.

Flow Monitoring: Various flowmeters are mentioned, including the SFI-800 Sight Flow Indicator/Transmitter and VAT Variable Area Fluoropolymer Flowmeter.

Valves: Details several types of valves like TBV/TBV2 True Union PVC/CPVC Ball Valves and SCV True Union PVC/CPVC Spring Check Valve.

Pump Control Applications: Includes flow proving and flow switches such as the V4 Vane Operated Flow Switch, and pressure monitoring tools like the 626/628 Single Pressure Transmitter and EDA Indicating Pressure Switch and Transmitter.

Wastewater Process Applications: Focuses on flow and level monitoring with tools like the PUX Portable Transit Time Ultrasonic Flowmeter.

Lift Station Applications: Discusses level switches and pump controllers, including the Series FSW Free Floating Level Switch and Series MPC Pump Controller. It also covers seal failure/leak detection and over-temperature detection systems.

Intrinsically Safe Barriers: Provides safety solutions for hazardous areas with products like the MTL5041/5045 Galvanic Isolator and MTL7706/7787 Zener Barrier.

Process Flow: Outlines the wastewater treatment process, including stages such as bar screening, grit tank, sedimentation, aeration, secondary clarification, disinfection, and final effluent treatment.
