Dust Collection & Pneumatic Conveying Brochure (BC-DCPC)

Product catalog summary

Overview: This document is a brochure from Dwyer Instruments, Inc., detailing their range of products for dust collection and pneumatic conveying applications. The brochure highlights various instruments and components designed to optimize air filtration and material handling systems.

Key Product Categories:

Diaphragm Pulse Valves (Series DCV/RDCV): Used for air pulsing filters, available with remote or integral coils, and NPT or coupling connections, ranging from 3/4˝ to 3˝.
Pilot Solenoid Valves (Series RSV): Designed for triggering remote coil diaphragm valves, available as individual units or prepackaged enclosures.
Digital Timers/Controllers (Series DCT1000, DCT500A/600): Control pulsing of filters for on-demand and continuous cleaning, with optional pressure modules and capabilities for 4 to 255 channels.
Pressure Monitoring Devices: Includes differential pressure gages (Series 2000 Magnehelic®), single pressure gages (Series SGT), pressure switch/gages (Series DH3 Digihelic®), and pressure transmitters (Series 616, 626, 628) for monitoring air filter pressure drop and compressed air lines.
Level Controls (Series PLS, TFLS, CLS2): Used for monitoring product build-up and the status of bins, transporters, receivers, and silos. Features include tuning fork and capacitive level switches.
Particulate Sensors/Transmitters (Series PMS/PMT): For monitoring emissions and detecting broken filters.
Valves and Connectors: Includes ball valves (Series BV2MB) for shutoff of compressed air lines, butterfly valves (Series BFV) for flow control, and bulkhead connectors (Series BHC) for blow tube installation.
Pneumatic Vibrators: Used for dislodging material jams, bridges, or clogs.

Applications:

Dust Collection: Comprehensive solutions for dust collector systems, including pulse valves, timer boards, and pressure gages.
Pneumatic Conveying: Solutions for both dense and dilute phase conveying applications, featuring level controls, pulse valves, and particulate transmitters.

Additional Information: The brochure emphasizes the economic benefits of vendor and product consolidation, offering quality products at competitive prices. For more information, customers are directed to visit the website or request a catalog via email.

Catalog excerpts

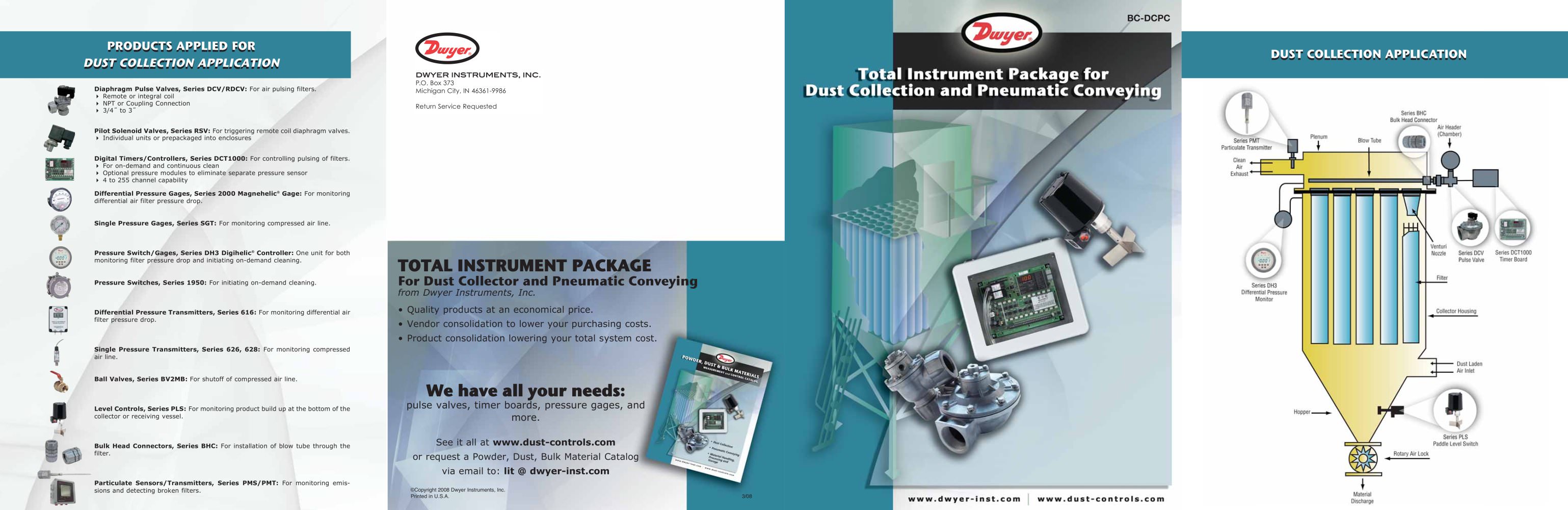

Dust Collection & Pneumatic Conveying Brochure (BC-DCPC)-1

valve ofc_obc:ofc/obc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.50pt "Arial", sans-serif; } .font3 { font:39.00pt "Impact", sans-serif; } .font4 { font:9.00pt "Verdana", sans-serif; } .font5 { font:10.00pt "Verdana", sans-serif; } .font6 { font:13.00pt "Verdana", sans-serif; } Diaphragm Pulse Valves, Series DCV/RDCV: For air pulsing filters. ► Remote or intgral coil ► NPT or Coupling Connection ► 3/4" to 3" DWYER INSTRUMENTS, INC. P.O. Box 373 Michigan City, IN 46361-9986 Return Service Requested Total Instrument Package for Dust Collection and Pneumatic Conve Pilot Solenoid Valves, Series RSV: For triggering remote coil diaphragm valves. ► Individual units or prepackaged into enclosures Quality products at an economical price. 镕 Vendor consolidation to lower your purchasing costs. Product consolidation lowering your total system cost. We have all your needs: pulse valves, timer boards, pressure gages, and more. See it all at www.dust-controls.com or request a Powder, Dust, Bulk Material Catalog via email to: lit @ dwyer-inst.com ©Copyright 2008 Dwyer Instruments, Inc. Printed in U.S.A. ^^^^^^^^^^H www.dwyer-inst.com www.dust-controls.cam Digital Timers/Controllers, Series DCT1000: For controlling pulsing of filters. ► For on-demand and continuous clean ► Optional pressure modules to eliminate separate pressure sensor ► 4 to 255 channel capability Differential Pressure Gages, Series 2000 Magnehelic® Gage: For monitoring differential air filter pressure drop. Single Pressure Gages, Series SGT: For monitoring compressed air line. OC՛i Pressure Switch/Gages, Series DH3 Digihelic® Controller: One unit for both monitoring filter pressure drop and initiating on-demand cleaning. Pressure Switches, Series 1950: For initiating on-demand cleaning. I Differential Pressure Transmitters, Series 616: For monitoring differential air filter pressure drop. Single Pressure Transmitters, Series 626, 628: For monitoring compressed air line. Ball Valves, Series BV2MB: For shutoff of compressed air line. Level Controls, Series PLS: For monitoring product build up at the bottom of the collector or receiving vessel. Bulk Head Connectors, Series BHC: For installation of blow tube through the filter. Particulate Sensors/Transmitters, Series PMS/PMT: For monitoring missions and detecting broken filters.

Open the catalog to page 1

Dust Collection & Pneumatic Conveying Brochure (BC-DCPC)-2

valve ofc_obc:ofc/obc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:3.60pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:20.00pt "Arial", sans-serif; } .font6 { font:27.00pt "Arial", sans-serif; } .font7 { font:31.00pt "Arial", sans-serif; } .font8 { font:53.00pt "Arial", sans-serif; } .font9 { font:39.00pt "Impact", sans-serif; } .font10 { font:9.00pt "Verdana", sans-serif; } DENSE PHASE TE PHASE...
