Multi-Purpose Cassette System (S1-Porter)

Product catalog summary

Overview
The DUX S1-Porter Multi-Purpose Cassette System is designed for efficient mine transport, offering flexibility and cost-effectiveness. It allows a single operator to manage loading and unloading of cassettes quickly and safely, reducing idle equipment time compared to conventional systems.

Specifications

Weight and Dimensions: Empty weight is 18,000 lbs (8,165 kg) with a payload capacity of 20,000 lbs (9,072 kg). Dimensions with a flatbed cassette are 24'-1" in length, 7'-0" in width, and 7'-0" in height.
Engine: Powered by a Cummins QSB 4.5 L, EPA Tier 3 engine with 148 HP at 2300 RPM.
Transmission: Features a Dana/SOH transmission with integrated torque converter, offering 3 speeds in both forward and reverse.
Brakes and Steering: Equipped with 4-wheel power multi-internal wet disc brakes and articulated frame hydraulic power steering.
Hydraulic System: Includes heavy-duty PTO driven gear-type pumps and a 10-micron inline high-pressure filter.
Electrical System: 24-volt system with a 60 amp alternator, sealed junction box, and high-intensity halogen lights.

Multi-Purpose Cassettes
The system supports various cassettes including flatbed, crane boom, fuel/lube, personnel, water, and maintenance cassettes. Each cassette is equipped with hydraulic stabilizers and quick connector couplings.

Flatbed Cassette: 7-ft wide x 12-ft long with steel floor and guide rails.
Crane Boom Cassette: Includes a HIAB model 090AW crane with a 4.5-tonne lift capacity.
Fuel/Lube Cassette: Contains hose reels, dispenser pumps, and a compressor with a total capacity of 590 US gallons.
Personnel Cassette: Can accommodate 16 passengers.
Water Cassette: 1,500 US gallons capacity with a hydraulic motor-driven pump.
Maintenance Cassette: Mobile service station with workbench, storage, and optional crane.

Options and Standards
Optional features include different engines, FOPS/ROPS canopy, automatic lubrication system, and video systems. DUX trucks meet CAN/CSA, MSHA (US), and EC (Europe) standards.

Catalog excerpts

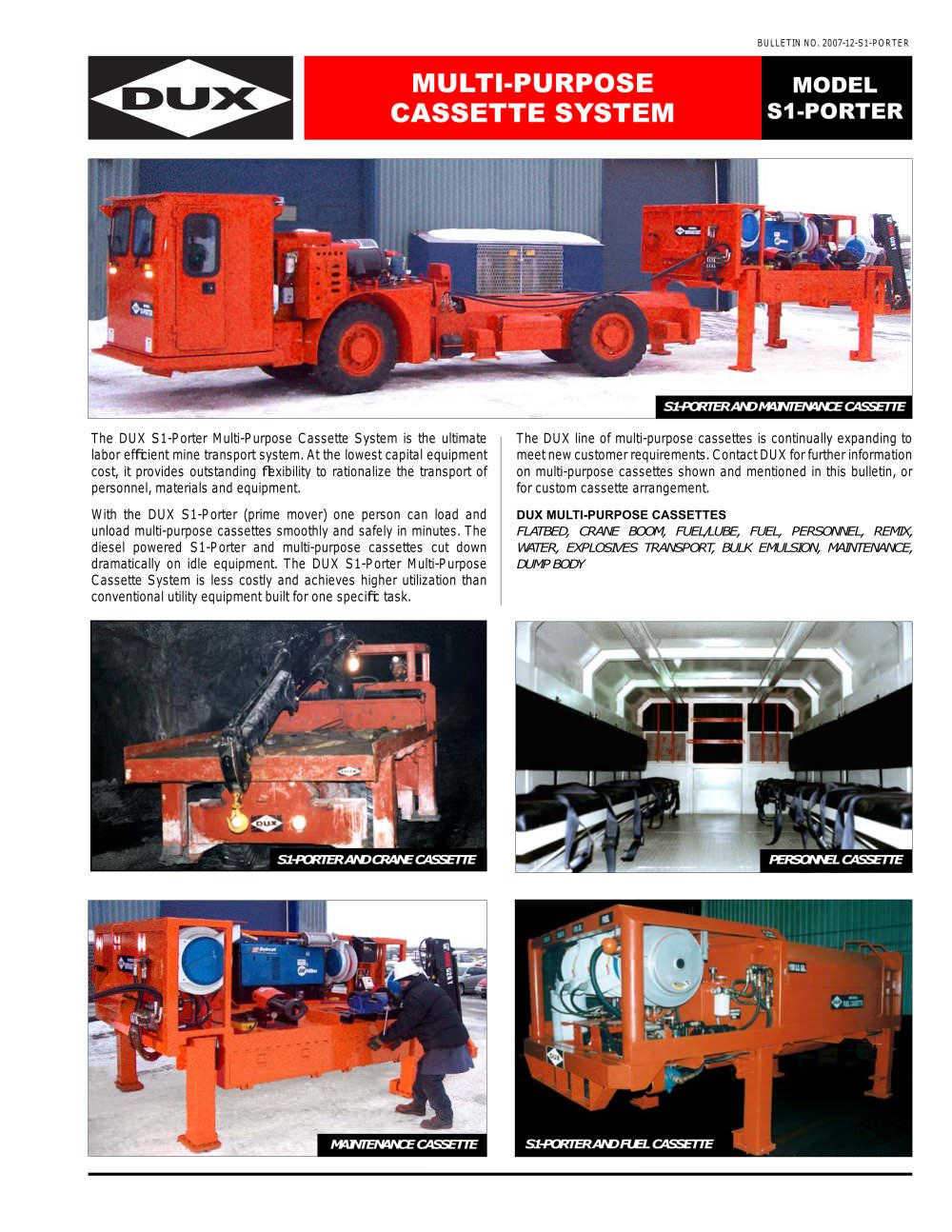

Multi-Purpose Cassette System (S1-Porter)-1

BULLETIN NO. 2007-12-S1-PORTER MODEL S1-PORTER MULTI-PURPOSE CASSETTE SYSTEM S1-PORTER AND CRANE CASSETTE PERSONNEL CASSETTE The DUX S1-Porter Multi-Purpose Cassette System is the ultimate labor effi cient mine transport system. At the lowest capital equipment cost, it provides outstanding fl exibility to rationalize the transport of personnel, materials and equipment. With the DUX S1-Porter (prime mover) one person can load and unload multi-purpose cassettes smoothly and safely in minutes. The diesel powered S1-Porter and multi-purpose cassettes cut down dramatically on idle equipment. The DUX S1-Porter Multi-Purpose Cassette System is less costly and achieves higher utilization than conventional utility equipment built for one specifi c task. The DUX line of multi-purpose cassettes is continually expanding to meet new customer requirements. Contact DUX for further information on multi-purpose cassettes shown and mentioned in this bulletin, or for custom cassette arrangement. DUX MULTI-PURPOSE CASSETTES FLATBED, CRANE BOOM, FUEL/LUBE, FUEL, PERSONNEL, REMIX, WATER, EXPLOSIVES TRANSPORT, BULK EMULSION, MAINTENANCE, DUMP BODY S1-PORTER AND MAINTENANCE CASSETTE MAINTENANCE CASSETTE S1-PORTER AND FUEL CASSETTE S1-PORTER AND MAINTENANCE CASSETTE
