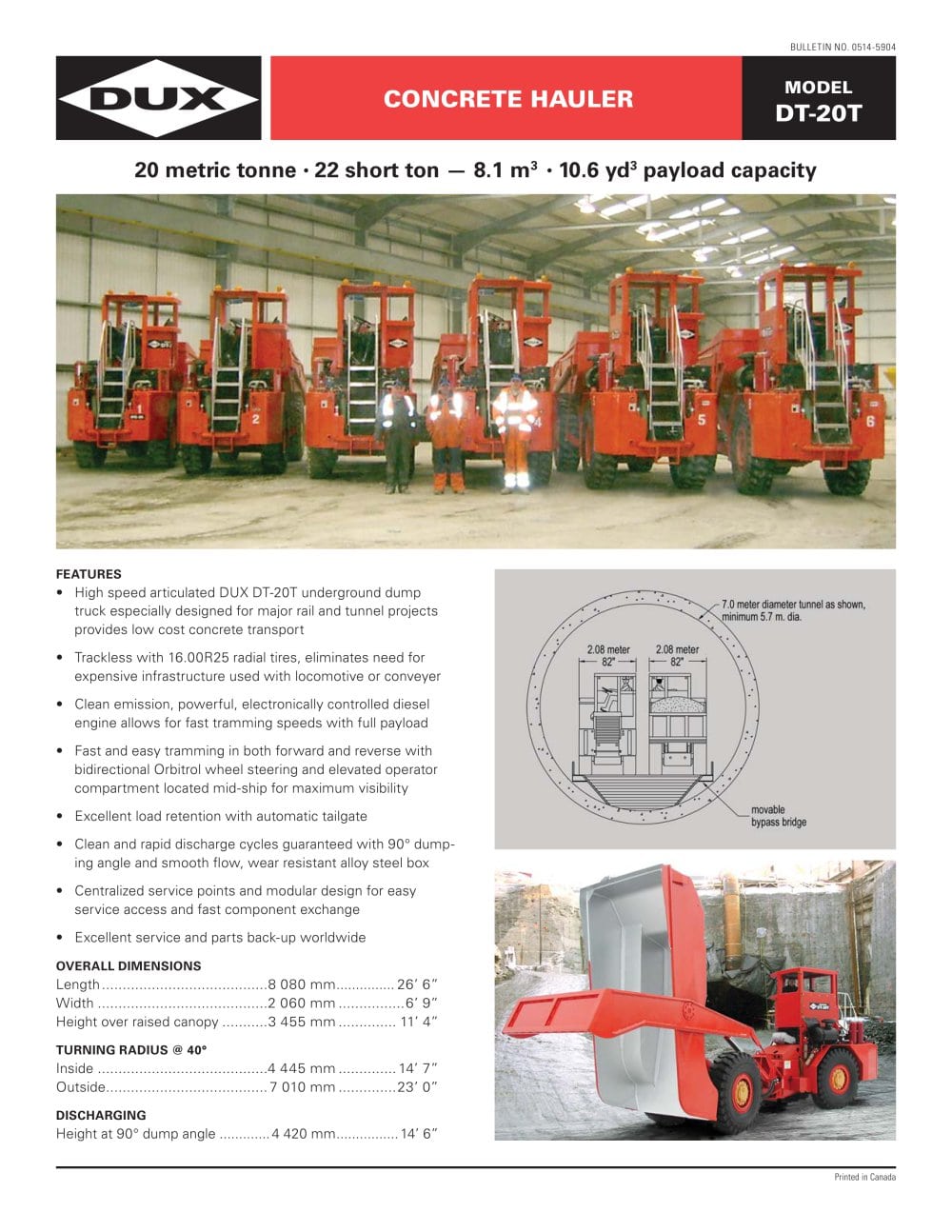

CONCRETE HAULER 20 metric tonne • 22 short ton — 8.1 m3 • 10.6 yd3 payload capacity • High speed articulated DUX DT-20T underground dump truck especially designed for major rail and tunnel projects provides low cost concrete transport • Trackless with 16.00R25 radial tires, eliminates need for expensive infrastructure used with locomotive or conveyer • Clean emission, powerful, electronically controlled diesel engine allows for fast tramming speeds with full payload • Fast and easy tramming in both forward and reverse with bidirectional Orbitrol wheel steering and elevated operator compartment located mid-ship for maximum visibility • Excellent load retention with automatic tailgate • Clean and rapid discharge cycles guaranteed with 90° dumping angle and smooth ow, wear resistant alloy steel box • Centralized service points and modular design for easy service access and fast component exchange • Excellent service and parts back-up worldwide OVERALL DIMENSIONS

DUX Model DT-20T Concrete Hauler TECHNICAL SPECIFICATIONS* Engine Operator Compartment – Raised for maximum visibility – Side seated for bi-directional operation – Heavy-duty adjustable suspension seat with arm rests and retractable seat belts – All controls and gauges located within easy reach and view of operator Transmission with Integrated Torque Converter – Bridgestone 16.00R25, 2*, VRLS tubeless, radial Hydraulic System – Heavy-duty double acting protected steering cylinders (2) with hard chrome plated stems – Heavy-duty double acting two-stage fully protected telescopic dump cylinders...
