Catalog excerpts

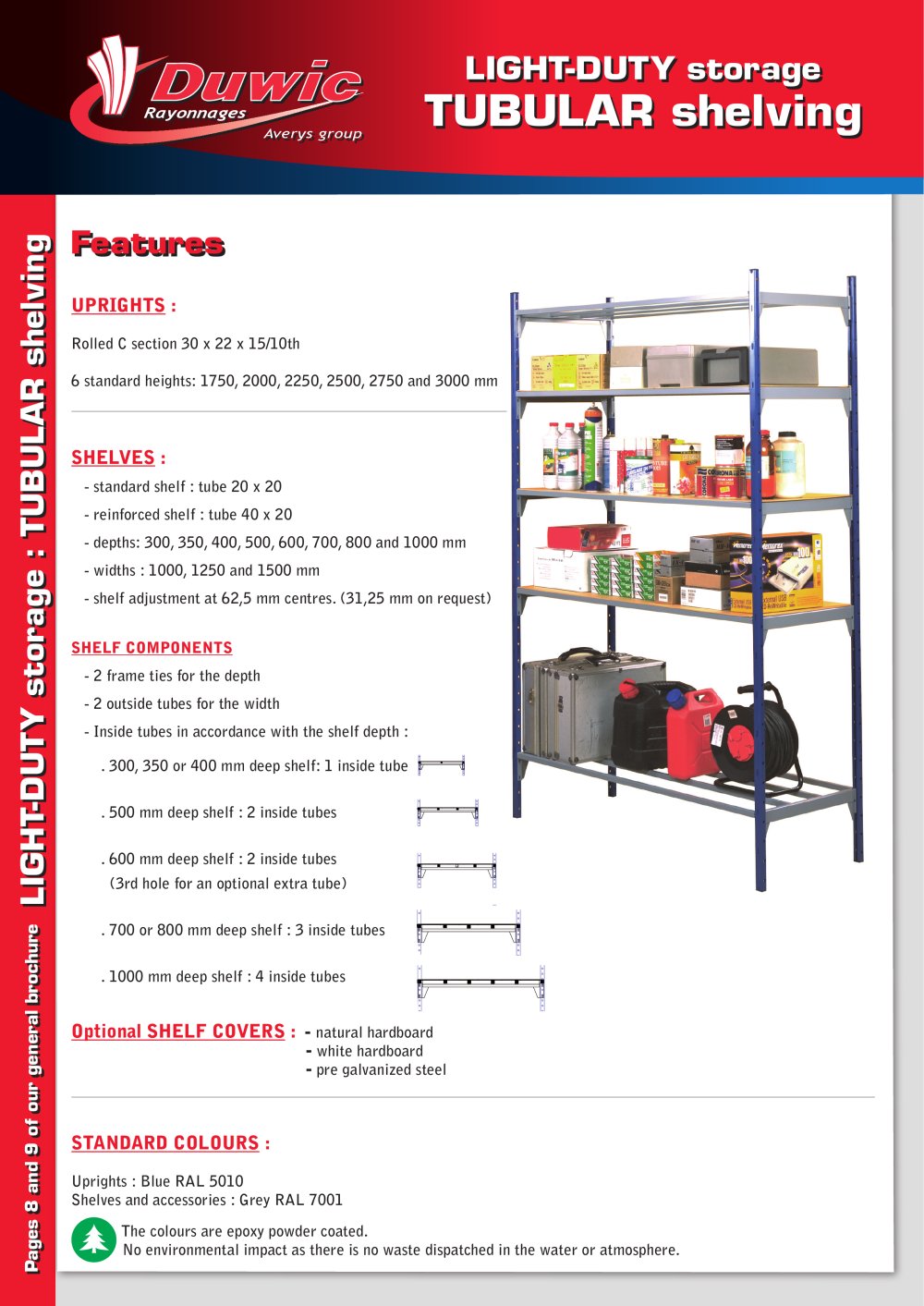

tubular shelving - 1

Rayonnage autostable profil Rolled C section 30 x 22 x 15/10th 6 standard heights: 1750, 2000, 2250, 2500, 2750 and 3000 mm > - standard shelf : tube 20 x 20 - reinforced shelf : tube 40 x 20 - depths: 300, 350, 400, 500, 600, 700, 800 and 1000 mm - widths : 1000, 1250 and 1500 mm - shelf adjustment at 62,5 mm centres. (31,25 mm on request) SHELF COMPONENTS - 2 frame ties for the depth > storage : tuBuLAR shelving - 2 outside tubes for the width - Inside tubes in accordance with the shelf depth : . 300, 350 or 400 mm deep shelf: 1 inside tube . 500 mm deep shelf : 2 inside tubes . 600 mm deep shelf : 2 inside tubes (3rd hole for an optional extra tube) > Light-duty . 700 or 800 mm deep shelf : 3 inside tubes . 1000 mm deep shelf : 4 inside tubes > Uprights : Blue RAL 5010 Shelves and accessories : Grey RAL 7001 The colours are epoxy powder coated. No environmental impact as there is no waste dispatched in the water or atmosphere. > Pages 8 and 9 of our general brochure size="-2">

Open the catalog to page 1
tubular shelving - 2

Outside tube Frame tie Inside tube Back cladding in natural or white chipboard or pre galvanized steel Side cladding in natural or white hardboard or Frame tie pre galvanized steel Divider Upright perforated at 62,5 mm centres (31,25 mm on request). Drip tray Shelf adjustment at 62,5 mm or 31,25 mm centres. Bin front Min interval : 125 mm. Hardboard Base plinth Upright connection Steel foot plate Tamdem post bolts Splice section Plastic foot Double sided shelving >

Open the catalog to page 2
