Light-Duty Storage: Rolled Edge Shelving

Rolled Edge Frames:

Available in painted or zinc-coated finishes.
Heights: 2000 mm, 2200 mm, and 2500 mm.

Shelves:

Widths: 900 mm, 1000 mm, and 1250 mm.
Available in painted or zinc-coated steel.

Solid Shelves:

Depth: 360 mm.
Thickness: 8/10th mm.

Perforated Shelves:

Depths: 300 mm, 360 mm, and 500 mm.
Thickness: 10/10th mm.

Standard Colors:

Rolled edge frames and shelves available in Beige RAL 1015, Blue RAL 5015, Grey RAL 7016, Light Grey RAL 7035, and zinc-coated steel.
Epoxy powder coating ensures no environmental impact.

Features:

Base plinth, end panel, shelf on clips, solid back cladding or bracing set.
Wire shelf divider, bin front, double doors (widths: 900 mm and 1000 mm), collapsible doors (width: 1250 mm).

Shelving Options:

Single or double-sided shelving.
Single-sided depth: Shelf depth + 20 mm.
Double-sided depth: 2 * Shelf depth + 40 mm.

Capacities:

Drawer unit, pull-out shelf, shelf adjustment at 25 mm centers.
Solid shelf capacity (8/10th mm thickness):

Width 900 mm: 120 kg, 1000 mm: 105 kg, 1250 mm: 75 kg.
Main uses: Suspended files, lying archive boxes.

Perforated shelf capacity (10/10th mm thickness):

Width 900 mm: 150 kg, 1000 mm: 135 kg, 1250 mm: 100 kg.
Main uses: Books, files, standing archive boxes, medical files.

Additional Information:

Can be erected on mobile bases.

Catalog excerpts

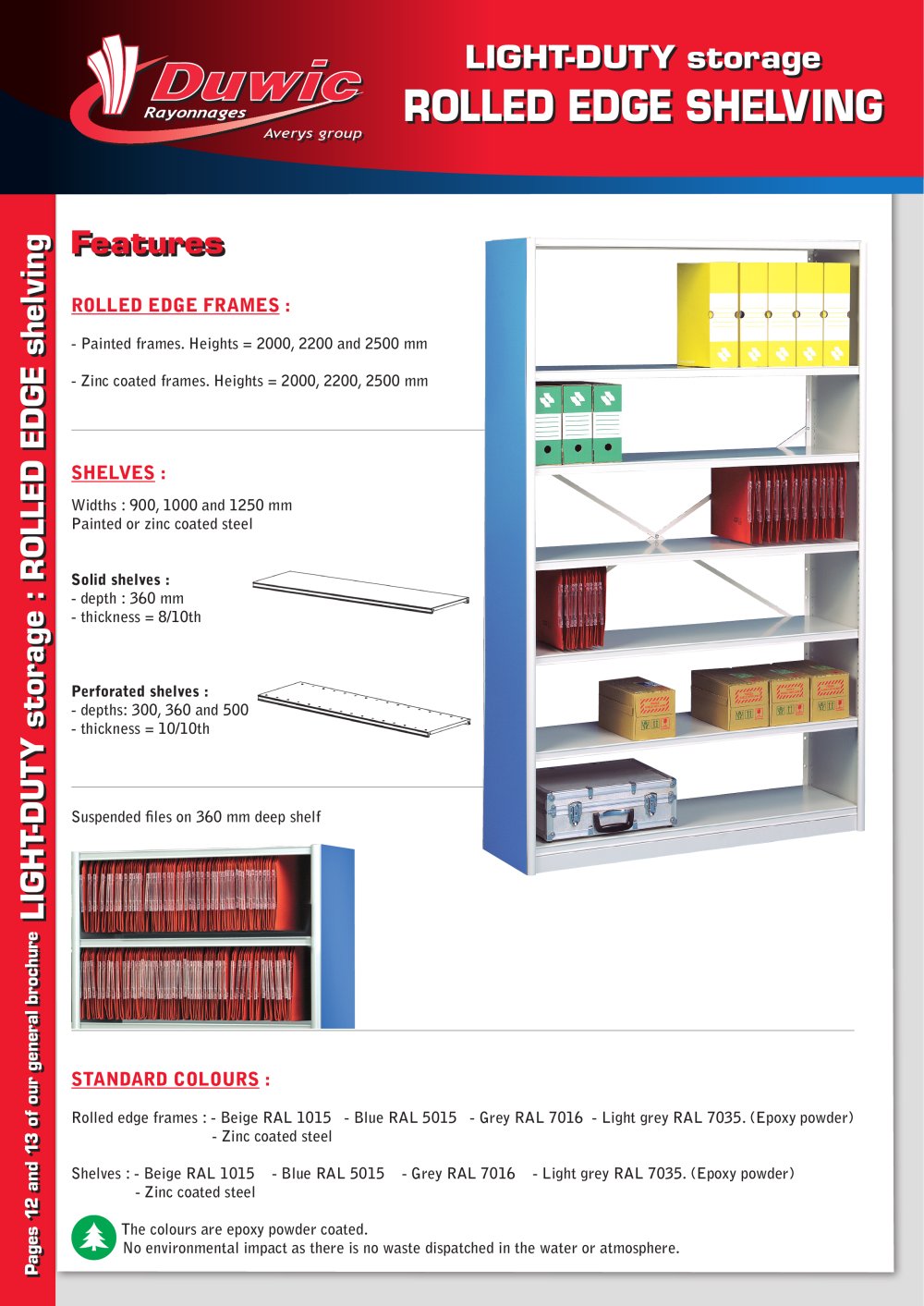

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:22.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:48.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:6.00pt "Georgia", serif; } .font5 { font:11.00pt "Georgia", serif; } .font6 { font:7.00pt "Microsoft Sans Serif", sans-serif; } .font7 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font8 { font:19.00pt "Microsoft Sans Serif", sans-serif; } .font9 { font:6.00pt "Tahoma", sans-serif; } .font10 { font:13.00pt "Tahoma", sans-serif; } LIGHT-DUTY storage rolled edge frames : Painted frames. Heights = 2000, 2200 and 2500 mm Zinc coated frames. Heights = 2000, 2200, 2500 mm Widths : 900, 1000 and 1250 mm Painted or zinc coated steel Solid shelves : depth : 360 mm thickness = 8/10 >- @ | 1 o L. "r u c 0) S) 3 O O T" ■o c (0 ai «- U) u (0 a

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Georgia", serif; } .font1 { font:6.00pt "Microsoft Sans Serif", sans-serif; } .font2 { font:7.00pt "Microsoft Sans Serif", sans-serif; } .font3 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font4 { font:13.00pt "Tahoma", sans-serif; } Solid back cladding or bracing set ^ Rolled edg Bin front-- Base plinth Double doors : width = 900 and 1000 mm Collapsible doors : width = 1250 mm single or double sided shelving : Single sided shelving Double sided shelving ě-1-D 30 40 n D D = Shelf depth + 20 mm D = 2 * Shelf depth...

Open the catalog to page 2
