RAP light duty shelving
Product catalog summary

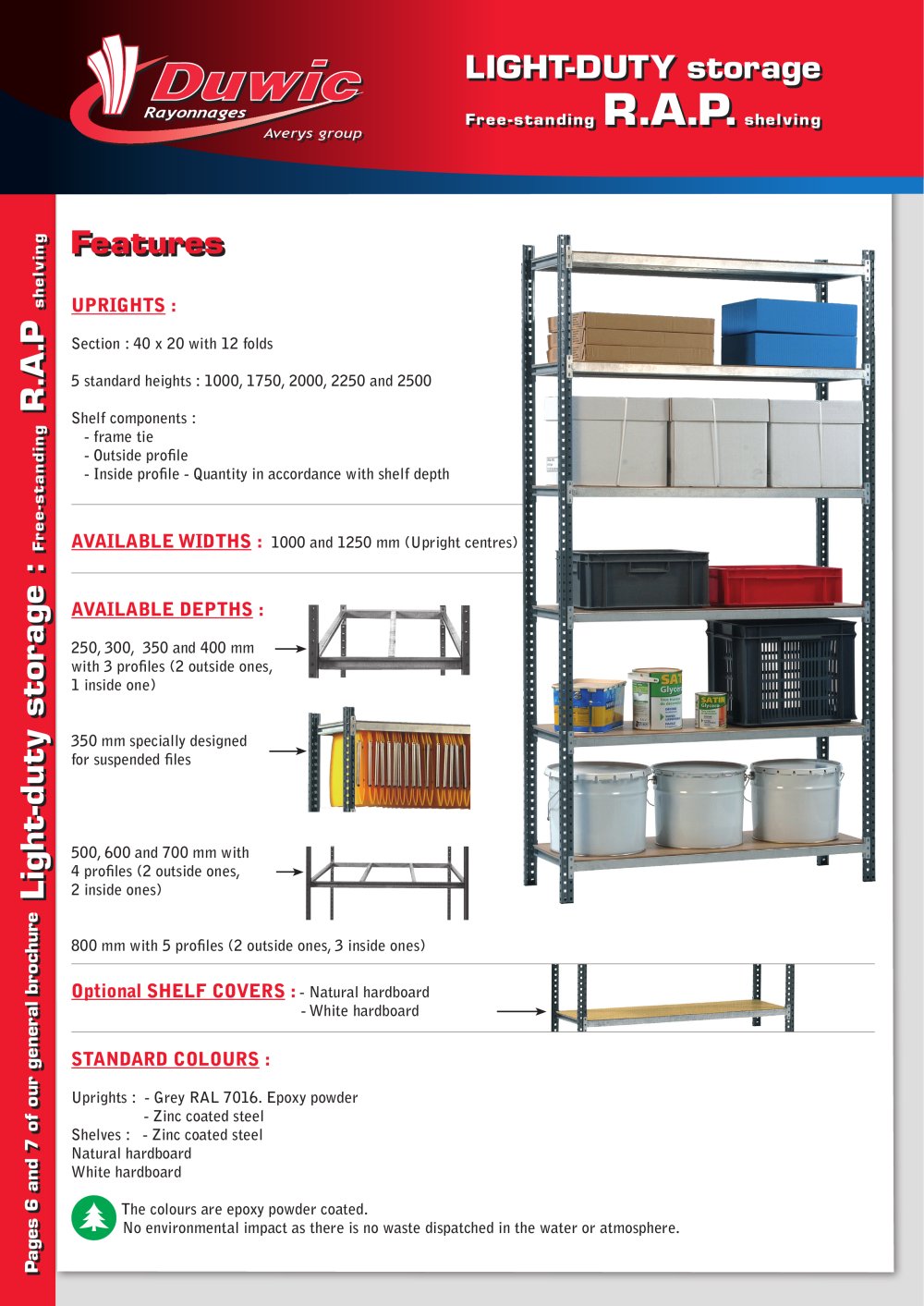

Light-Duty Storage: Free-Standing R.A.P Shelving
Specifications:
- Uprights: Section size 40 x 20 with 12 folds, available in heights of 1000, 1750, 2000, 2250, and 2500 mm.
- Shelf Components: Includes frame tie, outside profile, and inside profile, with quantities based on shelf depth.
- Available Widths: 1000 and 1250 mm (upright centers).
- Available Depths: 250, 300, 350, 400 mm with 3 profiles; 500, 600, 700 mm with 4 profiles; 800 mm with 5 profiles.
- Optional Shelf Covers: Natural hardboard and white hardboard.
- Standard Colors: Uprights in Grey RAL 7016 (epoxy powder) or zinc-coated steel; shelves in zinc-coated steel, natural or white hardboard.
Features:
- Outside profile for width and frame tie for depth.
- Inside profile with shelf adjustment at 25 mm centers, minimum interval of 75 mm.
- Connection design ensures strength and rigidity with tongue and slot design.
- Double-sided racks with tandem post bolts and splice section.
Capacities:
- Shelf Capacity (UDL): Varies by width and depth, e.g., 135 kg for 250-400 mm depth at 1000 mm width.
- Frame Capacity: Per pair of uprights, e.g., 1770 kg for 250 mm shelf adjustment.
Additional Components:
- Divider, end side cladding in white chipboard, hardboard, steel foot plate, plastic foot.
- Upright punched at 25 mm centers, can be erected on mobile bases.
