longspan shelving

Product catalog summary

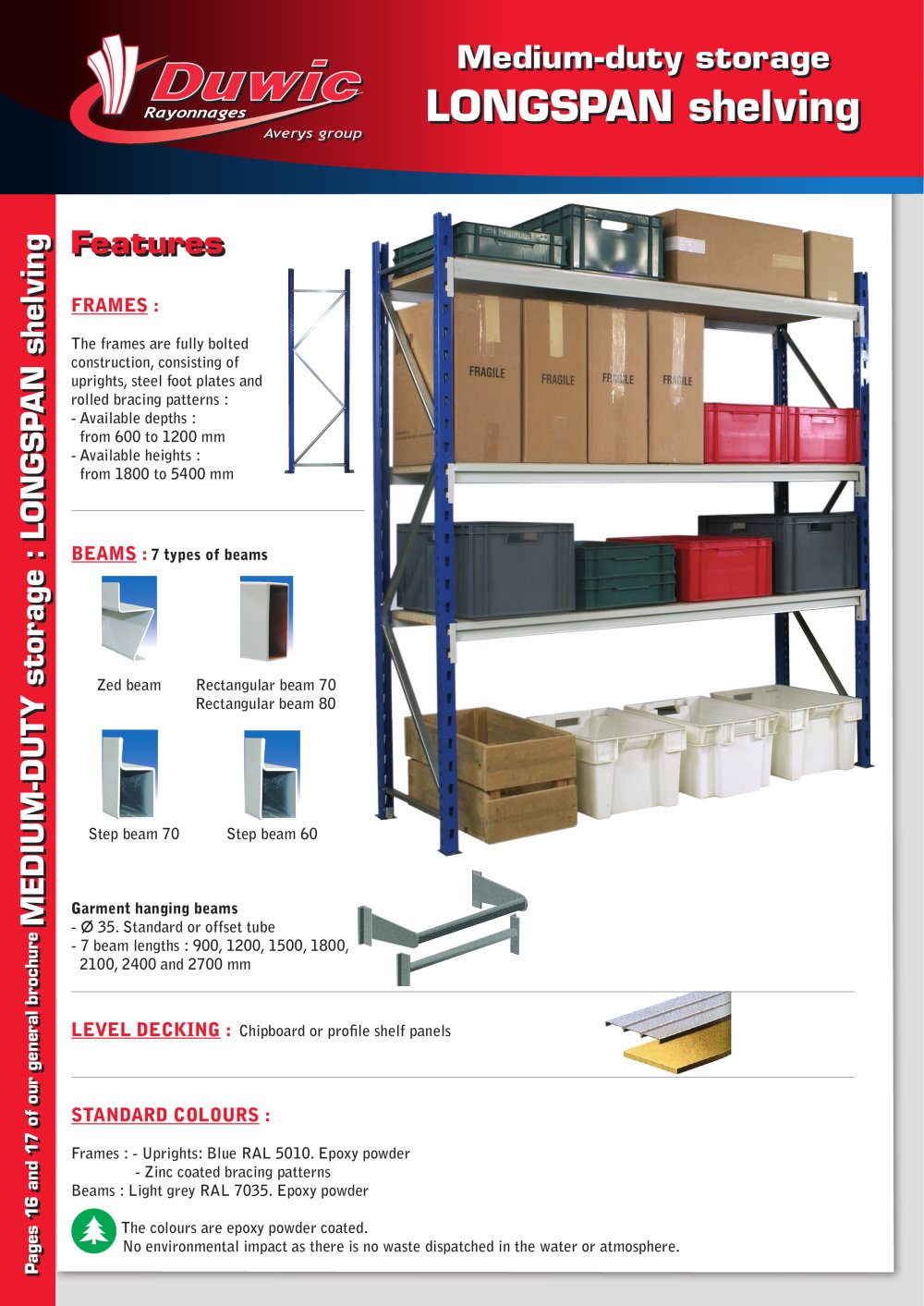

Medium-Duty Storage: LONGSPAN Shelving

Frames: The frames are constructed with a fully bolted design, including uprights, steel foot plates, and rolled bracing patterns. Available depths range from 600 to 1200 mm, and heights from 1800 to 5400 mm.

Beams: There are seven types of beams available, including Zed beams, Rectangular beams (70 and 80), and Step beams (60 and 70). Garment hanging beams are also available in standard or offset tube designs, with lengths of 900, 1200, 1500, 1800, 2100, 2400, and 2700 mm.

Level Decking: Options include chipboard or profile shelf panels.

Standard Colours: Frames have uprights in Blue RAL 5010 with zinc-coated bracing patterns. Beams are light grey RAL 7035. All colours are epoxy powder coated, ensuring no environmental impact as there is no waste discharged into water or the atmosphere.

Features and Capacities: The shelving system includes chipboard stops, support bars, profile shelf panels, and steel foot plates. The frame capacity can support up to 4 tons. Beam capacities vary by type and length, with specific load capacities detailed for each beam type and length.

Additional Specifications: Uprights are punched at 75 mm centers, allowing for beam adjustments at the same interval, with a minimum beam interval of 150 mm. Safety pins are included for secure connections.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial Black", sans-serif; } .font2 { font:11.00pt "Arial Black", sans-serif; } .font3 { font:19.00pt "Arial Black", sans-serif; } .font4 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:10.00pt "Lucida Sans Unicode", sans-serif; } o>B^^^^^^^^i SES! (5 Z (0 u c 3 -E U O c .n ~mc u c 0) O) _ 3 O O T" "O C (0 (O r- in (0 a

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 2

longspan shelving

longspan shelving
