adjustable metallic shelving
Product catalog summary

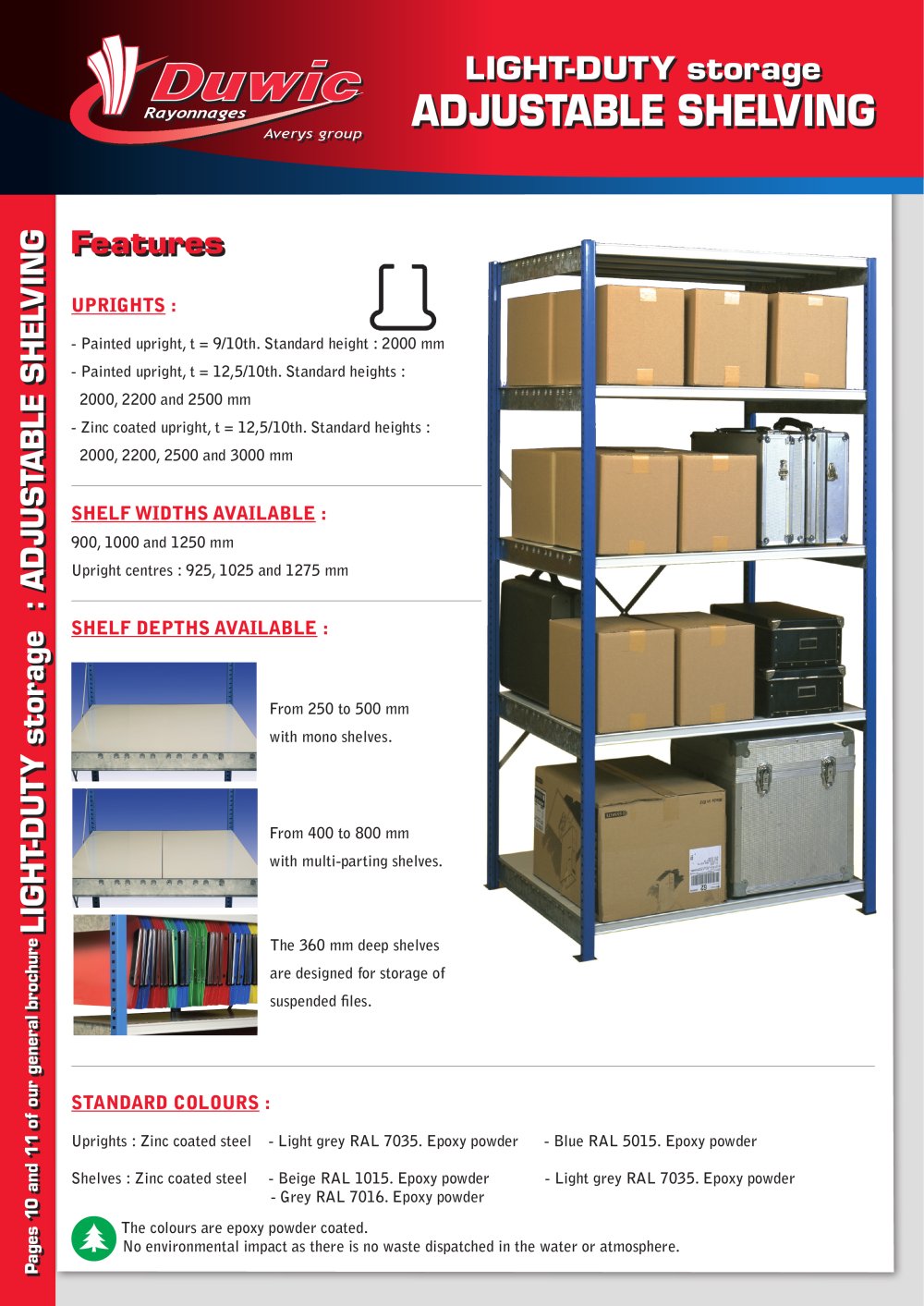

Light-duty Storage: Adjustable Shelving
Uprights:
- Available in painted or zinc-coated steel.
- Thickness options: 9/10th and 12.5/10th.
- Standard heights: 2000 mm, 2200 mm, 2500 mm, and 3000 mm.
Shelf Widths and Depths:
- Widths: 900 mm, 1000 mm, and 1250 mm.
- Depths: From 250 mm to 800 mm, depending on shelf type.
Standard Colours:
- Uprights: Zinc coated steel in Light grey RAL 7035, Blue RAL 5015.
- Shelves: Zinc coated steel in Beige RAL 1015, Light grey RAL 7035, Grey RAL 7016.
- All colours are epoxy powder coated with no environmental impact.
Features:
- Mono shelves support capacities from 120 kg to 150 kg depending on depth and width.
- Multi-parting shelves support capacities from 240 kg to 400 kg.
- Shelves designed for suspended files are 360 mm deep.
Construction Details:
- Includes steel foot plates, shelf supports, dividers, and plastic feet.
- Shelf adjustment at 25 mm centers, with a minimum interval of 75 mm.
- Single and double-sided shelving options available.
- Can be erected on mobile bases.
Additional Components:
- Intermediate solid side cladding, end panels, and solid back cladding with PVC junction or bracing set.
See more
