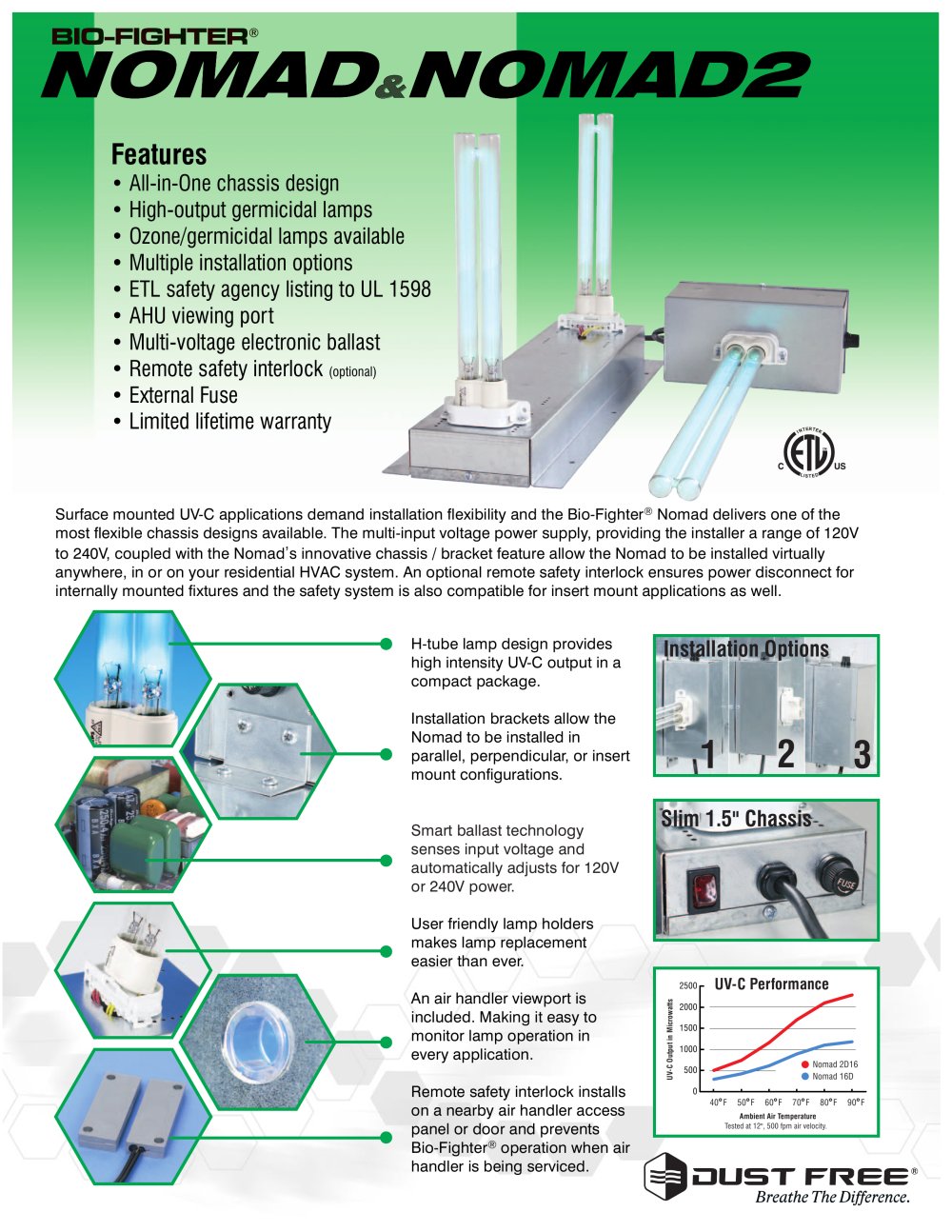

Surface mounted UV-C applications demand installation flexibility and the Bio-Fighter® Nomad delivers one of most flexible chassis designs available. The multi-input voltage power supply, providing the installer a range of to 240V, coupled with the Nomad’s innovative chassis / bracket feature allow the Nomad to be installed virtually anywhere, in or on your residential HVAC system. An optional remote safety interlock ensures power disconnect internally mounted fixtures and the safety system is also compatible for insert mount applications as well. Features • All-in-One chassis design • High-output germicidal lamps • Ozone/germicidal lamps available • Multiple installation options • ETL safety agency listing to UL 1598 • AHU viewing port • Multi-voltage electronic ballast • Remote safety interlock (optional) • External Fuse • Limited lifetime warranty H-tube lamp design provides high intensity UV-C output in a compact package. Installation brackets allow the Nomad to be installed in parallel, perpendicular, or insert mount configurations. Smart ballast technology senses input voltage and automatically adjusts for 120V or 240V power. User friendly lamp holders makes lamp replacement easier than ever. An air handler viewport is included. Making it easy to monitor lamp operation in every application. Remote safety interlock installs Slim 1.5" Chassis 1 2 Installation Options UV-C Performance 0 500 1000 1500 2000 2500 UV-C Output in Microwatts NOMAD&NOMAD2
Open the catalog to page 1
Germicidal Ultraviolet Light ©2004 Dust Free® 212656-00 Rev. 1C 8/04 The Bio-Fighter® Nomad assists in preventing the growth of micro-organism contaminants in the HVAC system. To ensure maximum effectiveness, install and maintain the Bio-Fighter® in accordance with installation and maintenance instructions. Dimensions: See Fig.1 Weight: Nomad - 3.75 lbs. Nomad 2 - 5.5 lbs. Listings: ETL Safety Agency - File #2002554 FIFRA - File #73316 (Federal Insecticide Fungicide Rodentcide Act) Electrical: The Bio-Fighter® Nomad uses a multi-input voltage electronic ballast able to operate within a...
