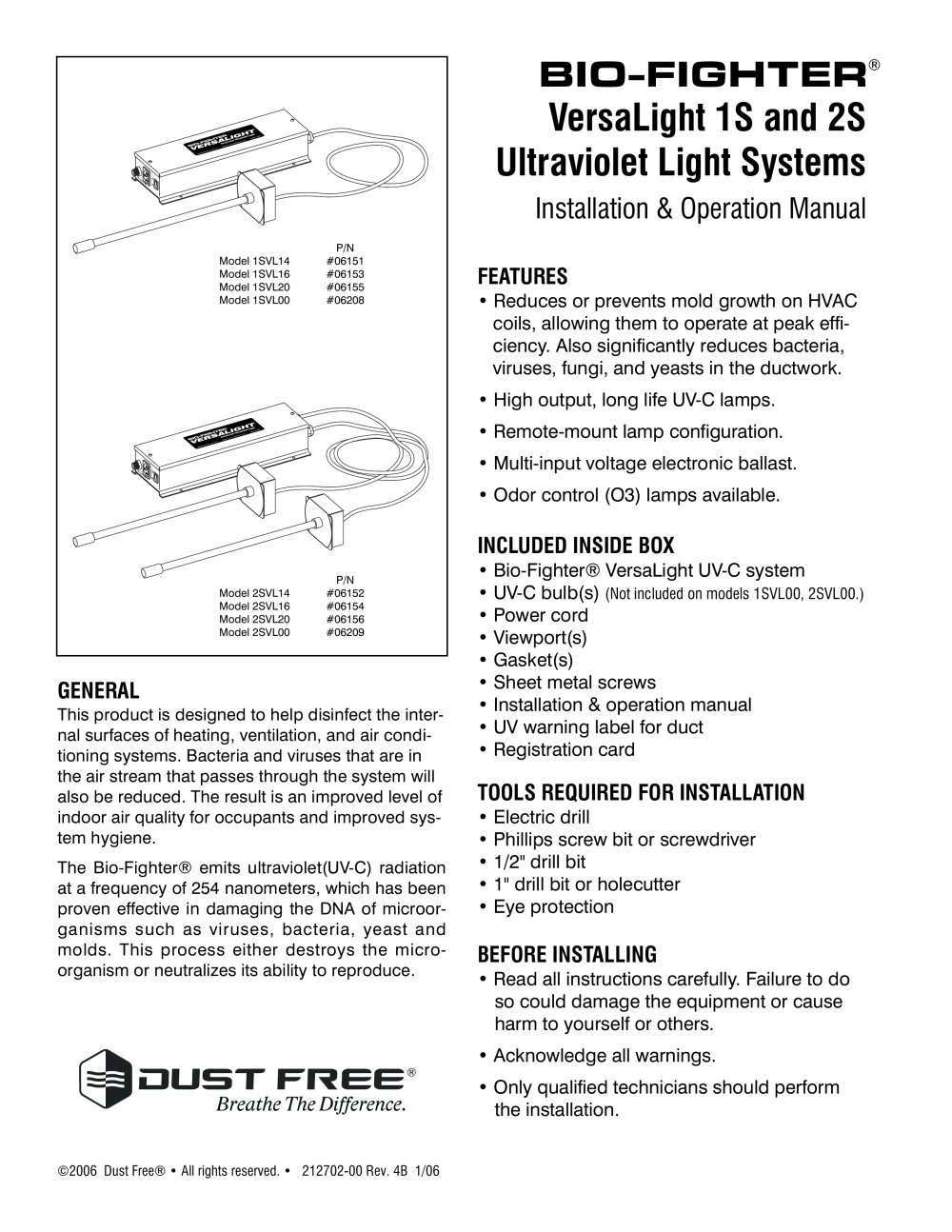

P/NModel 1SVL14 #06151 Model 1SVL16 #06153 Model 1SVL20#06155 Model 1SVL00#06208 P/NModel 2SVL14 #06152 Model 2SVL16 #06154 Model 2SVL20#06156 Model 2SVL00#06209 FEATURES > Reduces or prevents mold growth on HVACcoils, allowing them to operate at peak effi- ciency. Also significantly reduces bacteria, viruses, fungi, and yeasts in the ductwork.Օ High output, long life UV-C lamps. Remote-mount lamp configuration. Օ Multi-input voltage electronic ballast. Odor control (O3) lamps available. ծ FUSE INCLUDED INSIDE BOX > Bio-Fighterծ VersaLight UV-C system UV-C bulb(s) (Not included on models 1SVL00, 2SVL00.) Օ Power cord Viewport(s) Օ Gasket(s) Sheet metal screws Օ Installation & operation manual UV warning label for duct Օ Registration card GENERAL > This product is designed to help disinfect the inter- nal surfaces of heating, ventilation, and air condi- tioning systems. Bacteria and viruses that are in the air stream that passes through the system will also be reduced. The result is an improved level of indoor air quality for occupants and improved sys- tem hygiene.The Bio-Fighter emits ultraviolet(UV-C) radiationat a frequency of 254 nanometers, which has been proven effective in damaging the DNA of microor- ganisms such as viruses, bacteria, yeast and molds. This process either destroys the micro- organism or neutralizes its ability to reproduce. TOOLS REQUIRED FOR INSTALLATION > Ε Electric drill Phillips screw bit or screwdriver Օ 1/2" drill bit 1" drill bit or holecutter Օ Eye protection BEFORE INSTALLING > Read all instructions carefully. Failure to doso could damage the equipment or cause harm to yourself or others.Օ Acknowledge all warnings. Only qualified technicians should performthe installation. թ2006 Dust Free Ε All rights reserved. 212702-00 Rev. 4B 1/06 size="-3">

3.437" Base - 13"L x 4 > 1 / > 2 "W x 2 > 5 / > 8 "HRemote Lamp Housing - 3 > 5 / > 8 "L x 3"W x 1 > 1 / > 4 "H > 2.625" ή 6ft., 3-prong, 240V detachable power cord. 6ft., whip-type, 120V/240V detachable power cord. > 3" FIFRA - File # 73316 > 3.625" (Federal Insecticide Fungicide Rodentcide Act) Remote Lamp Housing U.S. Patent Nos. 5,334,347, 5,817,276, 6,245,293, 6,267,924, 6,280,686, 6,313,470, 6,627,000, 6,539,727, 6,932,494, 6,550,257. 1.25" Specifications subject to change without notice. ETL LISTED CONFORMS TO UL STD 1598 CERTIFIED TO CSA STD C22.2 NO. 250.0

BIO-FIGHTER VERSALIGHT 1S, 2S INSTALLATION & OPERATION MANUAL > Ε Do not install in closet return grille applications. Do not install in outdoor applications. Օ Do not expose wiring or plastic parts to UV-C light. This device installs in the air handling system and is best suited for hallway closet upflow applications or applications where space in front of the AHU is very limited. Select a mounting location with enough clearance for the lamp to be installed and replaced easily. Allow approximately 14"-20" depending on lamp length.A 120V or 240V electrical supply is required.Any...

BIO-FIGHTER VERSALIGHT 1S, 2S INSTALLATION & OPERATION MANUAL > (Fig.3) Remove the remote lamp housing from theremote lamp base by removing the knurled nuts. Then install the remote lamp base to the surface with the includes mounting screws. Using the remote lamp base as a template, drill a 1" hole for the lamp. Repeat for the sec- ond lamp base if applicable. To maximize the efficiency and life of the UV-Clamp, clean each lamp prior to installation. Use isopropyl alcohol and cotton cloth to wipe dust and fingerprints from the lamp.Gently insert the lamp into the lamp hole.Slide the bracket...

BIO-FIGHTER VERSALIGHT 1S, 2S INSTALLATION & OPERATION MANUAL > (Fig.5 ) > Whip-type Power Cord Option With the lamp housing in place attach the con-nector to the lamp. Hold back the protective boot to expose the harness connector. The har- ness connector is asymmetrical and can only be attached one way. If the harness does not attach easily, rotate 90 degrees and try again. After the harness connector is attached, slide the protec- tive boot over the lamp/connector. The protec- tive boot fits snugly over the lamp and seals the connection from moisture, dust, etc. > Connect green wire to...

BIO-FIGHTER VERSALIGHT 1S, 2S INSTALLATION & OPERATION MANUAL > Dust Free LP warrants this Bio-Fighter UV-C Light to be free from defects in materials and workmanshipunder normal use and service, for as long as it is owned by the original purchaser. This warranty does not cover UV-C lamp(s), which carry a one (1) year warranty from the date of installation, or the ballast(s) which carry(s) a three (3) year warranty.This warranty does not cover cosmetic damage, damage due to acts of God, damage as a result of han-dling or shipment, negligence, misuse, connection to improper voltage, improper...
