General Overview

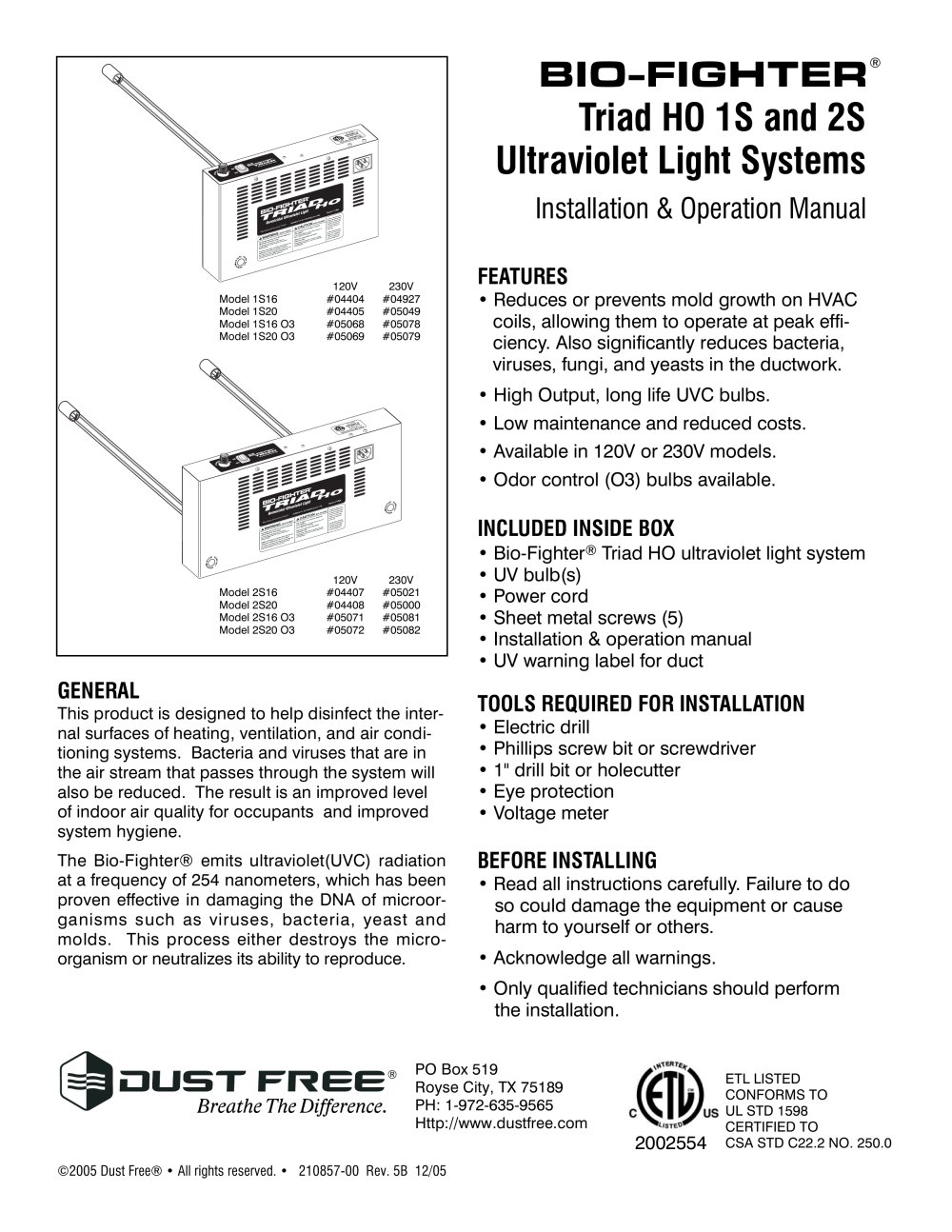

The document details the Bio-Fighter Triad HO 1S and 2S Ultraviolet Light Systems, which are designed to disinfect HVAC systems and improve indoor air quality by reducing bacteria and viruses.

Specifications
The systems are available in 120V and 230V models, with options for odor control bulbs. They emit UVC radiation at 254 nanometers, effective against microorganisms. Dimensions and weights vary slightly between models.

Features

Reduces mold growth and improves HVAC efficiency.
High output, long-life UVC bulbs.
Low maintenance and cost-effective.

Installation Requirements
Installation requires specific tools and compliance with electrical and mechanical codes. Qualified technicians should install the device, ensuring no UVC light is visible post-installation to prevent hazards.

Installation Procedure

Select a location with sufficient clearance for bulb installation and replacement.
Mount the device using included screws and drill necessary holes.
Ensure proper power connection and avoid exceeding voltage ratings.

Safety Warnings

UVC light can cause vision loss and sunburn; avoid exposure.
Handle bulbs carefully to prevent mercury exposure.

Maintenance and Troubleshooting
Regular maintenance should be performed by qualified technicians. Troubleshooting steps include checking power connections and replacing fuses or ballasts if necessary.

Warranty Information
The product comes with a limited lifetime warranty, excluding bulbs and ballasts, which have specific warranty periods. The warranty is void if not installed by a qualified contractor.

Conclusion
The Bio-Fighter Triad HO systems offer an effective solution for improving air quality in HVAC systems, with detailed installation and maintenance guidelines ensuring safe and efficient operation.

Warranty Claim Requirements
To initiate a warranty claim, proof of original purchase and identity of the original purchaser is required. Defective parts must be returned within 30 days of failure to the installing contractor, along with the model number, serial number, and installation date. All service and removal must be conducted by a licensed HVAC contractor. Shipping charges and other warranty service costs are the responsibility of the claimant. The warranty is valid only in the United States and Canada.

Warranty Limitations
The warranty does not cover labor costs or defects in workmanship or materials provided by the installing contractor, only defects in the germicidal light itself.

Return Authorization
Products or parts should not be returned to the factory without a Return Authorization number from Dust Free®, LP customer service.

Contact Information
For questions regarding product use, care, or warranty, contact Dust Free® at PO Box 519, 1112 Industrial Drive, Royse City, TX 75189, or call 1-972-635-9565.

Catalog excerpts

(Federal Insecticide Fungicide Rodentcide Act) U.S. Patent Nos. 5,334,347, 5,817,276, 6,245,293, 6,267,924,6,280,686, 6,313,470, 6,627,000, 6,539,727, 6,932,494, 6,550,257. Single or dual bulb model. Specifications subject to change without notice. A-Coil Fig. 1 Device may be mounted before or after A-coil in either hori-zontal or vertical air handling systems. Single or dual bulb model. Slab Coil Fig. 2 Device may be mounted before or after slab coil in eitherhorizontal or vertical air handling systems. UVC Light Hazard. > UVC light can cause temporary or permanent loss ofvision, and sunburn....

Open the catalog to page 2

BIO-FIGHTER > TRIAD HO 1S, 2S INSTALLATION & OPERATION MANUAL > Ε Do not install in closet return grille applications. Do not install in outdoor applications.Օ Do not expose wiring or plastic parts to UV-C light. Do not install where UV-C light can be seenafter installation. Օ Do not install beneath a humidifier. If the UV device is installed near an air filter,check with filter manufacturer for UV-Cresistance properties. Օ If the UV device is installed on the inlet side(return air side) of a coil, make sure that theHVAC system is configured such that the blower is located between the return...

Open the catalog to page 3

BIO-FIGHTER > TRIAD HO 1S, 2S INSTALLATION & OPERATION MANUAL > Construct from minimum 26 gauge metal. Make strap no wider than 1.5". Wider strap may obstruct viewport hole on single bulb models. 1.5" > 7" 3/16"-1/4" holes for mounting screws. 3/8" viewport holerequired on dual bulb model only. 4 >

Open the catalog to page 4

BIO-FIGHTER > TRIAD HO 1S, 2S INSTALLATION & OPERATION MANUAL > (Fig.6 ) For fiberboard installations two sheet metalstraps, suitable length #6 or #8 screws/nuts are required (not included). See template on page 4 for strap construction.Remove the cover and use the base as a tem-plate for drilling or cutting bulb and viewport holes into the fiberboard. Use a 6" holecutter to make access holes to attach the straps to the base. Note: Do not make bulb holes smaller than 1". Attach base as shown in Fig. 5. To maximize the efficiency and life of the UVCbulb, clean each bulb prior to installation....

Open the catalog to page 5

BIO-FIGHTER > TRIAD HO 1S, 2S INSTALLATION & OPERATION MANUAL > After bulb has been installed, attach electricalharness. The harness connector is asymmetri- cal and can only be attached one way. If the harness does not attach easily, rotate 90 degrees and try again. Repeat for all bulbs. Under normal conditions the Bio-Fighterή Triad HO should be operated continuously to extend the life of the bulb(s), and to increase the effectiveness in disinfecting the location selected.A convenient power switch is located on thedevice, and should be turned off before any maintenance on the device or HVAC...

Open the catalog to page 6

Dust Free > ή , LP warrants this Bio-Fighter > UV-C Light to be free from defects in materials and workman-ship under normal use and service, for as long as it is owned by the original purchaser. This warranty does not cover UV-C bulb(s), which carry a one (1) year warranty from the date of installation, or the bal- last(s) which carry(s) a five (5) year warranty. Lamp Tracker Model carries a two (2) year warranty on theLamp Tracker chip.This warranty does not cover cosmetic damage, damage due to acts of God, damage as a result of han-dling or shipment, negligence, misuse, connection to improper...

Open the catalog to page 8
