Data sheet Versalight
Product catalog summary
Overview: The Bio-Fighter® VersaLight is a versatile germicidal UV light system designed for HVAC applications. It features a remote-mount chassis design, allowing for flexible installation within 6 feet of the unit's chassis. The system is equipped with custom high output lamps and a multi-voltage electronic ballast that supports 120V to 240V, making it adaptable to various electrical parameters.
Key Features:
- Remote-mount chassis design with a 6-ft lamp cable.
- Custom high output lamps for enhanced UV-C light emission.
- Multi-voltage electronic ballast (120V to 240V).
- Stainless steel construction and quick-release lamp retention system.
- ETL safety agency listing to UL 1598.
- Moisture boot seals for lamp connections in high humidity environments.
- Lighted On/Off switch and external fuse for convenience.
Performance: The UV-C output ranges from 530 to 1650 µw/cm², depending on the model, tested at 50°F with a 12" distance and 500 FPM air velocity. The lamps have a lifespan of 9000 hours, with ozone-producing options available.
Installation and Sizing: The VersaLight can be installed anywhere in the HVAC system, ideally near the cooling coil to prevent mold growth. The single lamp model is suitable for systems up to 3 tons or 1200 CFM, while the dual lamp model is recommended for larger applications like A-coil and return air setups.
Specifications:
- Power Ratings: 120V - 0.90 Amps, 240V - 0.50 Amps.
- Temperature Range: 45°F - 150°F (outside of duct).
- Dimensions: Single and dual lamp configurations available.
Compliance: The product is listed under ETL Safety Agency File #2002554 and FIFRA File #73316.
See more
Catalog excerpts

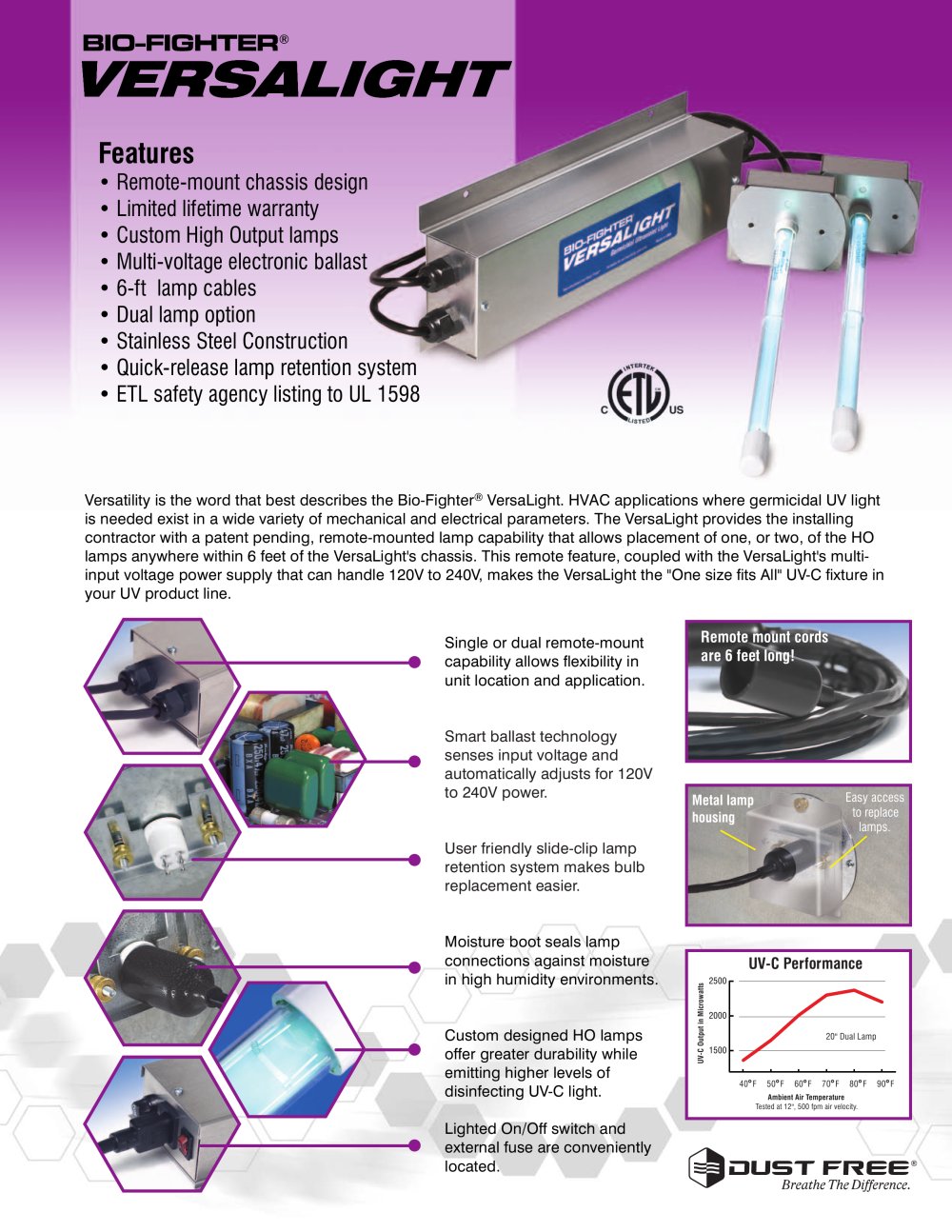

20" Dual Lamp > 15002000 2500 UV-C Output in Microwatts 40 F 50 F 60 F 70 F 80 F 90 F > Ambient Air Temperature Tested at 12", 500 fpm air velocity. size="-2">
