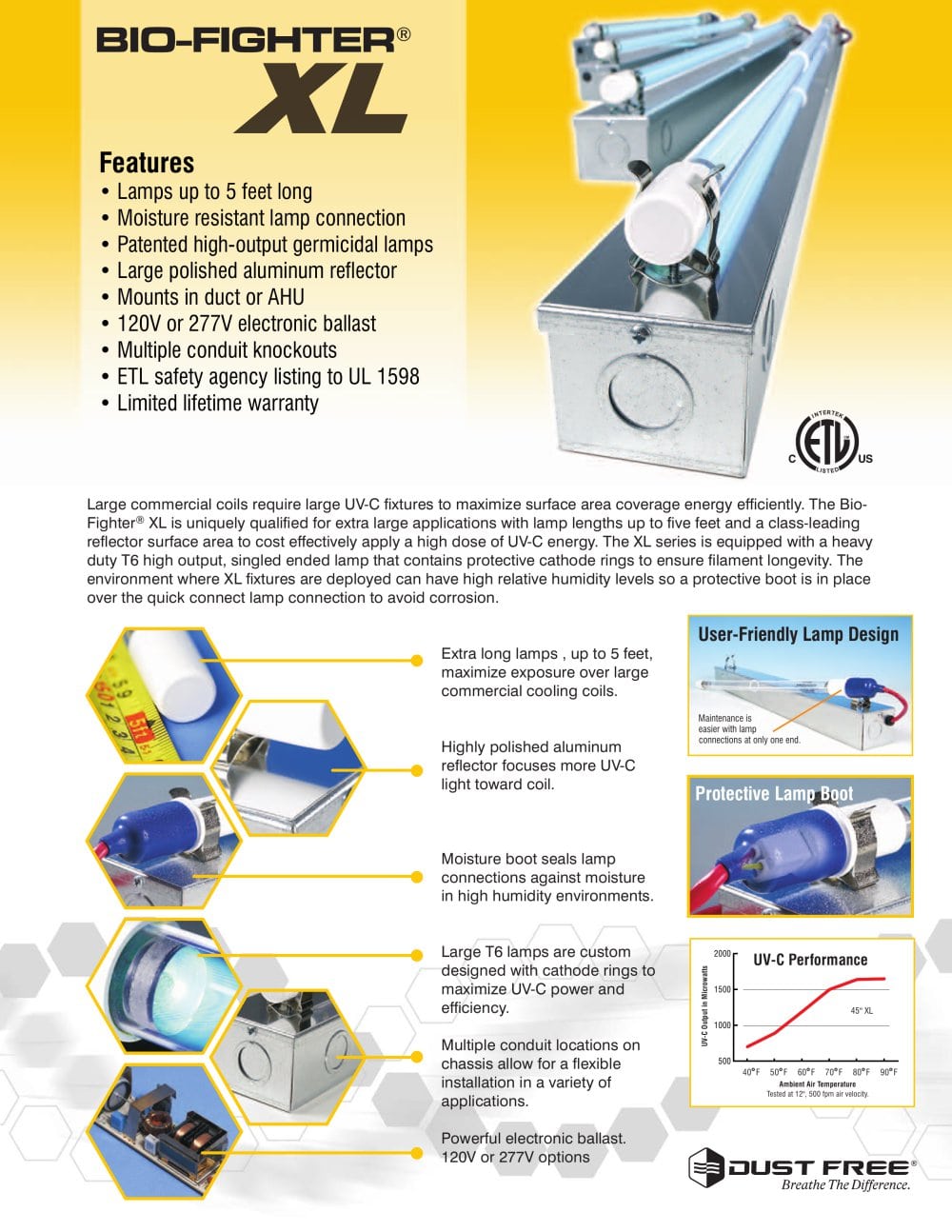

• Lamps up to 5 feet long • Moisture resistant lamp connection • Patented high-output germicidal lamps • Large polished aluminum reflector • Mounts in duct or AHU • 120V or 277V electronic ballast • Multiple conduit knockouts • ETL safety agency listing to UL 1598 • Limited lifetime warranty Large commercial coils require large UV-C fixtures to maximize surface area coverage energy efficiently. The BioFighter® XL is uniquely qualified for extra large applications with lamp lengths up to five feet and a class-leading reflector surface area to cost effectively apply a high dose of UV-C energy. The XL series is equipped with a heavy duty T6 high output, singled ended lamp that contains protective cathode rings to ensure filament longevity. The environment where XL fixtures are deployed can have high relative humidity levels so a protective boot is in place over the quick connect lamp connection to avoid corrosion. Extra long lamps , up to 5 feet, maximize exposure over large commercial cooling coils. Highly polished aluminum reflector focuses more UV-C light toward coil. User-Friendly Lamp Design Maintenance is easier with lamp connections at only one end. Protective Lamp Boot Moisture boot seals lamp connections against moisture in high humidity environments. Multiple conduit locations on chassis allow for a flexible installation in a variety of applications. Powerful electronic ballast. 120V or 277V options Large T6 lamps are custom designed with cathode rings to maximize UV-C power and efficiency. Ambient Air Temperature Tested at 12", 500 fpm air

Open the catalog to page 1

Germicidal Ultraviolet Light Submittal The Bio-Fighter® XL assists in preventing the growth of micro-organism contaminants in the large commercial cooling coils. To ensure maximum effectiveness, install and maintain the Bio-Fighter® in accordance with installation and maintenance instructions. Dimensions: See Fig.1 Weight: XL 21" - 3.9 lbs. XL 33" - 4.6 lbs. XL 45" - 6.4 lbs. XL 61" - 8.3 lbs. Lamp: 9000 hour lamp life. Listings: ETL Safety Agency - File # 2002554 FIFRA - File #73316 Electrical: The XL uses an electronic ballast available in either 120V or 277V power supplies. The unit...

Open the catalog to page 2
