Catalog excerpts

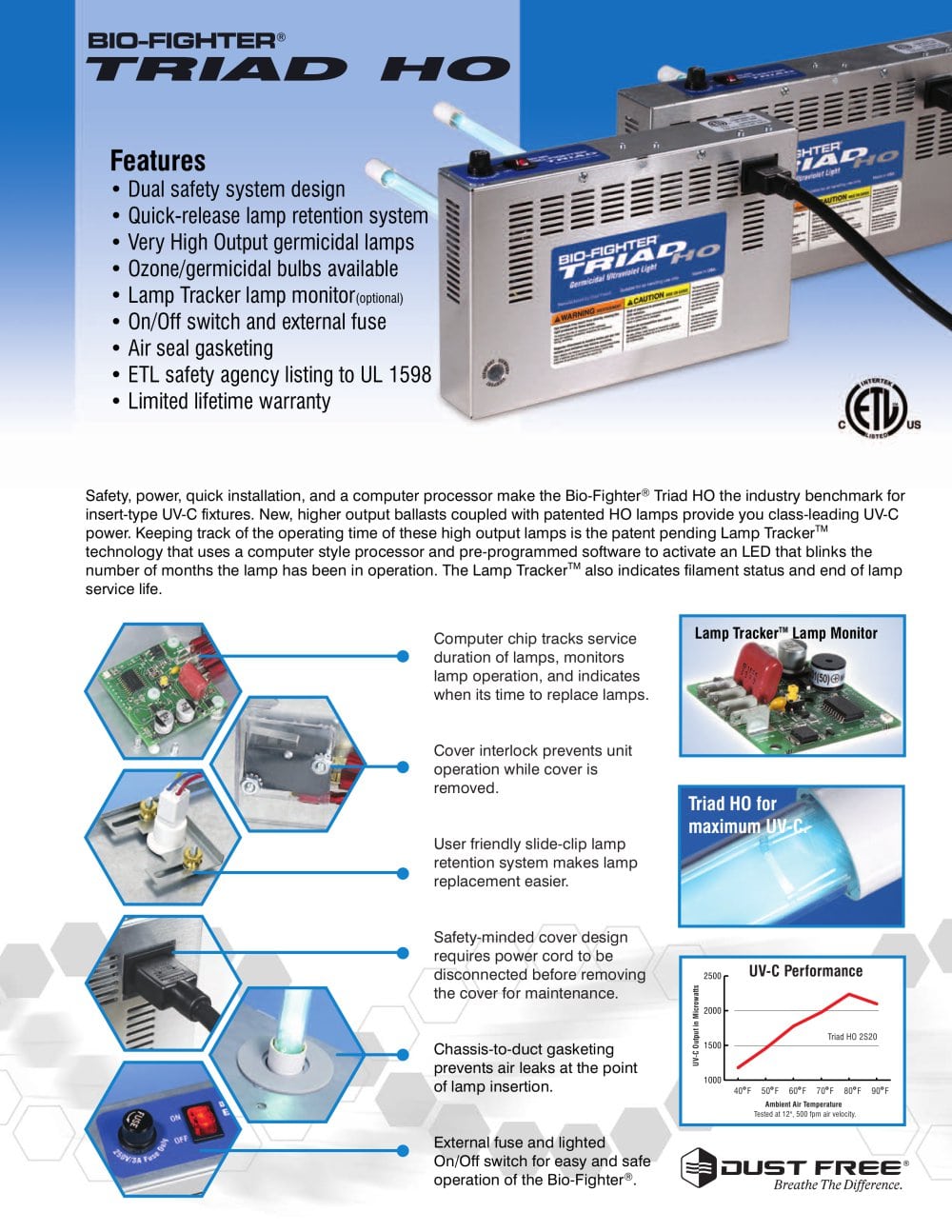

• Dual safety system design • Quick-release lamp retention system • Very High Output germicidal lamps • Ozone/germicidal bulbs available • Lamp Tracker lamp monitor(optional) • On/Off switch and external fuse • Air seal gasketing • ETL safety agency listing to UL 1598 • Limited lifetime warranty Safety, power, quick installation, and a computer processor make the Bio-Fighter® Triad HO the industry benchmark for insert-type UV-C fixtures. New, higher output ballasts coupled with patented HO lamps provide you class-leading UV-C power. Keeping track of the operating time of these high output lamps is the patent pending Lamp TrackerTM technology that uses a computer style processor and pre-programmed software to activate an LED that blinks the number of months the lamp has been in operation. The Lamp TrackerTM also indicates filament status and end of lamp service life. Cover interlock prevents unit operation while cover is removed. User friendly slide-clip lamp retention system makes lamp replacement easier. Safety-minded cover design requires power cord to be disconnected before removing the cover for maintenance. Chassis-to-duct gasketing prevents air leaks at the point of lamp insertion. Lamp TrackerTM Lamp Monitor Computer chip tracks service duration of lamps, monitors lamp operation, and indicates when its time to replace lamps. Ambient Air Temperature Tested at 12", 500 fpm air velocity. External fuse and lighted On/Off switch for easy and safe operation of the Bio
Open the catalog to page 1
Germicidal Ultraviolet Light The Bio-Fighter® Triad HO assists in preventing the growth of micro-organism contaminants in the HVAC system. To ensure maximum effectiveness, install and maintain the Bio-Fighter® in accordance with installation and maintenance instructions. Dimensions: See Fig.3 Weight: 1S16/20 - 4.5 lbs. 2S16/20 - 6.75. Electrical: The Bio-Fighter Triad HO is available in either 120V or 240V power supply models. The unit uses a detachable 6 foot power cord. Power Ratings: 120V or 240V. 60 Hz. Full Load Amps: 1S16/20 - .85 Amps. 2S16/20 - 1.7 Amps. Temperature: 45°F - 150°F...
