Jota Book Maker
Product catalog summary
Overview: The Jota Book Maker is a specialized binding machine designed for producing high-quality, lay-flat books. It consists of two main components: a milling device for spine preparation and a gluing station for mounting the book block.
Specifications:
- Book Block Dimensions: 10 x 15 cm (6 x 4 in.) to 30 x 40 cm (12 x 16 in.)
- Max. Book Block Thickness: 3.5 cm (1.37 in.)
- Operation: Manual, table top
- Power Supply/Consumption: 230V/50 Hz, 115V/50Hz, 500W
- Dimensions: Milling device: 1160 mm x 250 mm x 390 mm; Gluing station: 1160 mm x 250 mm x 500 mm
Key Features:
- The milling device opens the grain of the paper for better glue penetration.
- The gluing station uses a special extrusion gun to apply glue evenly.
- Environmentally friendly manufacturing process.
- Produces books that open completely flat, allowing seamless images and graphics across pages.
Operation Procedure:
- Load the book block into the milling device for spine preparation.
- Transfer the book block to the gluing device and press it tight.
- Adjust the gluing gun to match the book block width and position the tape strip.
- Press transport buttons to perform the gluing cycle, ensuring even glue application.
- Allow a few minutes for initial drying, then remove the book block from the device.
- Allow a few hours for complete drying to ensure stability.
Additional Information: The Jota Book Maker is suitable for small volume production and can accommodate standard or personalized covers once the glue is dry. The latest technical developments are incorporated into Durst products, and specifications may be subject to change.
See more
Catalog excerpts

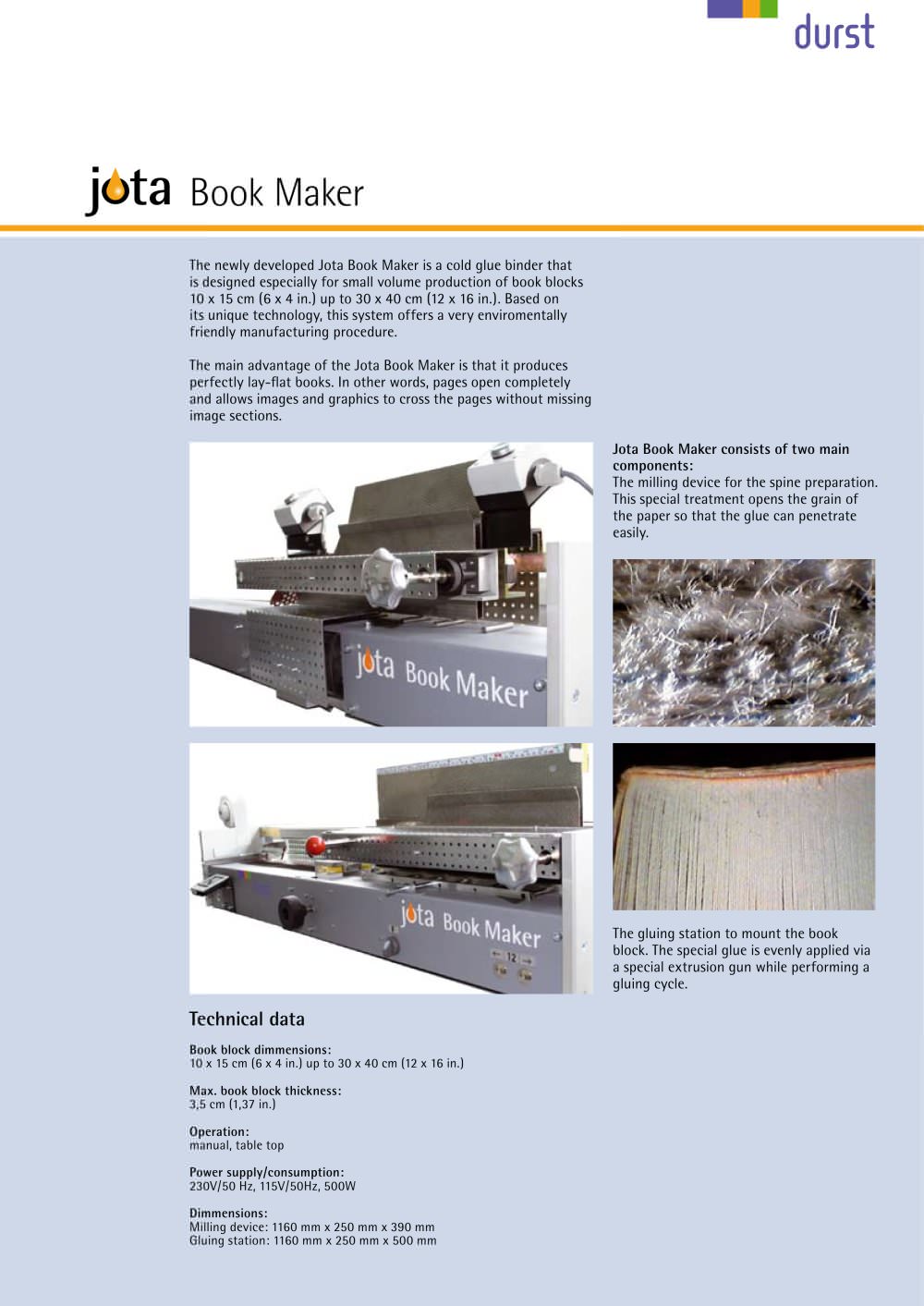

Book block dimmensions: 10 x 15 cm (6 x 4 in.) up to 30 x 40 cm (12 x 16 in.) Max. book block thickness: 3,5 cm (1,37 in.) Operation: manual, table top Power supply/consumption: 230V/50 Hz, 115V/50Hz, 500W Dimmensions: Milling device: 1160 mm x 250 mm x 390 mmGluing station: 1160 mm x 250 mm x 500 mm >
