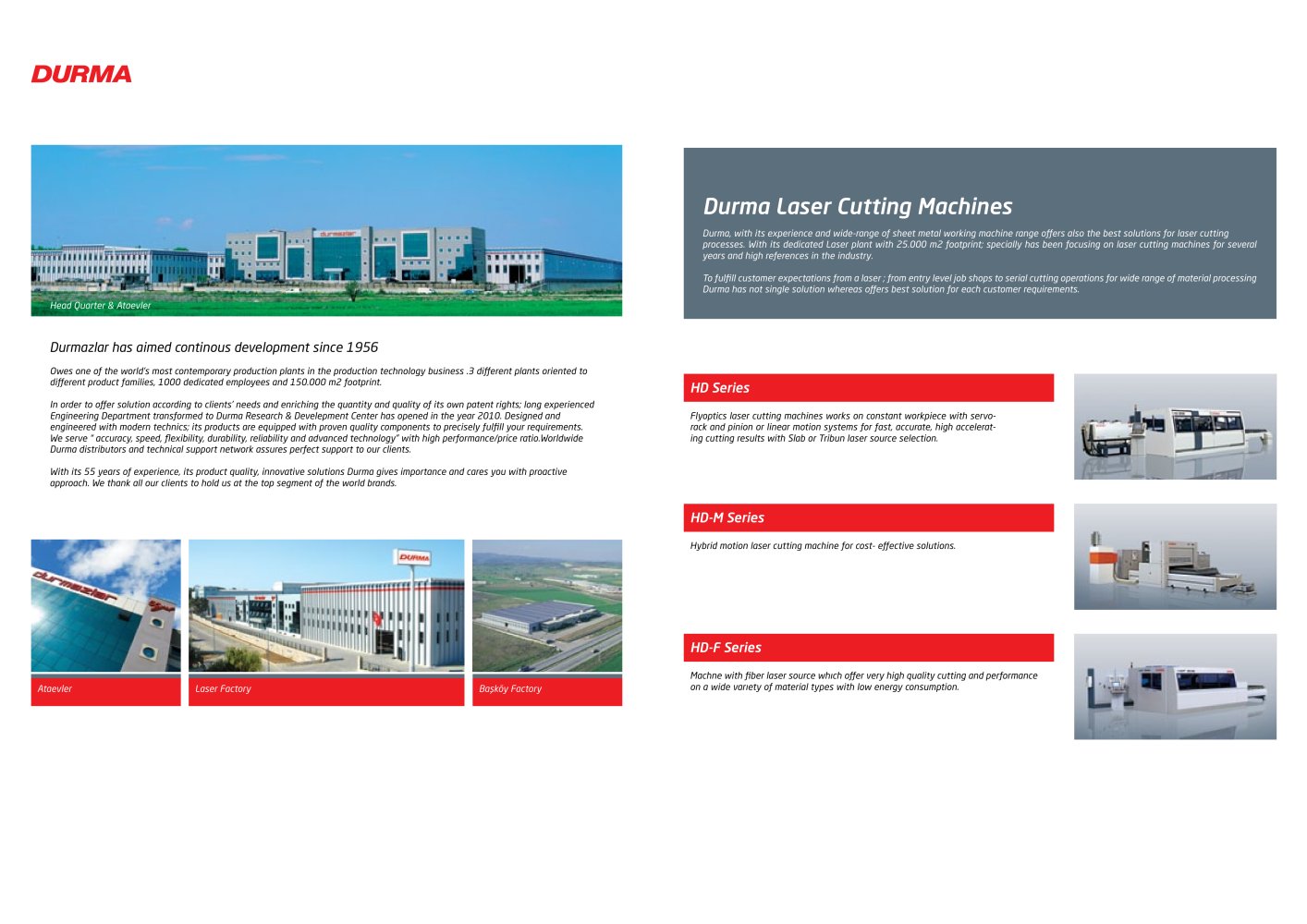

Durmazlar has aimed continous development since 1956 Owes one of the world’s most contemporary production plants in the production technology business .3 different plants oriented to different product families, 1000 dedicated employees and 150.000 m2 footprint. In order to offer solution according to clients’ needs and enriching the quantity and quality of its own patent rights; long experienced Engineering Department transformed to Durma Research & Develepment Center has opened in the year 2010. Designed and engineered with modern technics; its products are equipped with proven quality components to precisely fulfill your requirements. We serve “ accuracy, speed, flexibility, durability, reliability and advanced technology” with high performance/price ratio.Worldwide Durma distributors and technical support network assures perfect support to our clients. With its 55 years of experience, its product quality, innovative solutions Durma gives importance and cares you with proactive approach. We thank all our clients to hold us at the top segment of the world brands. Head Quarter & Ataevler Ataevler Laser Factory Baºköy Factory Durma Laser Cutting Machines Durma, with its experience and wide-range of sheet metal working machine range offers also the best solutions for laser cutting processes. With its dedicated Laser plant with 25.000 m2 footprint; specially has been focusing on laser cutting machines for several years and high references in the industry. To fulfill customer expectations from a laser ; from entry level job shops to serial cutting operations for wide range of material processing Durma has not single solution whereas offers best solution for each customer requirements. HD Series Flyoptics laser cutting machines works on constant workpiece with servorack and pinion or linear motion systems for fast, accurate, high accelerating cutting results with Slab or Tribun laser source selection. HD-M Series Hybrid motion laser cutting machine for cost- effective solutions. HD-F Series Machne with fiber laser source whých offer very high quality cutting and performance on a wide varýety of material types with low energy consumption.

HD SERIES High speed 2D laser cutting machines work with the flying optics principle. In this design, the raw sheet rests on the cutting table and the laser head moves in both X and Y direction. In this concept the frame and the gantry are welded and then stress relieved to eliminate deviations in the overall structure that can occur during the welding process. All moving axis are driven by dynamic low inertia and high performance and maintainence free AC servo motor or high Dynamics Linear motor motion system. - Compact design - Various material types and thickness can be cut to any desired...

Slab Laser Source – Rofin Slab Laser Source - Rofin Minimum Gas Consumption Due to the diffusion-cooled CO2 Slab laser principle, the gas consumption is reduced to a minimum. A 10L pre-mix gas cylinder for laser operation is integrated in the resonator cabinet. Reduced Maintenance The elimination of the gas circulation system has resulted in a design which does not employ major parts subject to mechanical wear. Therefore, routine maintenance requirements have been virtually eliminated. Improved Performance The excellent beam quality achieved with the CO2 slab resonator results in higher cutting...

Intelligent “Capacitance” Style Cutting Head - The cutting head is equipped with a capacitive distance sensor which automatically keeps the distance between the cutting head and the material constant. The system continuously regulates the distance between the nozzle and the workpiece, simultaneously adjusting the Z-axis according to material thickness. - Cartridge style replacement - Lens cartridge temperature sensors protect lenses - A piercing sensor detects the completion of piercing - ControlCut: the sheet is pre-measured for deviations in terms of sheet sizes, corners and angular positioning...

High force density and energy-efficiency High level of dynamics and precision as well as great controllability Low thermal expansion and high degree of robustness due to large air gap Enables highly dynamic applications with long traverse distances to be implemented. Furthermore, the magnet-free secondary section ensures that the highly dynamic linear motor can be used in environmental conditions in which the usage of magnetic secondary parts is not normally desired. Linear Motors (Optional) - Full-automatic cutting. ( Any CAD drawings can be imported to create NC Codes which are loaded to the...

Dust particles produced during the cutting operations are vacuumed by embedded filter channels located under the cutting table. A clean working environment results in reduced machine maintenance and cleaning. - Self Cleaning ( system cleans itself and dust is transferred to the disposal bin) - Easy Disposal Using Portable Scrap Container - Free Contacts for External Controls (no electricity consumed when not cutting) - Siemens CPU and PTFE Membrane Filter Cartridges AD-S machines offers wide spaces for ease of operation also reduces cycle times. Chiller Dust Collection / Filtration STANDARD EQUIPMENTS...

HD-M SERIES Hybrid Concept Durma hybrid laser cutting machines offer great flexibility, efficiency and accuracy. The system works as “hybrid” principle in which the cutting head moves in the Y axis and table in the X axis. The axis and table move with high precision ground ballscrews with direct drive technology. No belt and any transmission between the motors and ballscrews. This eliminates potential backlash problems. The Durma HD-M also features high productivity, easy to operate, low running cost, less maintenance, clean environment and high cutting technology. In laser cutting machines it...

The Source Slab Laser Source - Rofin FAF (Fast Axial Flow) lasers are well known, reliable, easy to operate, long life and less service required laser source in the market for a long time. STS 2500 lasers are engineered to operate 24 hours a day, seven days a week for months at a time, making them the perfect choice for demanding three shift applications. Other properties include: - Patented, oil and maintenance free, turbo flow compressor. - Long lens optic life - Microprocessor based controls with built in diagnoistic routines. - Unmatched pulsing performance - Reliable and efficient DC excitation....
