Ultrasonic Welders
4Pages

Catalog excerpts

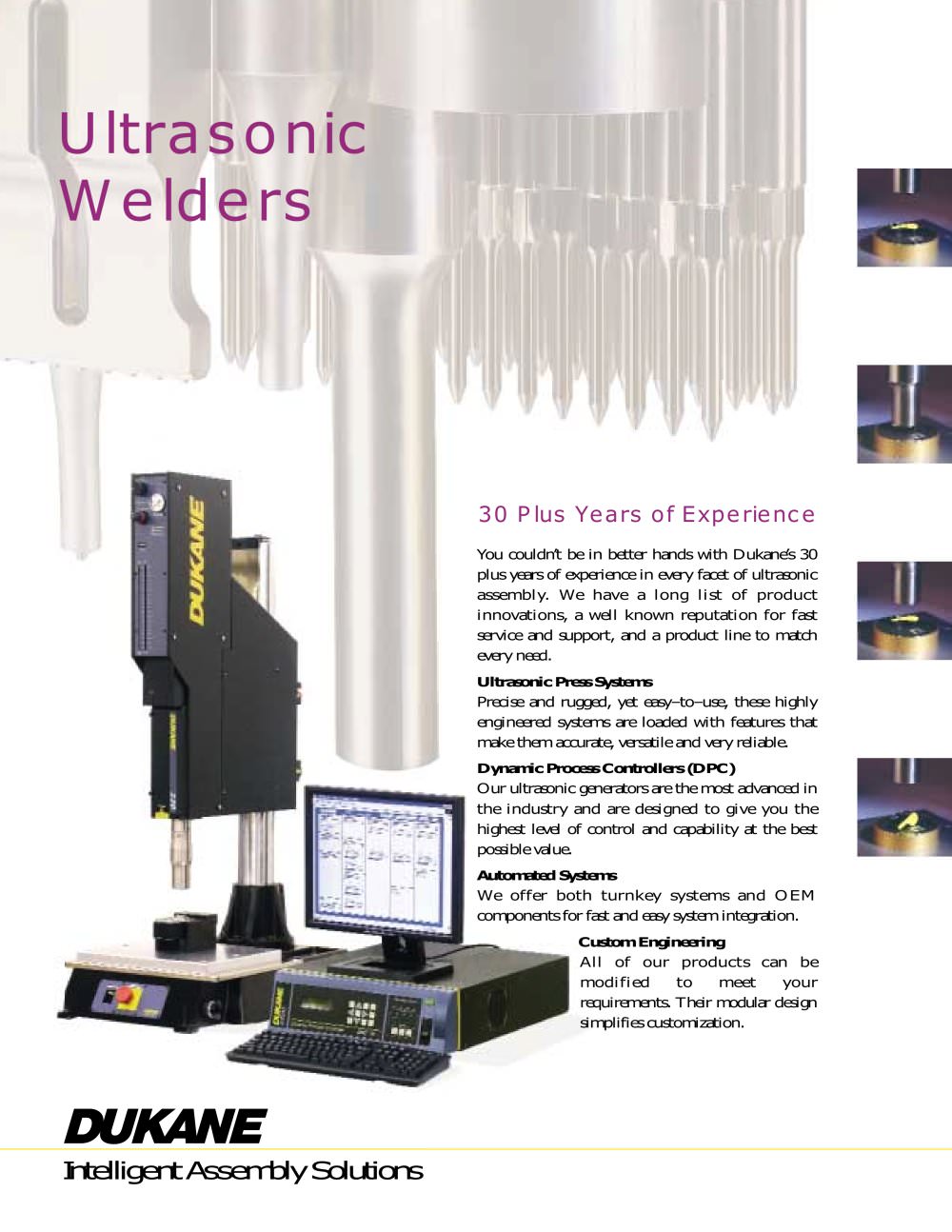

Ultrasonic Press Systems Automated Systems Dynamic Process Controllers (DPC) We offer both turnkey systems and OEM components for fast and easy system integration. > Precise and rugged, yet easyto֖use, these highly engineered systems are loaded with features that make them accurate, versatile and very reliable. Custom Engineering You couldnt be in better hands with DukaneҒs 30plus years of experience in every facet of ultrasonic assembly. We have a long list of product innovations, a well known reputation for fast service and support, and a product line to match every need. Our ultrasonic generators are the most advanced in the industry and are designed to give you the highest level of control and capability at the best possible value. All of our products can be modified to meet your requirements. Their modular designsimplifies customization. >

Open the catalog to page 1

Press Systems Precise, rugged and easy to use, our benchtop presses are highly engineered systems, loaded with features that make them accurate, versatile and extremely reliable.? Widest range of frequencies: 15k, 20k,30k, 40k, 50k and 70kHz? Power levels ranging from 100 Watts to4,000 Watts.? Exclusive dualpressure capability ? Smooth linear ball֖slides for precisevertical movement? Robust castaluminum base andmachined steel column to eliminate flexing for accurate repeatability? Generous 7֖inch stroke with adjustablebottom stop? Ergonomic design with universal iconsand easyaccess controls...

Open the catalog to page 2

Modular Components The modular design of ourproducts allows us to easilyconfigure them as standaloneunits, single֖station systems orfullyautomated multihead machines. We can deliver total engineered systems or partner with machine builders. We can also integrate our equipment intoexisting machines. Some of our custom capabilities include:? Narrow profile thrusters for closecenter֖tocenter mounting? Compact platen thrusters with remotepneumatics? Custom software development ? Turnkey automated solutions ? Wide range of process controls withintegration and networking capability > Our rotary...

Open the catalog to page 3

DPC IV Plus Our most advanced generator offers total process control with features like weld data storage to PC, multisystem networking for single֖point data output, graphing, standard printer protocols and welder calibration. It is the ideal choice for systems that require FDA or SPC process documentation. DPC III Combines some of our most advanced DPC features with the userfriendly interface from our familiar Ultra֖Com controller. It adds weldby֖distance, a fullscreen user interface and memory for eight separate weld setups and part data. DPC II Plus The only low֖cost generator to offer...

Open the catalog to page 4
