Overview

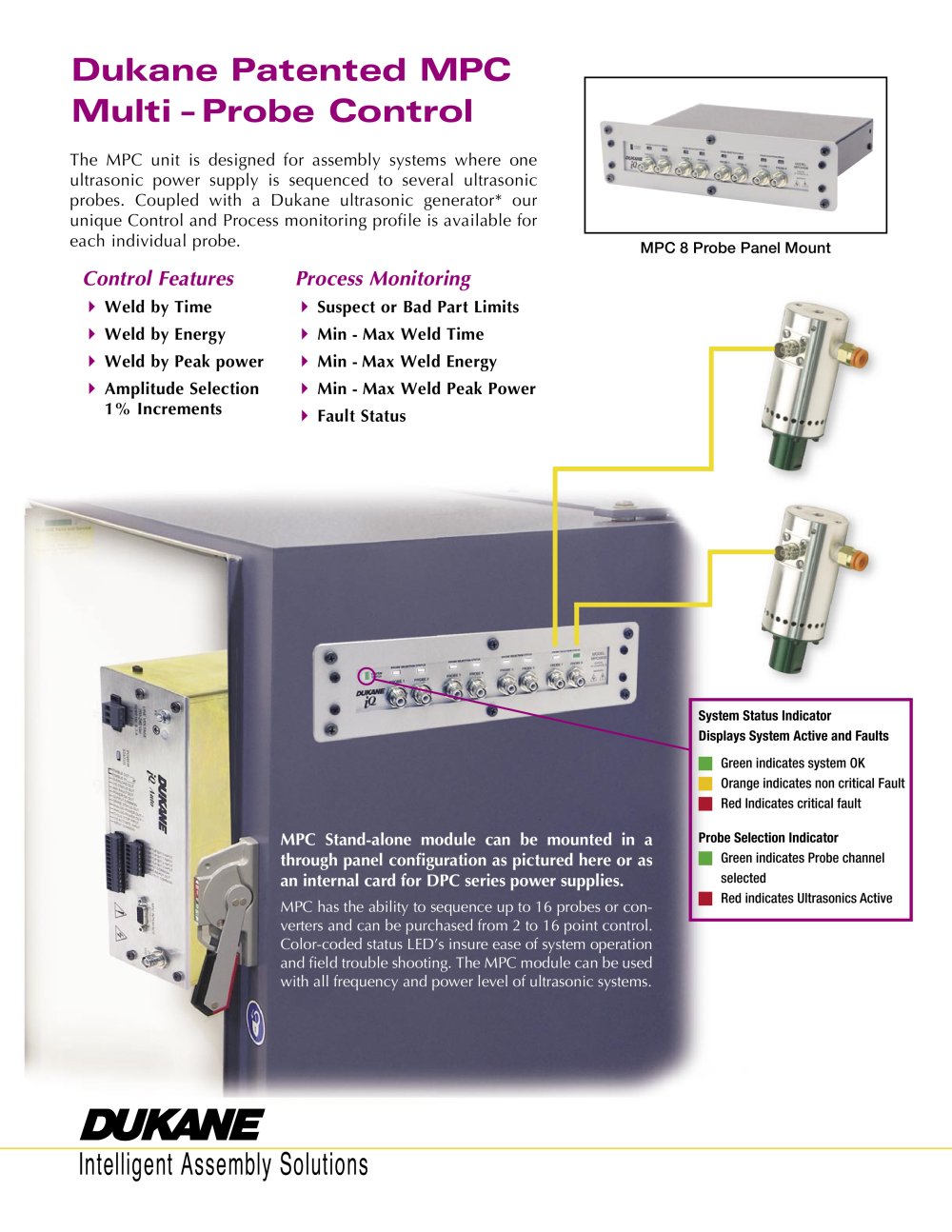

The document describes the Multi-Probe Control (MPC) unit designed for assembly systems using ultrasonic technology. It highlights the integration with Dukane ultrasonic generators to provide control and process monitoring for multiple probes.

Specifications
The MPC unit can sequence up to 16 ultrasonic probes or converters, available in configurations from 2 to 16 points. It features color-coded status LEDs for easy operation and troubleshooting. The system is compatible with all frequencies and power levels of ultrasonic systems.

Control Features

• Weld by Time
• Weld by Energy
• Weld by Peak Power
• Amplitude Selection in 1% increments

Process Monitoring

• Suspect or Bad Part Limits
• Min-Max Weld Time
• Min-Max Weld Energy
• Min-Max Weld Peak Power
• Fault Status

System Status Indicators

• Green: System OK
• Orange: Non-critical Fault
• Red: Critical Fault

Probe Selection Indicators

• Green: Probe channel selected
• Red: Ultrasonics Active

MPC Configurations
The MPC can be used with DPC II Plus, DPC II, iQ Series, and iQ Auto controllers. It includes features like protection from improper programming, binary coded selection inputs, logic interlocks, ring-down monitor, fault monitor, and hold-up time for internal supplies.

Benefits
The system eliminates equipment failures due to improper programming and offers independent control and monitoring of weld parameters. It provides alarms for suspect or bad parts and can visually indicate potential weld defects to operators.
