Dukane VW4300 Vibration Welder

Dukane VW4300 Vibration Welder
2Pages

Catalog excerpts

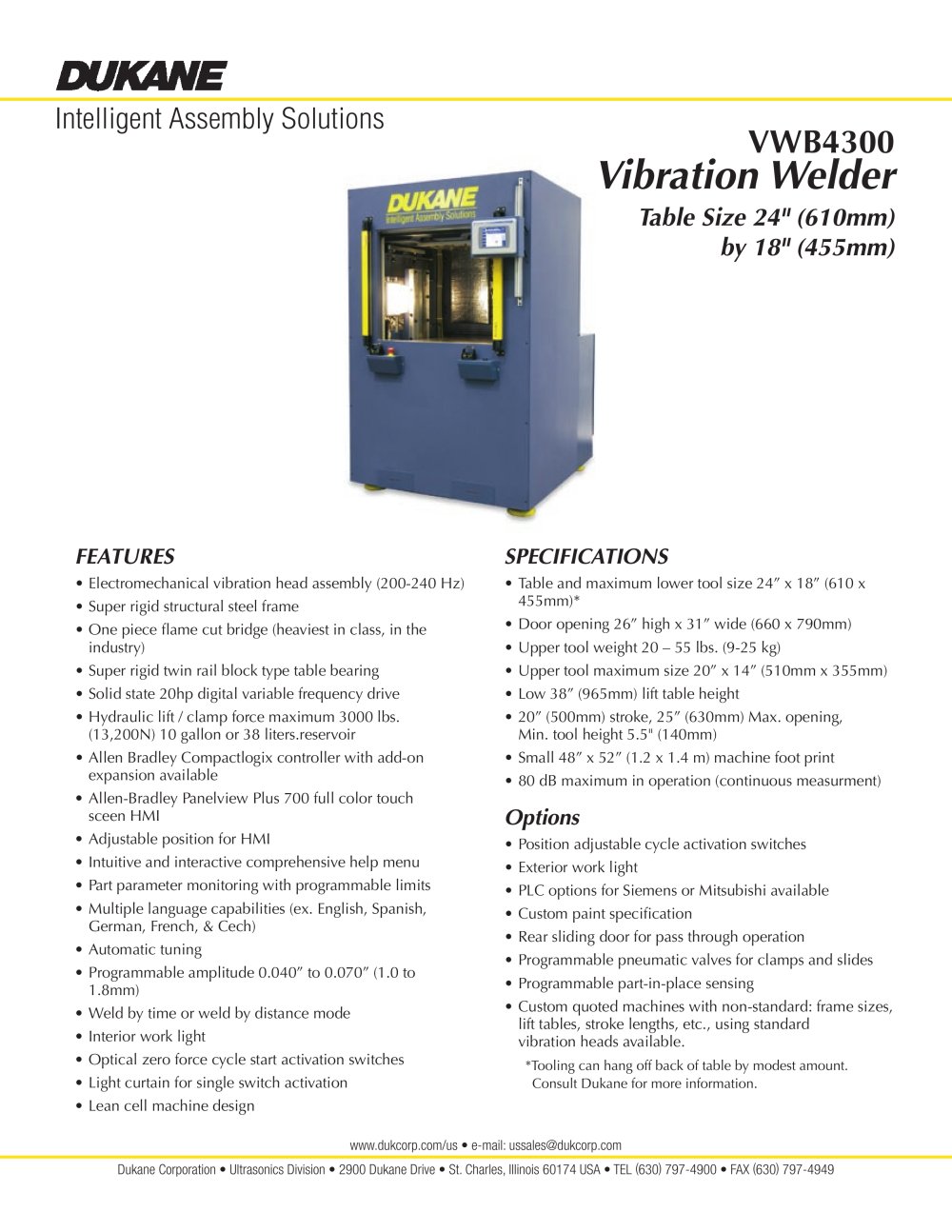

Dukane Corporation • Ultrasonics Division • 2900 Dukane Drive • St. Charles, Illinois 60174 USA • TEL (630) 797-4900 • FAX (630) 797-4949 www.dukcorp.com/us • e-mail: ussales@dukcorp.com Intelligent Assembly Solutions FEATURES • Electromechanical vibration head assembly (200-240 Hz) • Super rigid structural steel frame • One piece flame cut bridge (heaviest in class, in the industry) • Super rigid twin rail block type table bearing • Solid state 20hp digital variable frequency drive • Hydraulic lift / clamp force maximum 3000 lbs. (13,200N) 10 gallon or 38 liters.reservoir • Allen Bradley Compactlogix controller with add-on expansion available • Allen-Bradley Panelview Plus 700 full color touch sceen HMI • Adjustable position for HMI • Intuitive and interactive comprehensive help menu • Part parameter monitoring with programmable limits • Multiple language capabilities (ex. English, Spanish, German, French, & Cech) • Automatic tuning • Programmable amplitude 0.040” to 0.070” (1.0 to 1.8mm) • Weld by time or weld by distance mode • Interior work light • Optical zero force cycle start activation switches • Light curtain for single switch activation • Lean cell machine design VWB4300 Vibration Welder Table Size 24" (610mm) by 18" (455mm) SPECIFICATIONS • Table and maximum lower tool size 24” x 18” (610 x 455mm)* • Door opening 26” high x 31” wide (660 x 790mm) • Upper tool weight 20 – 55 lbs. (9-25 kg) • Upper tool maximum size 20” x 14” (510mm x 355mm) • Low 38” (965mm) lift table height • 20” (500mm) stroke, 25” (630mm) Max. opening, Min. tool height 5.5" (140mm) • Small 48” x 52” (1.2 x 1.4 m) machine foot print • 80 dB maximum in operation (continuous measurment) Options • Position adjustable cycle activation switches • Exterior work light • PLC options for Siemens or Mitsubishi available • Custom paint specification • Rear sliding door for pass through operation • Programmable pneumatic valves for clamps and slides • Programmable part-in-place sensing • Custom quoted machines with non-standard: frame sizes, lift tables, stroke lengths, etc., using standard vibration heads available. *Tooling can hang off back of table by modest amount. Consult Dukane for more information.

Open the catalog to page 1

Note: All specifications are subject to change without notice. Please consult Dukane Ultrasonics for any updated information. Vibe #09-0016-00 21.80 52.00 31.00 48.00 37.00 24.00 19.50 15.75 2.63 13.23 12.047 8.01 15.20 5.25 7.13 5.25 18.00 16.50 12.05 2.64 4.41 OPENING LIFT TABLE HOLE PATTERN M12-1.75 METRIC TAPPED HOLES UPPER TOOL BOLT PATTERN OPENING 26.50 74.90 38.00 FRONT SLIDING DOOR OPENING VWB4300 Vibration Welder Dimensions Top Fixture hole patterns and dimensions. Front Right Side Electric Service Required: 480V, 3 Phase, 40 Amps (custom input voltage kits available) Pneumatic...
