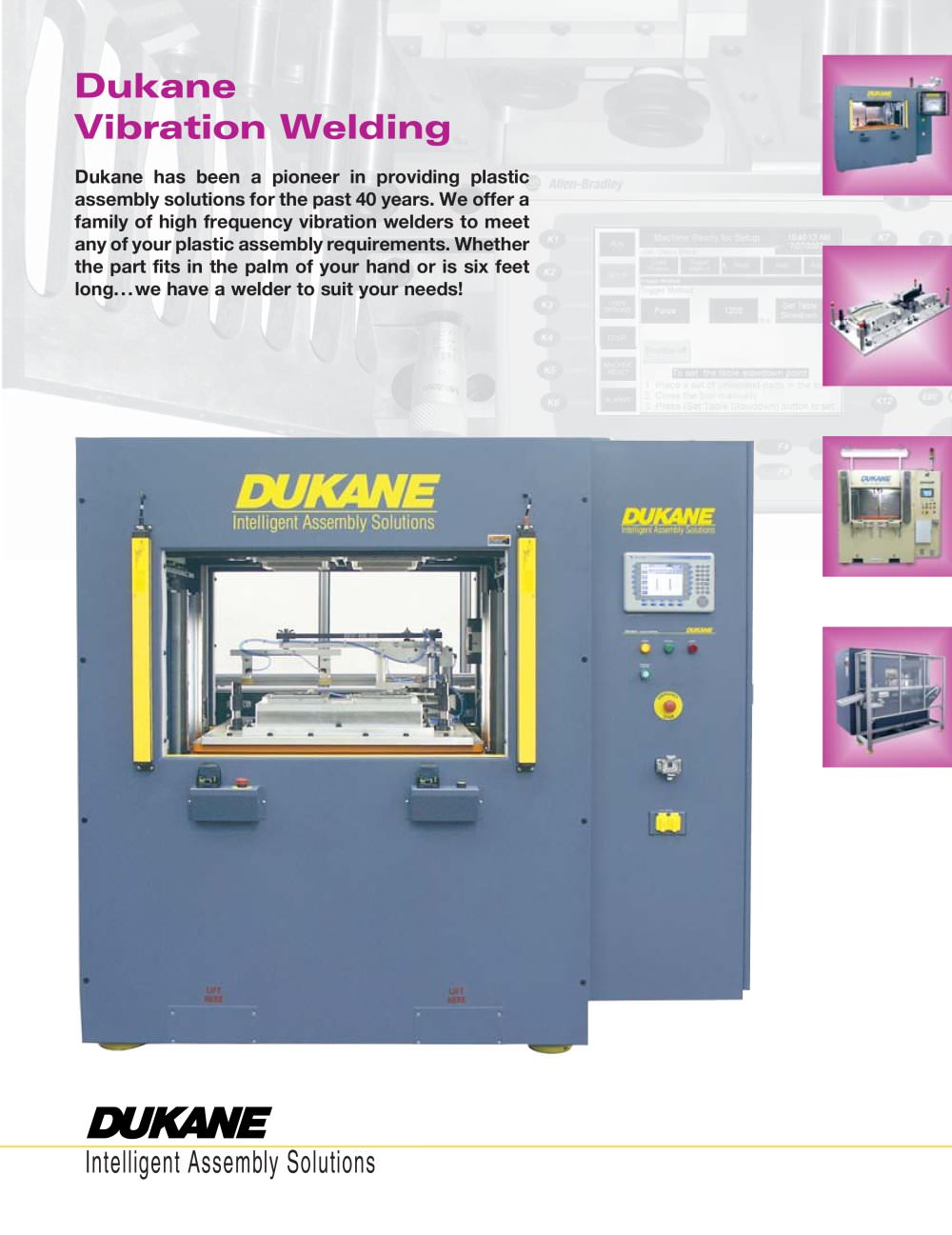

Dukane Vibration Welding Dukane has been a pioneer in providing plastic assembly solutions for the past 40 years. We offer a family of high frequency vibration welders to moot any of your plastic assembly requirements. Whether the part frts in the palm of your hand orissix feet long. ..wehave a welder to suit your needs! DUKANE Intelligent Assembly Solutions

Mechanical Features of All Dukane Vibration Welders .. Effi cient electromagnetic drive system, with proven reliability, complete with digital PWM drives. .. Heaviest-in-class, one-piece fl ame cut bridge stops unwanted vibrations at its source. .. Four continuously supported rails, with eight reciprocating bearings for best table slide in the industry. .. Robust frame with more cross members to support dovetail slide bridge. .. Tubular steel table with 1”(25mm) thick Blanchard ground surface provides stable platform for lower tooling. .. Rexroth hydraulic power unit has large 20 - gallon oil...

15 1 J IT Features Advanced HMI Basic HMI HMI Process Control 15inch 7.5 irch Time STD STD Dislance STD STD Amplitude Profile STD Opticnal Pressire Profile STD Opticnal Trigger by Fcrce STD STD Trigger by Position STD STD Programmable Nfelvesfensors 6 valves, 6sensors Opbonal 2 valves, 2 sensors Ethernet Communication STD Opticnal Data Slorage DVD. USB. Hard Drive Data History Unlimrted Las! # Cycles Tooling 1D Opttonal Opticnal Electronic Manua) STD WA HSTD |B Opticnal Process Limite Graphlcally enhanced STD Capable Securlty Cusiomlzable Passwords Advanced HMI Basic HMI Optional Tooling Accessones...

Form #07-0010-01 © 2007 Dukane Corporation Dukane Intelligent Assembly Solutions • 2900 Dukane Drive • St. Charles, Illinois 60174 USA TEL +1(630) 797-4900 • FAX +1(630) 797-4949 • E-MAIL [email protected] • www.dukcorp.com/us Printed in U.S.A. One size does NOT fit all! Dukane offers standard machines in many sizes to cost effectively fit specific needs. 4300 4500 4700 4900 Our systems are manufactured to ISO 9001:2000 standards, CE and approved for global sales. Small Pressurized Vessels High Mount Stoplight Appliance Pump Housings Side Marker Light Filter Assemblies Small Handles and Brackets...
