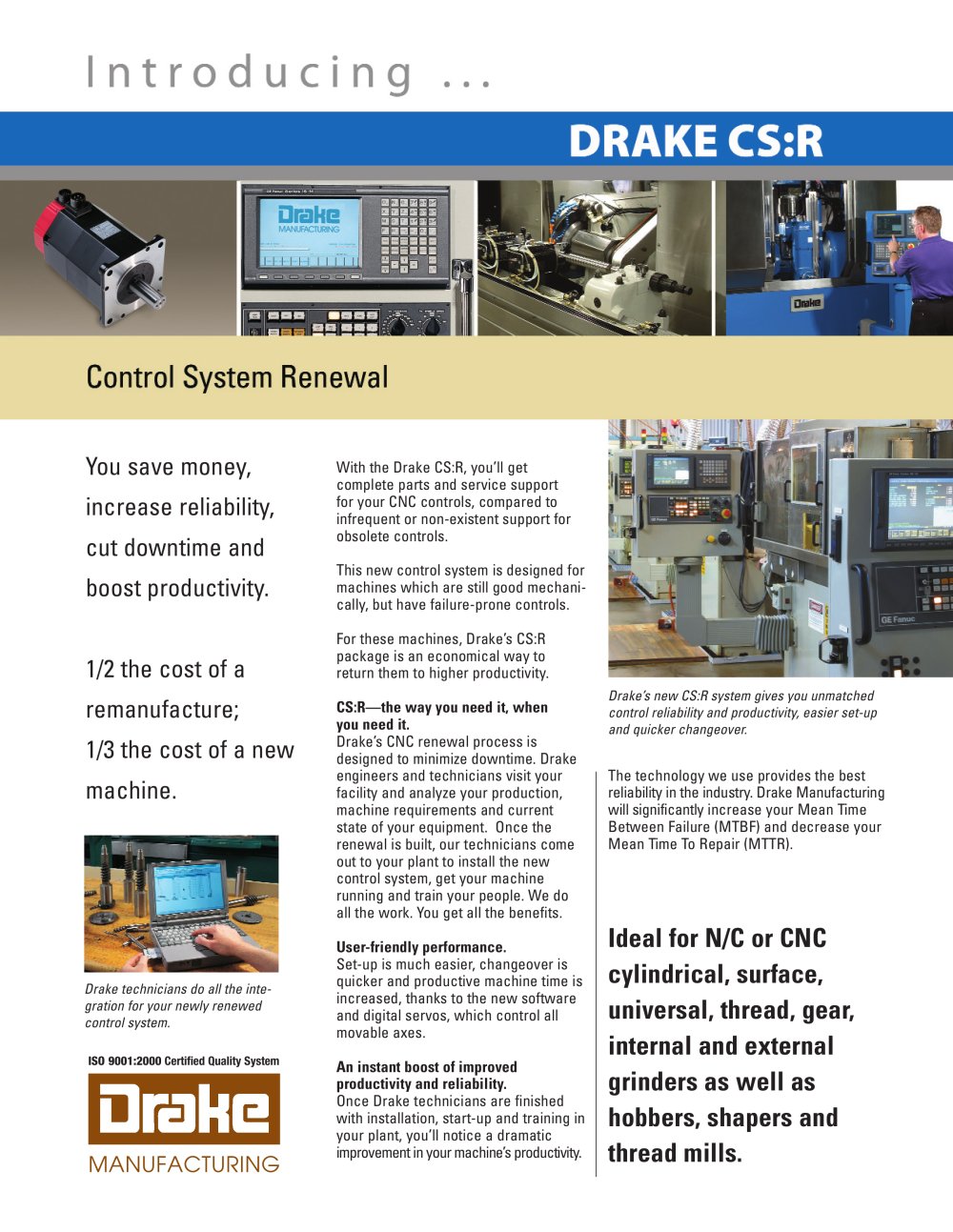

CSR Control Renewals
2Pages

An instant boost of improvedproductivity and reliability. Once Drake technicians are finished with installation, start-up and training in your plant, youll notice a dramatic improvement in your machineҒs productivity. The technology we use provides the bestreliability in the industry. Drake Manufacturing will significantlyincrease your Mean TimeBetween Failure (MTBF) and decrease your Mean Time To Repair (MTTR). User-friendly performance. Set-up is much easier, changeover is quicker and productive machine time is increased, thanks to the new software and digital servos, which control all movable axes. > With the Drake CS:R, youll get complete parts and service support for your CNC controls, compared to infrequent or non-existent support for obsolete controls.This new control system is designed formachines which are still good mechani- cally, but have failure-prone controls.For these machines, DrakeҒs CS:R package is an economical way to return them to higher productivity. CS:Rthe way you need it, whenyou need it. Drakeגs CNC renewal process is designed to minimize downtime. Drake engineers and technicians visit your facility and analyze your production, machine requirements and current state of your equipment. Once the renewal is built, our technicians come out to your plant to install the new control system, get your machine running and train your people. We do all the work. You get all the benefits. > Drakes new CS:R system gives you unmatchedcontrol reliability and productivity, easier set-up and quicker changeover. Drake technicians do all the inte- gration for your newly renewed control system. ISO 9001:2000 Certified Quality System size="-2">

Performance warranty. An optional service: custom programming. In term, the Drake warranty is a full year, with no limit on hours. In nature, itŒs basic: you expect performancewe deliver it. > MAX CONTROLLED AXES4 CNC+2 PMC(Options: 8 CNC+4 PMC)PROGRAMMING RESOLUTION0.0001 mmLinear0.00001 inchRotary0.0001 degSERVO FEEDBACKCounts per revolutionUp to 1,000,000LADDER׵S per step0.085 Number of steps8K, up to 24KPCMCIA MEMORY CARDStandardPROGRAM LOADINGRS232 + PCMCIADISPLAY10.4" LCDLadder MonitoringStandardPART PROGRAM STORAGE80 Meters StandardUp to 1280 M AvailableOPERATION HISTORYLast 8000...
