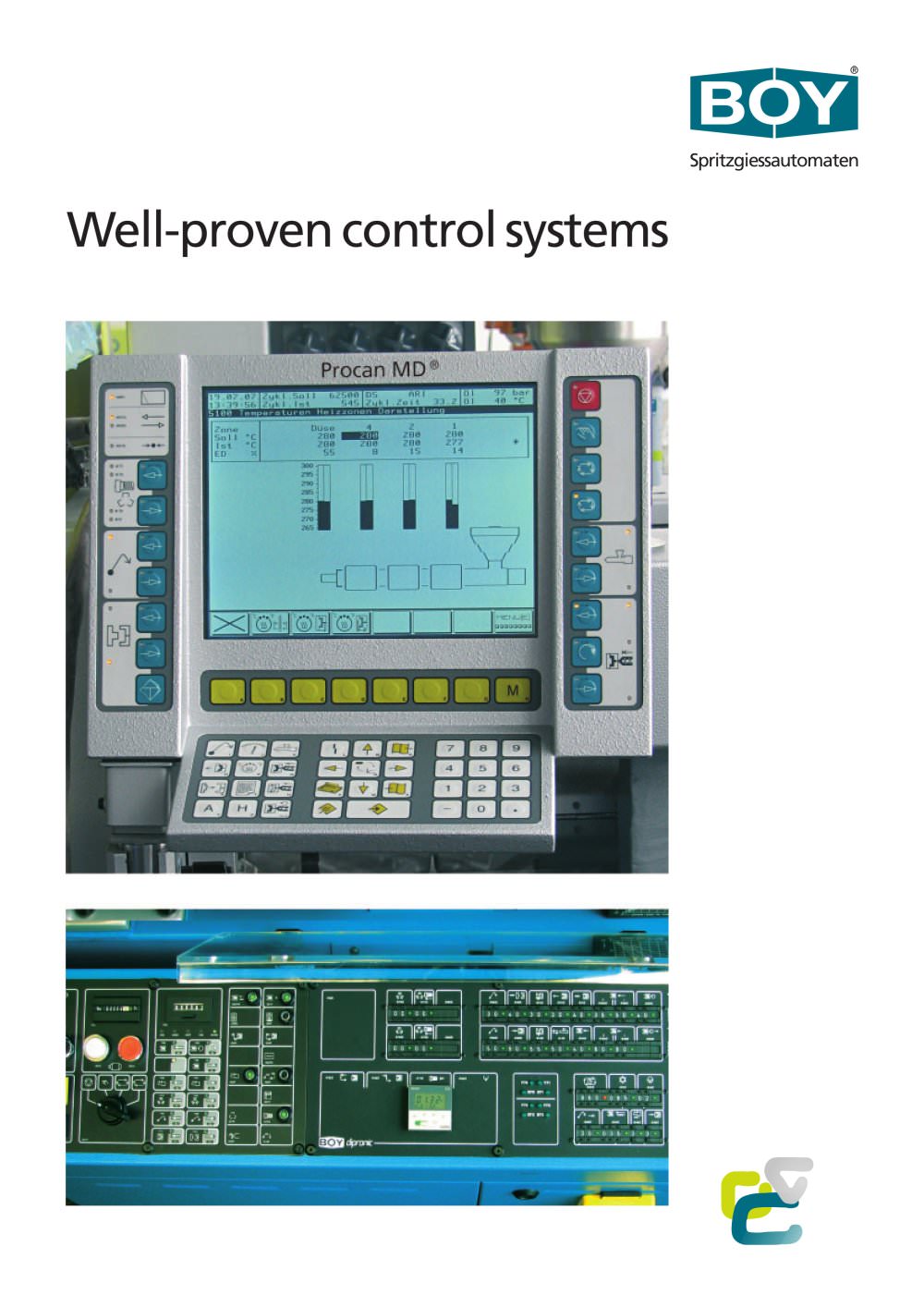

Spritzgiessautomaten Well-proven control systems

Spritzgiessautomaten 2 dipronic ® dipronic ® - simple - economical - reliable The dipronic ® is a hardware control system with microelectronic circuitry based on CMOS technology. More than 12,000 BOY injection moulding machines have been equipped with this control system since it was introduced in 1981. Its long period of service and frequency of use have made this control system an .industrial standard.. Use of the dipronic ® control system is always appropriate if only a small number of different moulds have to be changed occasionally or if the parts to be produced make it possible to dispense...

Spritzgiessautomaten 3 dipronic ® Options All standard options of the BOY range can also be controlled with the dipronic ® control system. Appropriate reserve slots are provided on the control panel and in the control cabinet for upgrading or retrofitting in the future. Hardware Microelectronic circuits based on CMOS technology and mounted on easily replaced plug-in circuit boards lie at the heart of the dipronic ® control system. This highly reliable hardware control system operates with exceedingly high response speeds unattainable with conventional software control. Temperature is controlled...

Spritzgiessautomaten Procan MD ® 4 Procan MD ® - precise - powerful - manageable The BOY injection moulding machines series M are equipped with the microprocessor control system Procan MD ®. The compact design and simple operation hide the immense efficiency of the Procan MD ® for which reliability is of top priority. Complex and also exceedingly small injected components can be produced with high precision and repeatability. All of the essential process parameters, such as temperatures, pressures and speeds, are controlled by the Procan MD ® for both the injection and clamping unit. In addition...

Spritzgiessautomaten 5 Procan MD ® Process data of the Procan MD ® Complete documentation of the production process can be ensured in several ways. Twelve freely selectable parameters can be recorded either as hardcopy or on to floppy disk. Further, this data can be shown either for each successive cycle or in the form of mean values. Procan MD ® delivers process monitoring trends (process control charts) for statistical process and quality control. The mean values with standard deviation can be graphically displayed on one screen for any two process parameters. Tolerance limits can be assigned...

Spritzgiessautomaten 6 Procan MD ® Unauthorized access to the Procan MD ® is prevented by a keycard. The keycard is of the same size as a credit card and available with three different priority levels. If the keycard is not inserted, the operator can merely check the settings and start the machine with the existing set parameters. When the keycard is inserted, the operator can access the input fields according to the given priority level. The main setup data records are saved in two stages. Frequently used setup data is saved directly in an electronic memory module (EEPROM). This permits rapid...

Spritzgiessautomaten 7 Procan MD ® Procan MD ® with dipronic ® display The screen display of the Procan MD ® can be changed and replaced by the familiar layout of the dipronic ® control simply by replacing an optional EPROM in the control system. Use of a machine control system which is not based on language is particularly advantageous when the machine is operated by people of different nationalities. Setpoints and actual values are read directly from the screen and entered via the keyboard. The control elements installed on the control cabinet of the dipronic ® system are not required in this...

Spritzgiessautomaten Procan ALPHA® Dr. Boy GmbH & Co. KG Neschener Str. 6 53577 Neustadt-Fernthal Germany Tel.: +49 / 2683 / 307-0 Fax: +49 / 2683 / 32771 Internet: www.dr-boy.de E-Mail: [email protected] Modification in design and equipment reserved E 08/07 A 000608 You will find a detailed description of the new Procan ALPHA® control in our leaflet .Compact Quality. on pages 5 - 8 or as a file for download from our homepage www.dr-boy.de (click button .leaflets.). The new Procan ALPHA® control: Precise control - operate more rapidely!
