Rotary Cylinders / Rotary Vane Actuators / Rack & Pinion Cylinders
Rotary Cylinders / Rotary Vane Actuators / Rack & Pinion Cylinders
The rack and pinion hydraulic cylinders typically feature 1 or 2 pistons, with the rack rod causing the pinion to rotate. When two hydraulic cylinders are used, they operate oppositely, doubling the rotation torque. These cylinders are custom-designed to meet specific application requirements, with rotation angles usually up to 180° or 280°.
Douce Hydro's Rotary Vane Actuators are ideal for applications requiring compactness, strength, efficiency, and low weight. They operate up to 3000 PSI / 200 bar. Single vane actuators offer rotation from 0 to 280°, while double vane actuators provide twice the torque with rotation from 0 to 100°.
A central shaft with an integral vane is enclosed in a cylindrical chamber, with pressure directed to one side of the vane to rotate the shaft. Double vane actuators offer less rotation but double the output torque, ranging from 5 In./Lbs to over 7000,000 In./Lbs (0.6 Nm to over 75,000 Nm).
Actuators can be customized for specific needs, using materials like aluminum or titanium for weight-sensitive designs, and stainless steel for corrosive environments. Additional features like external stops, potentiometers, or proximity sensors can be included.
- Low breakaway pressure (average 20 PSI / 1.5 bar)
- High efficiency (90-95%)
- Zero backlash and constant output torque
- No external moving parts and total anticorrosive protection
- Compact size compared to other actuators
- Patented taper roller bearing design for high thrust loads
Catalog excerpts

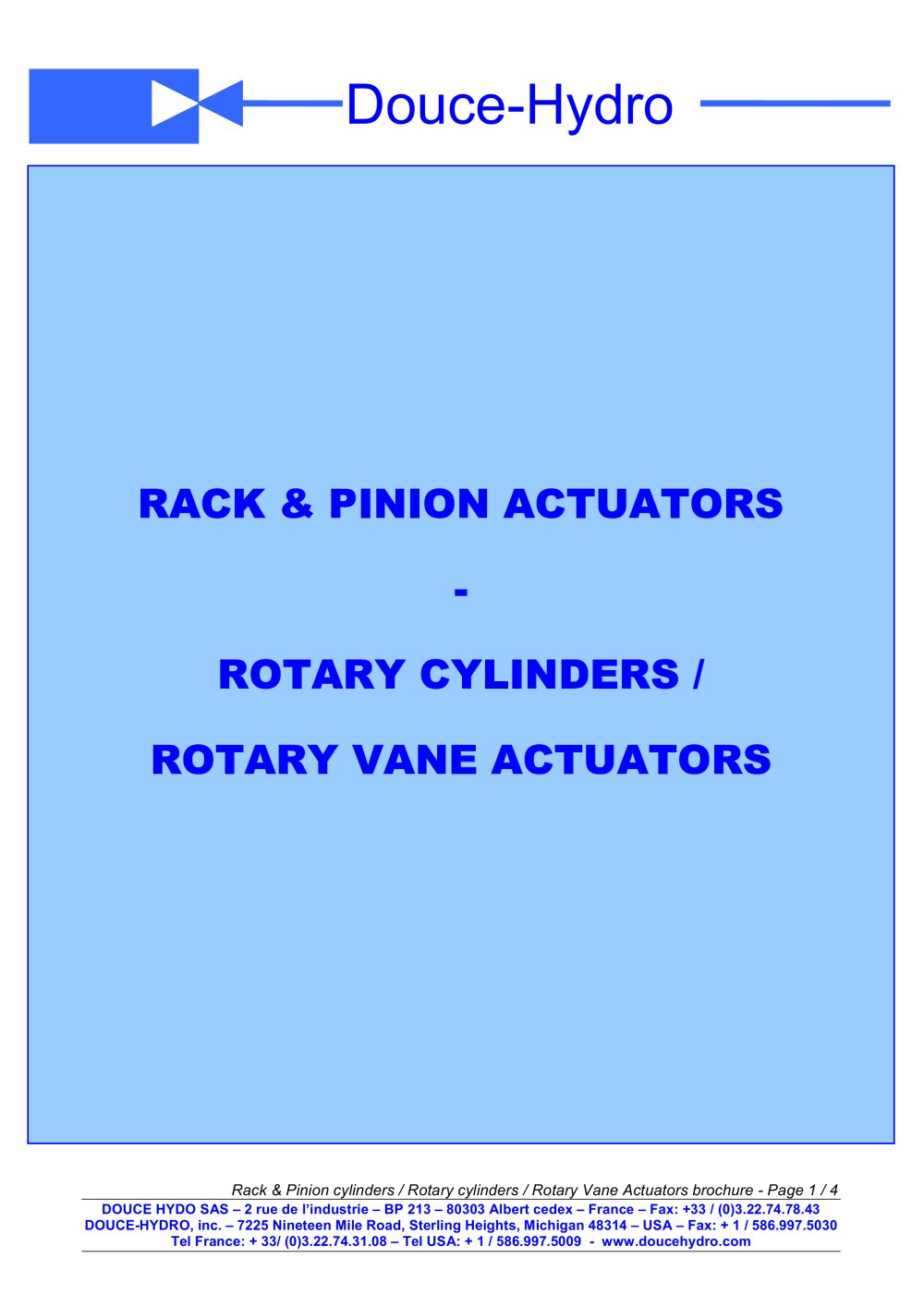

Douce-H y dro > RACK & PINION ACTUATORS - ROTARY CYLINDERS / ROTARY VANE ACTUATORS Rack & Pinion cylinders / Rotary cylinders / Rotary Vane Actuators brochure - Page 1 / 4 DOUCE HYDO SAS 2 rue de l֒industrie BP 213 ֖ 80303 Albert cedex France ֖ Fax: +33 / (0)3.22.74.78.43 DOUCE-HYDRO, inc. 7225 Nineteen Mile Road, Sterling Heights, Michigan 48314 ֖ USA Fax: + 1 / 586.997.5030 Tel France: + 33/ (0)3.22.74.31.08 ֖ Tel USA: + 1 / 586.997.5009 - www.doucehydro.com size="-3">
Open the catalog to page 1
Douce-H > I - RACK AND PINION ACTUATORS y dro > Therack & pinion hydraulic cylinders have usually 1 or 2 pistons. The rack rod makes the pinion rotate. If there are 2 hydraulic cylinders, they are working in opposite and multiply then by 2 the rotation torque. Usually, the angles are 180 or 280а maximum. Rack and pinion cylinders are considered Custom designed cylindersӔ. Therefore, we can adapt the cylinder to your typical application, whatever your specifications . Rack & Pinion cylinders / Rotary cylinders / Rotary Vane Actuators brochure - Page 2 / 4 DOUCE HYDO SAS 2 rue de l֒industrie BP...
Open the catalog to page 2
Douce-H y dro > II - ROTARY CYLINDERS / ROTARY VANE ACTUATORS In those applications where compactness, strength, efficiency and weight are important, fit a Douce Hydro Rotary Vane Actuator. Douce Hydro offers a wide choice of Rotary Vane Actuators operating up to 3000 PSI / 200 bar. Single vane actuator has a rotation from 0 to 280. Double vane actuator (with twice the torque) has a rotation from 0 to 100а. Rack & Pinion cylinders / Rotary cylinders / Rotary Vane Actuators brochure - Page 3 / 4 DOUCE HYDO SAS 2 rue de l֒industrie BP 213 ֖ 80303 Albert cedex France ֖ Fax: +33 / (0)3.22.74.78.43...
Open the catalog to page 3All DOUCE HYDRO catalogs and technical brochures
