Heavy Duty Hydraulic Cylinder 3000psi
Heavy Duty Hydraulic Cylinder 3000psi
Douce Hydro's heavy-duty hydraulic cylinders are designed for a nominal pressure of 3000 PSI, adhering to NFPA and ANSI/B93.15 – 1981 standards. These cylinders are suitable for various industrial applications, including construction, with or without cushioning.
- Pressure: 3000 PSI nominal pressure.
- Cushioning: Features a floating cushioning ring with automatic refeeding, adjustable on both sides.
- Fluid: Standard fluid is mineral oil.
- Working Temperatures: Operates between -10°F to +165°F.
- Velocity: Maximum velocity is 19 inches per second.
- Design: Piston rod made of medium carbon steel, ground and polished after coating; cylinder body is steel honed.
- Protection: Primer external coating on the body cylinder; hard-chromed piston rod. KERADOUCETM coating recommended for harsh conditions.
- Brace Ring: Necessary for long strokes, adding to the overall cylinder dimension.
- Swivels Type: Standard swivels are GE…DO from INA Elges or GE…ES from SKF, with other types available on demand.
- Packing: Cylinders are delivered with all ports plugged and threaded pieces protected by peelable varnish.
- Operating: Hydraulic circuits must be tight and bled to prevent seal destruction. A bleed device is equipped at both ends of the cylinder.
- Installation: Avoid impacts, vibrations, transverse loads, and bending efforts during mechanical installation and hydraulic follow-up.
- Stocking: Store cylinders in heated shelters under normal temperature and humidity conditions. For prolonged storage, cylinders can be supplied with oil upon request.
- Marking: All hydraulic cylinders will have an identification label for spare parts.
- Tightness - Code PP: Compound-seal and guiding through bearers for piston and rod tightness, suitable for low friction and speed applications.
- Tightness - Code DC: Utilizes lipseals and V packing for hard working conditions, recommended for industries like rolling mills and steel.
- Serie DHI-MS2 – Side lugs
- Serie DHI-MT2 – Cap trunnion mounting
- Serie DHI-MS4 – Side tapped
- Serie DHI-MT4 – Center trunnion mounting
- Serie DHI-MX2 – Cap tie rods extended
- Serie DHI-MX3 – Head tie rods extended
- Serie DHI-ME5 – Head rectangular mounting
- Serie DHI-ME6 – Cap rectangular mounting
Details include various bore sizes, rod diameters, and thread specifications for different mounting configurations.
This document provides technical specifications and data for Douce Hydro's heavy-duty hydraulic cylinders, specifically the Serie DHI models, designed for high-pressure applications up to 3000 PSI and available in various mounting configurations.
The document details several series of hydraulic cylinders, including Serie DHI - MT1, MT2, MT4, MP1, ME5, and ME6, with comprehensive dimensional data.
Extensive tables list dimensions and specifications for each cylinder type, such as bore size, rod diameter, and mounting dimensions, crucial for selecting the appropriate cylinder for specific applications.
Formulas for calculating the cushioning effect in hydraulic cylinders are provided, considering factors like energy, pressure, velocity, and mass inertia, covering horizontal, oblique, and vertical orientations.
Detailed tables for calculating push and pull forces at various pressures (from 50 PSI to 3000 PSI) for different bore and rod sizes, essential for understanding performance capabilities under different operating conditions.
This document serves as a comprehensive guide for engineers and technicians in selecting and utilizing Douce Hydro's hydraulic cylinders, providing all necessary specifications, dimensions, and calculations to ensure proper application and performance in high-pressure environments.
Instructions for ordering DHI series hydraulic cylinders are provided, including choices for bore diameter, rod diameter, mounting device, working conditions, piston rod coating, piston seals, rod seals, cushioning, ports, stroke, brace ring for long stroke, and rod end.
Contact details for Douce Hydro's sales managers are provided for different regions, including Europe, Asia, Africa, South America, Oceania, North America, and France.
The document emphasizes the company's commitment to quality, stating, "We stand behind each cylinder we manufacture."
Catalog excerpts

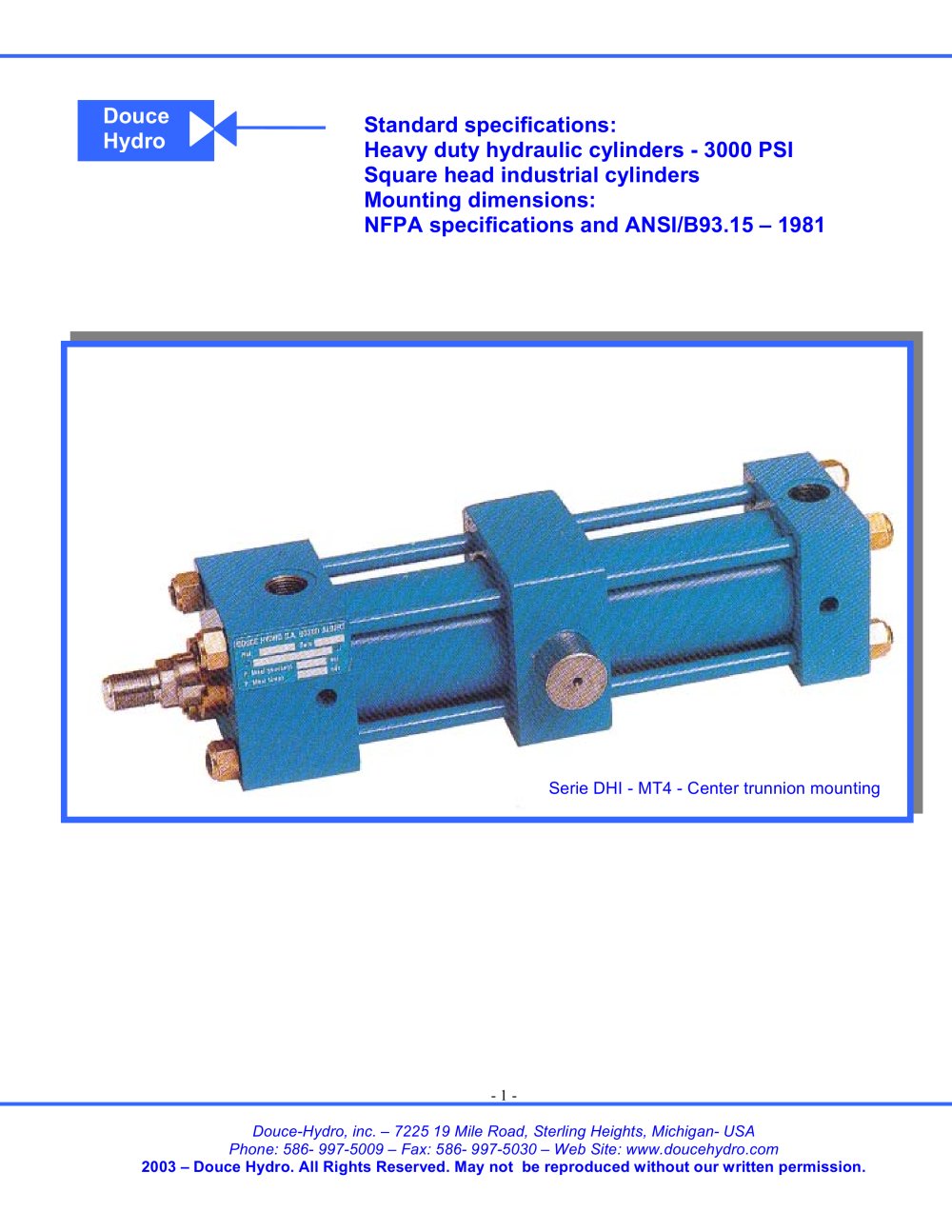

DouceHydro Standard specifications: Heavy duty hydraulic cylinders - 3000 PSI Square head industrial cylinders Mounting dimensions: NFPA specifications and ANSI/B93.15 – 1981 Serie DHI - MT4 - Center trunnion mounting - 1 - Douce-Hydro, inc. – 7225 19 Mile Road, Sterling Heights, Michigan- USA Phone: 586- 997-5009 – Fax: 586- 997-5030 – Web Site: www.doucehydro.com 2003 – Douce Hydro. All Rights Reserved. May not be reproduced without our written permission.
