Shielded Bag Test System
1 / 2 PagesView full catalog
Shielded Bag Test System
Product catalog summary

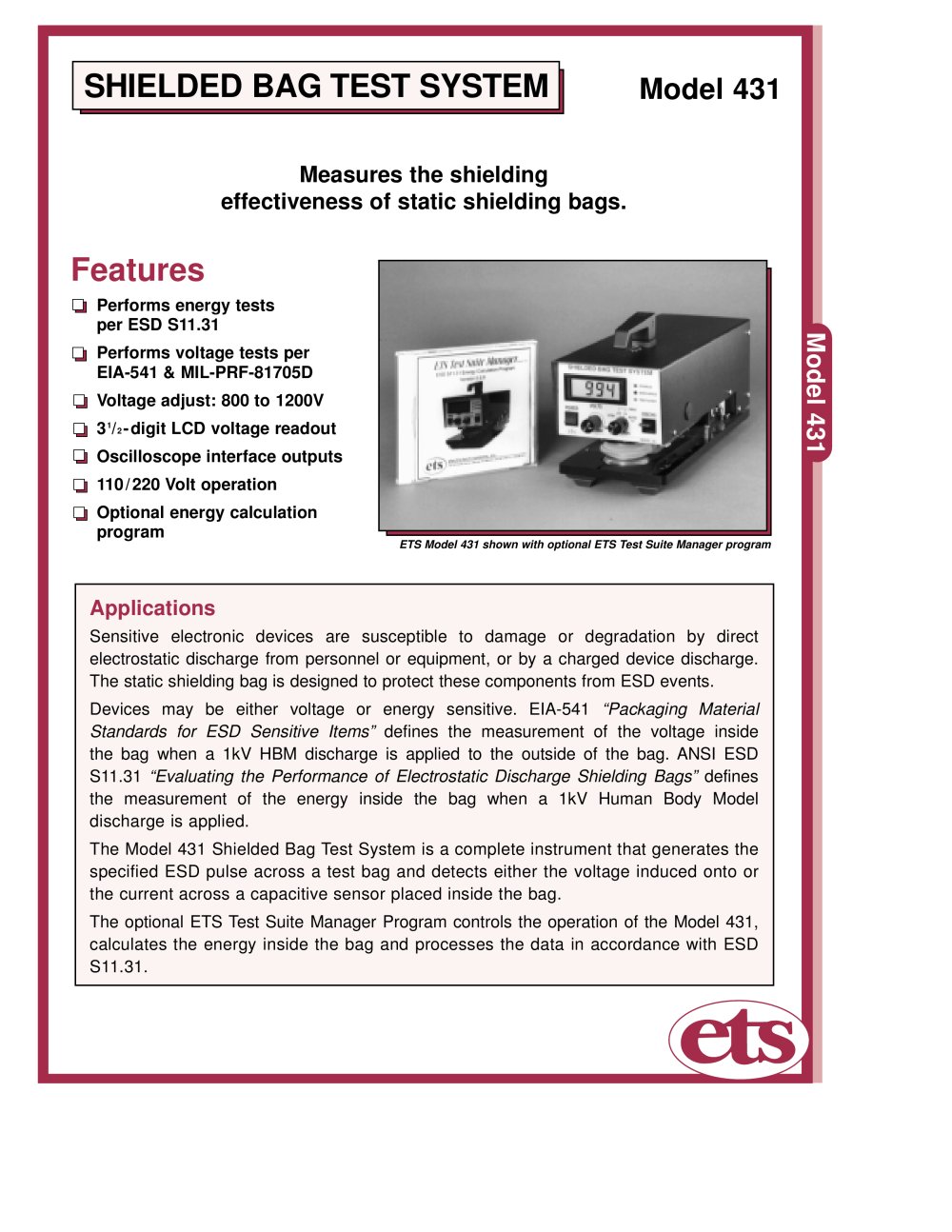

Overview: The Model 431 Shielded Bag Test System is designed to measure the shielding effectiveness of static shielding bags, protecting sensitive electronic devices from electrostatic discharge (ESD) events. It performs tests in accordance with EIA-541 and ANSI ESD S11.31 standards.
Applications: The system is used to protect voltage or energy-sensitive electronic components from ESD damage, which can occur from personnel or equipment discharges.
Specifications:
- Voltage adjustability from 800 to 1200V with a 3.5-digit LCD readout.
- Discharge circuit specifications include 100 pf /1500 Ohms for ESD S11.31 and 200 pf /1500 Ohms for EIA-541.
- Discharge waveform rise time is 6 ±2 nsec (0 Ohms) and fall time is 150 ±15 nsec (0 Ohms).
- Output energy is 50 ± 5 uJ.
- Switching method uses a bounceless SPDT mercury wetted relay.
Features:
- Performs energy tests per ESD S11.31 and voltage tests per EIA-541 & MIL-PRF-81705D.
- Oscilloscope interface outputs and optional energy calculation program.
- Operates on 110/220 Volt power supply.
Components:
- Includes a variable power supply, mercury wetted charge/discharge relay, capacitive sensor, and controlled force discharge electrode.
- Standard interfacing with Tektronix CT-1 current sensor and built-in 100:1 voltage attenuators.
Operation: The system can be controlled manually or via the optional ETS Test Suite Manager Program, which automates the discharge sequence and processes data according to ESD S11.31.
Interface and Compatibility:
- Compatible with user-supplied oscilloscopes and computers with a minimum of 16 MB RAM and Windows 95®.
- Includes cables for interfacing with Tektronix TDS series oscilloscopes and computer parallel ports.
Warranty: One-year warranty provided.
Note: Specifications are subject to change without notice as part of ETS's policy to improve product lines.
