Product catalog summary
Overview: The ISOPROBE® Electrostatic Voltmeter Model 279 is a compact, high-performance instrument designed for non-contact measurement of electrostatic surface potential. It is suitable for a variety of industrial applications, offering reliability and precision at a moderate price.
Features:
  • Low profile half rack size for multi-channel applications.
  • Interchangeable probes for versatile use.
  • Selectable recorder output range.
  • LED meter with blackout switch for darkroom applications.
Applications: The voltmeter is ideal for electrophotographic and xerographic measurements, IC manufacturing, radiation effects studies, electret research, static electrification, and process monitoring and control.
Specifications:
  • Range: ±3000 volts, auto polarity.
  • Accuracy: 0.1%, ±0.003%/°C over +20 to +40°C.
  • Response Speed: <3ms for typical input step.
  • Settling Time: <3.5ms to 1% of 1kV step input.
  • Frequency Response: ±3db to >300Hz.
  • Drift: <0.01V/hr after 1 hr warm-up.
  • Noise: <0.3V rms or 2 volts peak-to-peak.
  • Surface Resolution: Determined by probe aperture size and separation.
  • Recorder Output: Compressed analog output, selectable division.
  • Size and Weight: 1.7 x 8.2 x 15.1 inches, 4 lb.
  • Power Requirement: 100, 115, 230 VAC, 50/60Hz, 15 watts.
  • Approvals: Pending CE, UL.
Probes: The Model 279 uses Monroe Electronics Type 1034E (end-viewing) or 1034S (side-viewing) probes. These probes are equipped with a 1kHz tuning fork chopping driver and onboard hybrid microcircuit preamp, usable from -50°C to +80°C. Optional configurations are available for different resolutions and light decay measurements.
See more

Catalog excerpts

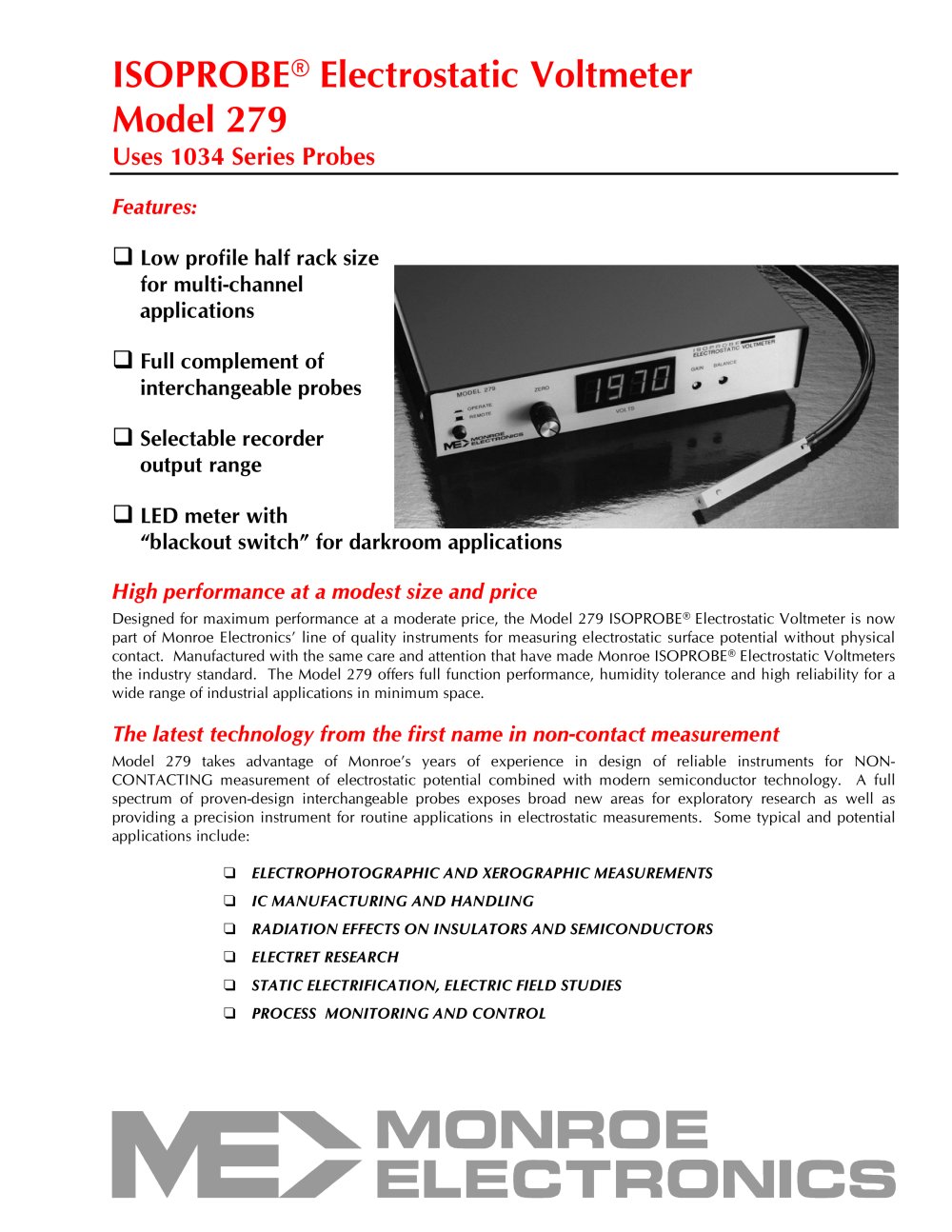

Electrostatic Voltmeter-1

Designed for maximum performance at a moderate price, the Model 279 ISOPROBEԮ Electrostatic Voltmeter is nowpart of Monroe Electronics line of quality instruments for measuring electrostatic surface potential without physical contact. Manufactured with the same care and attention that have made Monroe ISOPROBEҮ Electrostatic Voltmeters the industry standard. The Model 279 offers full function performance, humidity tolerance and high reliability for a wide range of industrial applications in minimum space. > Q ELECTROPHOTOGRAPHIC AND XEROGRAPHIC MEASUREMENTS Model 279 takes advantage of Monroes years of experience in design of reliable instruments for NON- CONTACTING measurement of electrostatic potential combined with modern semiconductor technology. A full spectrum of proven-design interchangeable probes exposes broad new areas for exploratory research as well as providing a precision instrument for routine applications in electrostatic measurements. Some typical and potential applications include: Q IC MANUFACTURING AND HANDLING Q RADIATION EFFECTS ON INSULATORS AND SEMICONDUCTORS Q ELECTRET RESEARCH Q STATIC ELECTRIFICATION, ELECTRIC FIELD STUDIES Q PROCESS MONITORING AND CONTROL >

 Open the catalog to page 1
