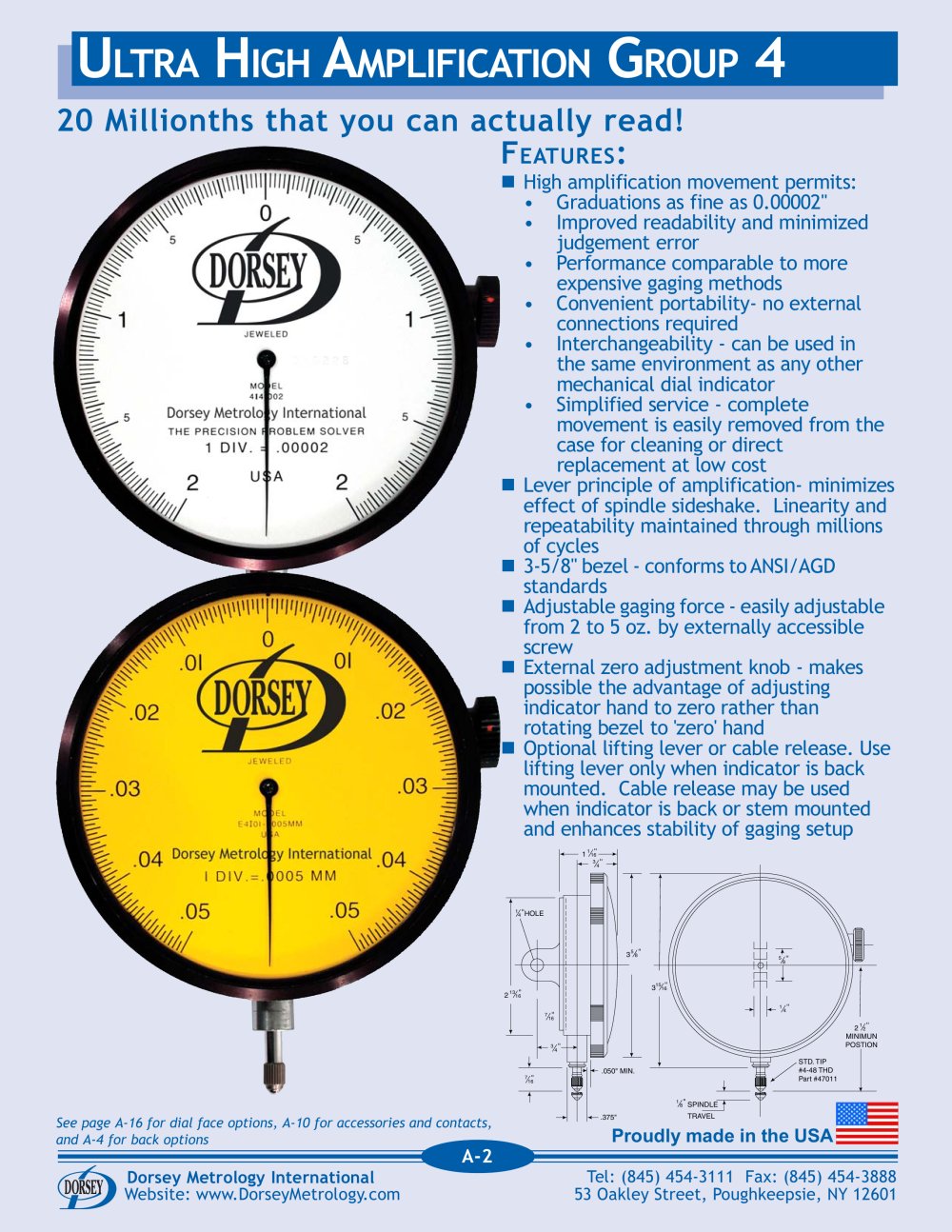

Dial Indicators Group 4

Product catalog summary

Features:

High amplification movement allows for fine graduations of 0.00002", enhancing readability and reducing judgment errors.
Performance is comparable to more expensive gauging methods, with the added benefit of portability and no need for external connections.
The device is interchangeable with other mechanical dial indicators and offers simplified serviceability, as the movement can be easily removed for cleaning or replacement.
The lever principle of amplification minimizes spindle sideshake, maintaining linearity and repeatability over millions of cycles.
The 3-5/8" bezel conforms to ANSI/AGD standards.
Gaging force is adjustable from 2 to 5 oz. via an externally accessible screw.
An external zero adjustment knob allows for easy zeroing of the indicator hand.
Optional lifting lever or cable release enhances stability, with specific use cases depending on mounting.

Specifications:

Spindle travel is 0.375" with a standard tip #4-48 thread.
Dimensions include a minimum position of 2 1/2" and various other measurements detailed in the document.

Additional Information:

For dial face options, accessories, contacts, and back options, refer to pages A-16, A-10, and A-4 respectively.
