Fiber Collimators Arrays
Product catalog summary

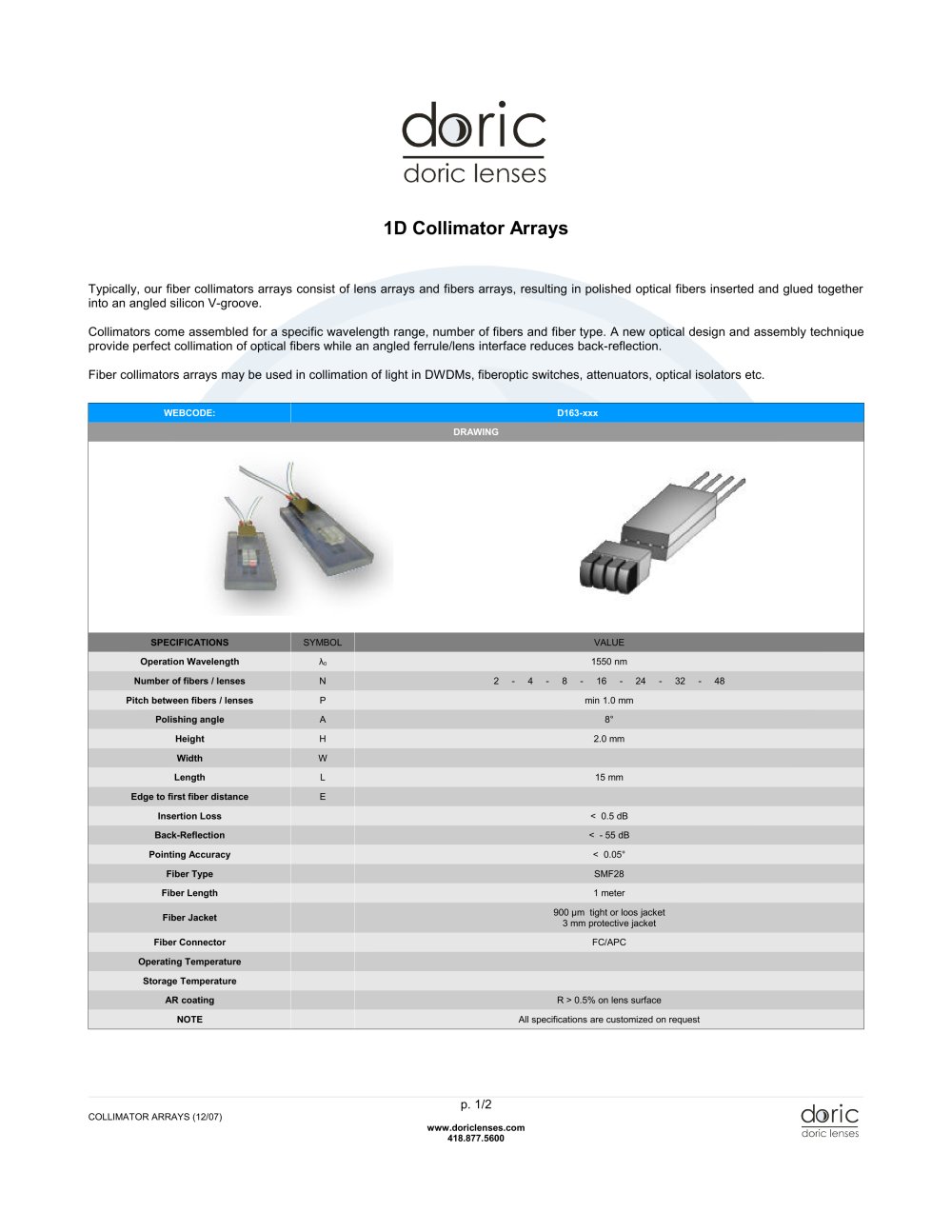

1D Collimator Arrays
- Construction: Composed of lens arrays and fiber arrays, with polished optical fibers inserted and glued into an angled silicon V-groove.
- Design: Assembled for specific wavelength ranges, number of fibers, and fiber types. Features a new optical design and assembly technique for perfect collimation and reduced back-reflection.
- Applications: Used in DWDMs, fiberoptic switches, attenuators, optical isolators, etc.
- Specifications:
- Operation Wavelength: 1550 nm
- Number of Fibers/Lenses: 2, 4, 8, 16, 24, 32, 48
- Pitch: Minimum 1.0 mm
- Polishing Angle: 8°
- Height: 2.0 mm
- Length: 15 mm
- Insertion Loss: < 0.5 dB
- Back-Reflection: < -55 dB
- Pointing Accuracy: < 0.05°
- Fiber Type: SMF28
- Fiber Length: 1 meter
- Fiber Jacket: 900 µm tight or loose jacket, 3 mm protective jacket
- Fiber Connector: FC/APC
- AR Coating: R > 0.5% on lens surface
- Customization: All specifications can be customized on request.
- Construction: Similar to 1D arrays, with polished optical fibers in an angled silicon V-groove.
- Design: Assembled for specific wavelength ranges, number of fibers, and fiber types, with enhanced collimation and reduced back-reflection.
- Applications: Suitable for DWDMs, fiberoptic switches, attenuators, optical isolators, etc.
- Specifications:
- Operation Wavelength: 1550 nm
- Number of Fibers/Lenses: 2x2, 4x4, 8x8
- Pitch: Minimum 4.0 mm
- Polishing Angle: 8°
- Insertion Loss: < 0.5 dB
- Back-Reflection: < -55 dB
- Pointing Accuracy: < 0.05°
- Fiber Type: SMF28
- Fiber Length: 1 meter
- Fiber Jacket: 900 µm buffer
- Fiber Connector: FC/APC
- AR Coating: R > 0.5% on lens surface
- Customization: All specifications can be customized on request.
