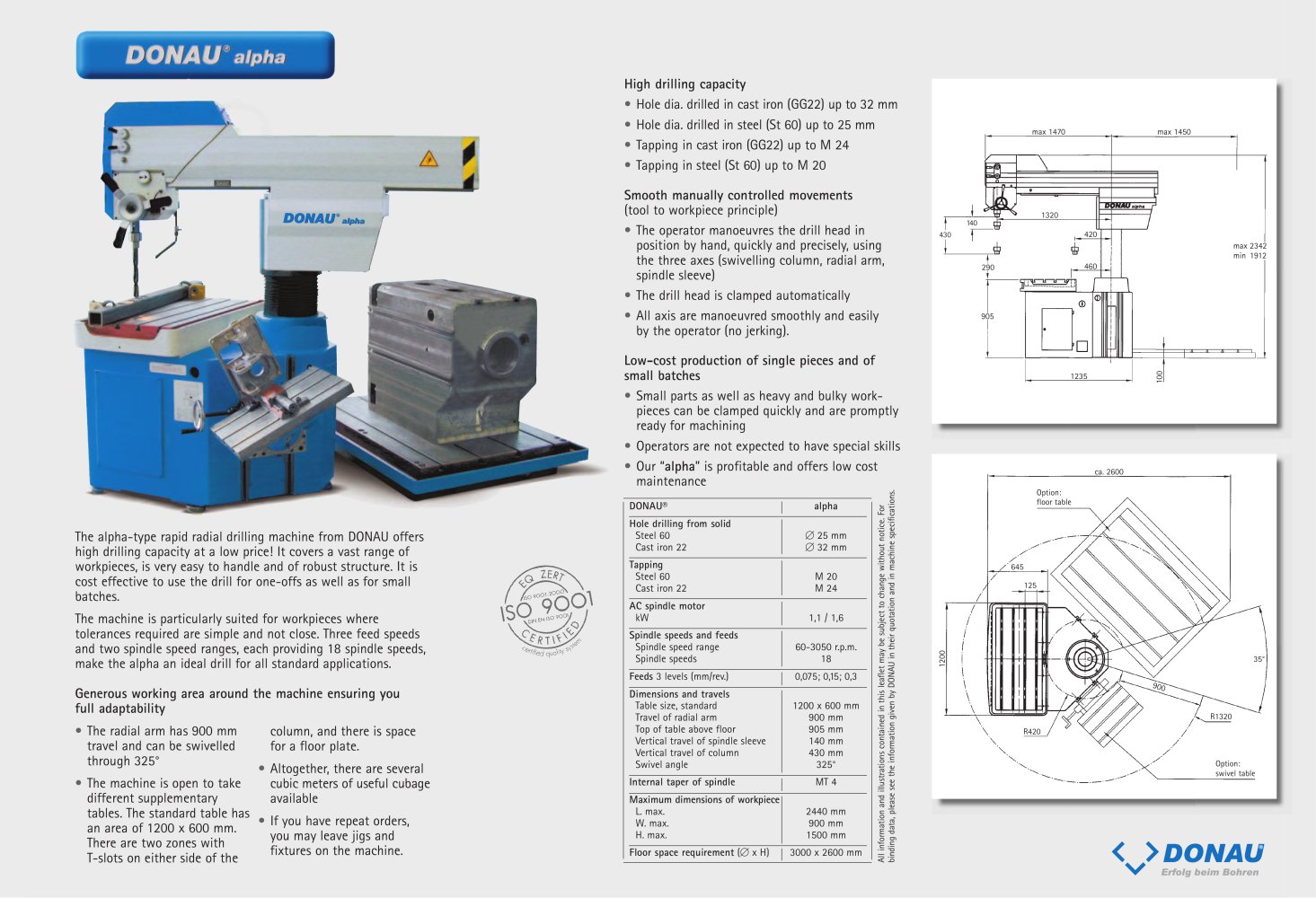

High drilling capacity Hole dia. drilled in cast iron (GG22) up to 32 mm Օ Hole dia. drilled in steel (St 60) up to 25 mm > max 1470max 14501320420 Tapping in cast iron (GG22)up to M 24 Օ Tapping in steel (St 60)up to M 20 Smooth manually controlled movements (tool to workpiece principle) The operator manoeuvres the drill head in position by hand, quickly and precisely, using the three axes (swivelling column, radial arm, spindle sleeve) > 140 430 290905max 2342min1912 Օ The drill head is clamped automatically All axis are manoeuvred smoothly and easily by the operator (no jerking). Low-cost production of single pieces and ofsmall batches > 100 Օ Small parts as well as heavy and bulky work- pieces can be clamped quickly and are promptly ready for machining Operators are not expected to have special skills Օ Our alpha Ӕis profitable and offers low cost maintenance > Option:floor tableca. 2600 35 645 DONAUЮalphaHole drilling from solid The alpha-type rapid radial drilling machine from DONAU offers high drilling capacity at a low price! It covers a vast range of workpieces, is very easy to handle and of robust structure. It is cost effective to use the drill for one-offs as well as for small batches.The machine is particularly suited for workpieces where tolerances required are simple and not close. Three feed speeds and two spindle speed ranges, each providing 18 spindle speeds, make the alpha an ideal drill for all standard applications. Generous working area around the machine ensuring you full adaptability > Steel 60 25 mmCast iron 22 32 mm Tapping AC spindle motor Steel 60M 20 Cast iron 22M 24 kW1,1 / 1,6 Spindle speeds and feeds Feeds Spindle speed range60-3050 r.p.m. Spindle speeds18 3 levels (mm/rev.) Internal taper of spindle MT 4 1200 Maximum dimensions of workpiece 0,075; 0,15; 0,3 900 Dimensions and travels Floor space requirement L. max.2440 mm W. max. 900 mm H. max.1500 mm ( x H)3000 x 2600 mm Table size, standard1200 x 600 mm Travel of radial arm900 mm Top of table above floor905 mm Vertical travel of spindle sleeve140 mm Vertical travel of column430 mm Swivel angle325 Е The radial arm has 900 mm travel and can be swivelled through 325 > R420R1320 Е Altogether, there are several cubic meters of useful cubage available > Option:swivel table 125 460 1235 The machine is open to take different supplementary tables. The standard table has an area of 1200 x 600 mm. There are two zones with T-slots on either side of the column, and there is space for a floor plate. Օ If you have repeat orders, you may leave jigs and fixtures on the machine. > All information and illustrations contained in this leaflet may be subject to change without notice. For binding data, please see the information given by DONAU in their quotation and in machine specifications. size="-5">
