DONALDSON

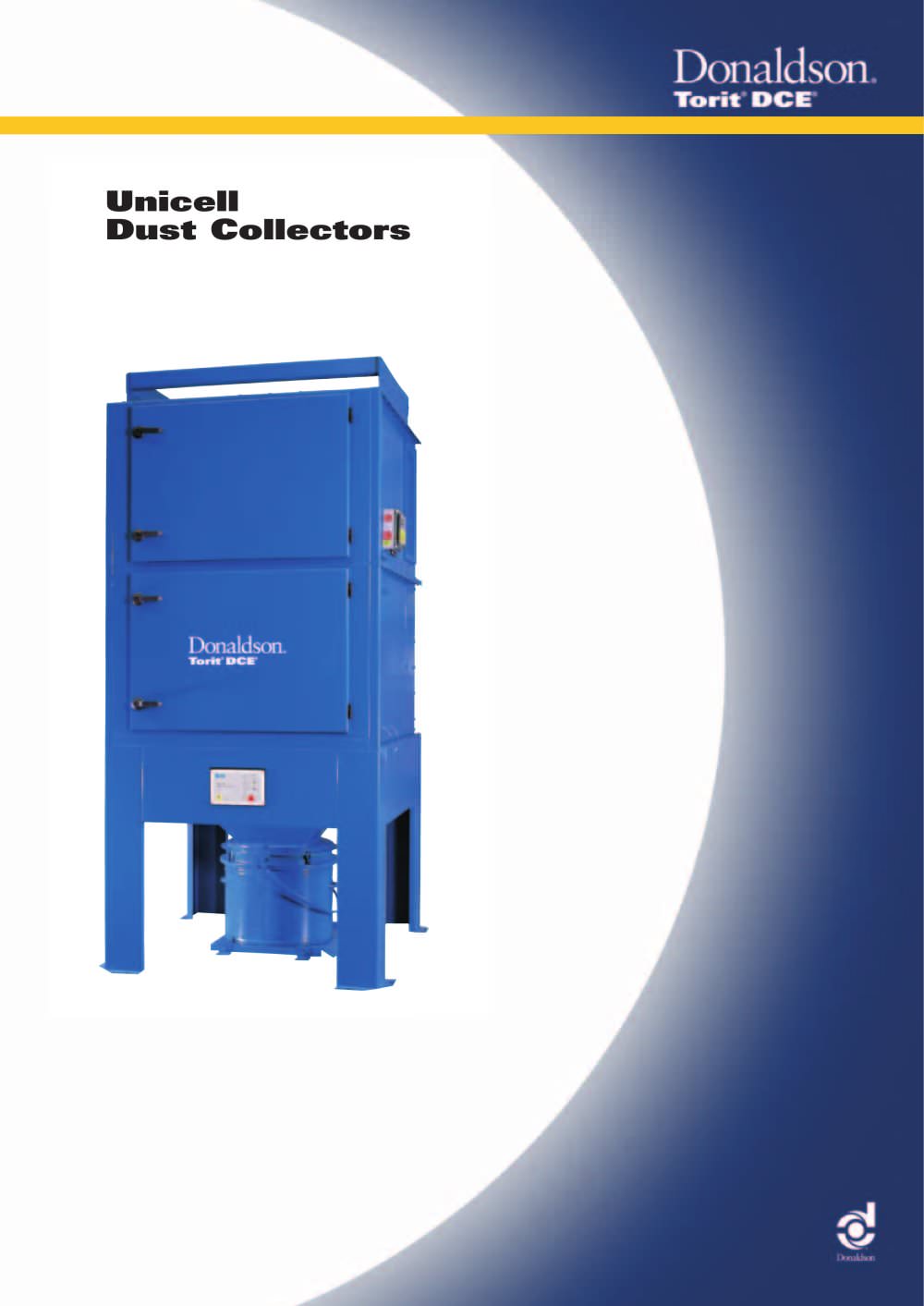

Unicell Dust Collectors

Unicell Dust Collectors

Product catalog summary

Overview: Unicell dust collectors, exclusively from Donaldson, offer enhanced efficiency and cost-effectiveness with fewer components and up to 25% more media. They are designed for a wide range of filtration needs, providing high performance in both small and large manufacturing operations.

Key Features:

Compact design conserving plant floor space.
High-performance cartridge filters with no-tool replacement.
Continuous automatic reverse jet cleaning for uninterrupted operation.
Quiet operation with fan noise levels between 66-82dB (A).

Filtration Performance:

Effective filtration with each element providing 5m² of filtration area.
Wide pleat spun-bonded polyester construction for efficient cleaning.
Handles air volumes up to 12,000 m³ per hour with filtration areas from 10m² to 90m².

Product Range: Unicell collectors are available in various sizes to suit diverse applications, with models ranging from C10-3 to C90-3, offering filtration areas from 10m² to 90m².

Standard Features and Options:

Proven technology with reverse jet cleaning.
Easy installation with circular inlet and fork lifting facility.
Various equipment options including bin, rotary valve, and hopper types.
Media options include spun-bonded polyester and Tetratex with anti-static options.

Customer Support and Innovation: Donaldson has been a leader in air filtration solutions for nearly 90 years, offering a wide range of innovative products under the Torit and DCE brands. They provide global support and solutions for various filtration needs.

Catalog excerpts

Precisely The Right Fit Unicell dust collectors are more efficient and cost effective than ever. Only available fromDonaldson, Unicell dust collectors now have fewer components and in most instances provide up to 25 percent more media. One of the most user-friendly and highly efficient dust collectors on the market, Unicell delivers unparalleled performance in a variety of units tailored to a wide range of filtration needs. Unicell accommodates a variety of applications and air volumes in small and largemanufacturing operations alike. Unicells design conserves valuable manufacturing plant floor...

Open the catalog to page 2

Filtration Engineered for Performance When you need an innovative and highly efficient dust filtration solution, turn to thedust collector designed with the user in mindDonaldsonגs Unicell. Effective Filtration Unicellfilter elements are at the heart of the Unicell range of collectors, designed for high filtration levels with each element providing 5m Օ Compact Footprint Modular, self-contained Unit range ofUnicell collectors occupy minimal floor space and fit virtually any modern manufacturing plant design. > 2 Օ of effective filtrationarea and constructed of wide pleat spun-bonded polyester...

Open the catalog to page 3

ModelFiltrationFiltration AreaNo. of TiersAreaper element (m > 2 )Filters C10-310m > 2 521C20-320m > 2 541C30-330m > 2 561C40-340m > 2 582C50-350m > 2 5102C60-360m > 2 5122C75-375m > 2 5153C90-390m > 2 5183 DescriptionMediaArea DimensionsTempCon-End CapM > 2 Limitductive > UNC Unicell260g Spunbonded 5.070x475x100460˚CNoPolyurethaneCartridge, Std 5.0m 2 PolyesterUNCUnicellCartridge,260g Anti-Static 5.070x475x100460˚CYesPolyurethaneAnti-Static 5.0m 2 Spunbonded Polyester(in metal tray)UNC Unicell Tobacco260g Spunbonded 5.070x475x100460˚CNoEpoxy ResinCartridge, Std 5.0m 2 PolyesterUNC Unicell Tobacco260g...

Open the catalog to page 4

Standard Features and Options Standard Features ForUnicell Range Media Options For Unicell Range Proven technologyՕReverse jet cleaning for continuousoperationCircular inlet for easy connection to incoming ductworkՕFork lifting facility for ease of installationWide range of fans to suit every applicationՕNo-tool filter replacement for ease of maintenance Spun-bonded polyester with anti-static optionՕTetratex with anti-static optionElements suitable for tobacco applicationswith anti-static optionՕElements with no silicon for flour productapplications with anti-static option Equipment Options For...

Open the catalog to page 5
