Ultraporex SB Particle Filter Element

Ultraporex SB Particle Filter Element
2Pages

Catalog excerpts

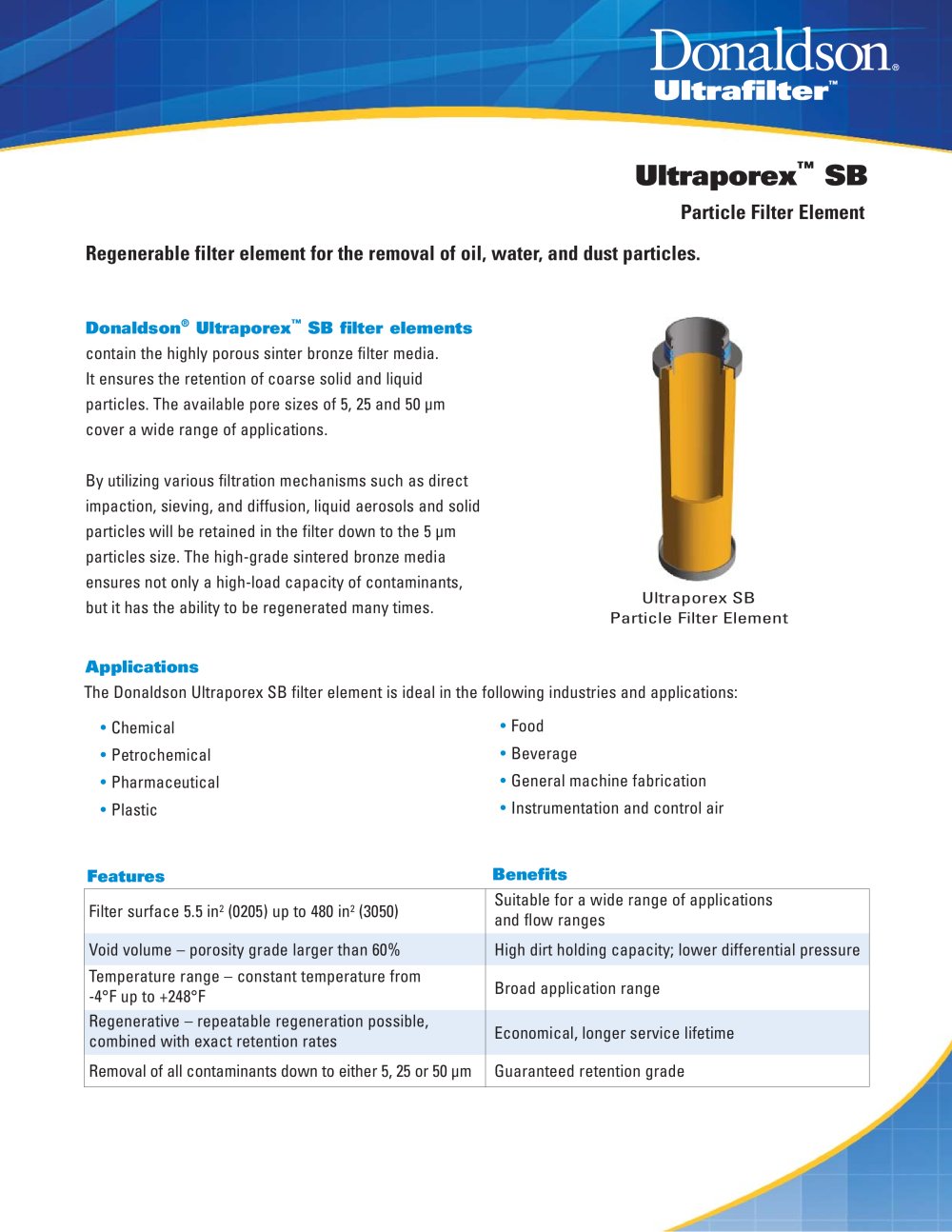

Ultraporex SB Particle Filter Element - 1

Regenerable filter element for the removal of oil, water, and dust particles. Donaldson® Ultraporex™ SB filter elements contain the highly porous sinter bronze filter media. It ensures the retention of coarse solid and liquid particles. The available pore sizes of 5, 25 and 50 ìm cover a wide range of applications. By utilizing various filtration mechanisms such as direct impaction, sieving, and diffusion, liquid aerosols and solid particles will be retained in the filter down to the 5 ìm particles size. The high-grade sintered bronze media ensures not only a high-load capacity of contaminants, but it has the ability to be regenerated many times. ™ Particle Filter Element Ultraporex™ SB Ultraporex SB Particle Filter Element • Chemical • Petrochemical • Pharmaceutical • Plastic • Food • Beverage • General machine fabrication • Instrumentation and control air Features Benefits Filter surface 5.5 in2 (0205) up to 480 in2 (3050) Suitable for a wide range of applications and flow ranges Void volume – porosity grade larger than 60% High dirt holding capacity; lower differential pressure Temperature range – constant temperature from -4°F up to +248°F Broad application range Regenerative – repeatable regeneration possible, combined with exact retention rates Economical, longer service lifetime Removal of all contaminants down to either 5, 25 or 50 ìm Guaranteed retention grade Applications The Donaldson Ultraporex SB filter element is ideal in the following industries and applications:

Open the catalog to page 1

Ultraporex SB Particle Filter Element - 2

qÉä UMMKRQPKPSPQ=Erp^F qÉä UMMKPQPKPSPV=EïáíÜáå=jÉñáÅçF c~ñ TTMKQQUKPURQ ÅçãéêÉëëÉÇ~áê]Ççå~äÇëçåKÅçã Ççå~äÇëçåKÅçã açå~äÇëçå=`çãé~åóI=fåÅK `çãéêÉëëÉÇ=^áê=C=d~ë mKlK=_çñ=NOVV jáååÉ~éçäáëI=jk RRQQMJNOVV=rKpK^K fåÑçêã~íáçå=áå=íÜáë=ÇçÅìãÉåí áë=ëìÄàÉÅí=íç=ÅÜ~åÖÉ=ïáíÜçìí=åçíáÅÉK «=OMMV=açå~äÇëçå=`çKI=fåÅK _ìääÉíáå=kçK=rcp_MNQU räíê~éçêÉñÄ p_=MRJMV Ultraporex™ SB Specifications Retention Rate 100% in gases; defined rate of particles larger than the pore size Maximum Differential Pressure: 29 psi at 68°F regardless of system pressure Initial Differential Pressure at Nominal Flow 0.29 psi (25 um...

Open the catalog to page 2

Ultraporex SB Particle Filter Element 2Pages
