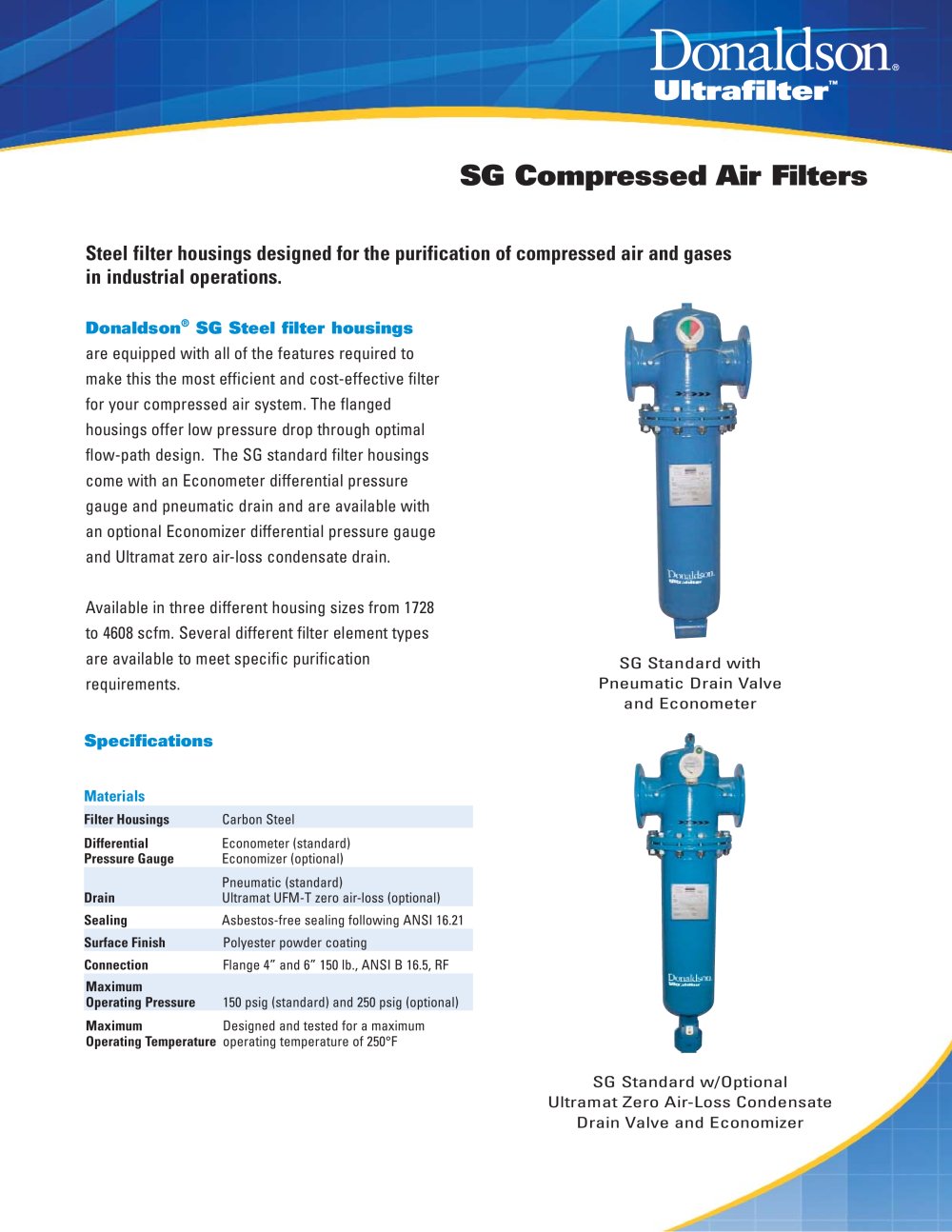

Steel filter housings designed for the purification of compressed air and gases in industrial operations. Donaldson® SG Steel filter housings are equipped with all of the features required to make this the most efficient and cost-effective filter for your compressed air system. The flanged housings offer low pressure drop through optimal flow-path design. The SG standard filter housings come with an Econometer differential pressure gauge and pneumatic drain and are available with an optional Economizer differential pressure gauge and Ultramat zero air-loss condensate drain. Available in three different housing sizes from 1728 to 4608 scfm. Several different filter element types are available to meet specific purification requirements. ™ SG Compressed Air Filters SG Standard with Pneumatic Drain Valve and Econometer SG Standard w/Optional Ultramat Zero Air-Loss Condensate Drain Valve and Economizer Materials Filter Housings Carbon Steel Differential Pressure Gauge Econometer (standard) Economizer (optional) Drain Pneumatic (standard) Ultramat UFM-T zero air-loss (optional) Sealing Asbestos-free sealing following ANSI 16.21 Surface Finish Polyester powder coating Connection Flange 4” and 6” 150 lb., ANSI B 16.5, RF Maximum Operating Pressure 150 psig (standard) and 250 psig (optional) Maximum Operating Temperature Designed and tested for a maximum operating temperature of 250°F Specifications

Open the catalog to page 1

qÉä UMMKRQPKPSPQ=Erp^F qÉä UMMKPQPKPSPV=EïáíÜáå=jÉñáÅçF c~ñ TTMKQQUKPURQ ÅçãéêÉëëÉÇ~áê]Ççå~äÇëçåKÅçã ïïïKÇçå~äÇëçåKÅçã açå~äÇëçå=`çãé~åóI=fåÅK `çãéêÉëëÉÇ=^áê=C=d~ë mKlK=_çñ=NOVV jáååÉ~éçäáëI=jk RRQQMJNOVV=rKpK^K fåÑçêã~íáçå=áå=íÜáë=ÇçÅìãÉåí áë=ëìÄàÉÅí=íç=ÅÜ~åÖÉ=ïáíÜçìí=åçíáÅÉK «=OMMV=açå~äÇëçå=`çKI=fåÅK _ìääÉíáå=kçK=rcp_MNRP pd=`çãéêÉëëÉÇ=^áê=cáäíÉêë=MRJMV SG Compressed Air Filters A B D C Housing Size Capacity* (scfm) Connections (inches FNPT) Element Dimensions (inches) A B C D 0288 1728 4 3050 54 18 55 18 0432 2592 4 2030 43 16 49 16 0768 4608 6 3030 59 19 64 19 * Capacity based on 100...
