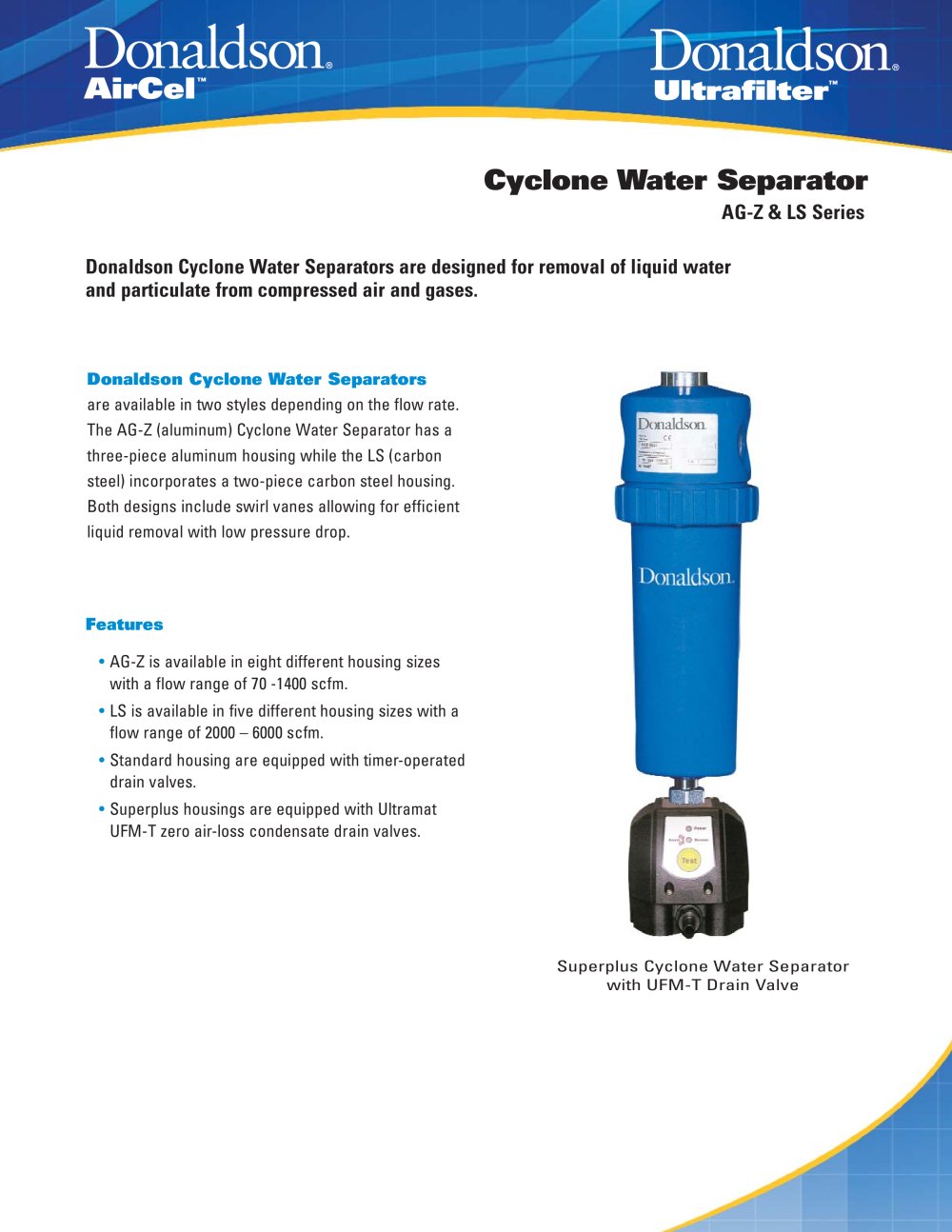

AG-Z & LS Series Donaldson Cyclone Water Separators are designed for removal of liquid water and particulate from compressed air and gases. Cyclone Water Separator Superplus Cyclone Water Separator with UFM-T Drain Valve Donaldson Cyclone Water Separators are available in two styles depending on the flow rate. The AG-Z (aluminum) Cyclone Water Separator has a three-piece aluminum housing while the LS (carbon steel) incorporates a two-piece carbon steel housing. Both designs include swirl vanes allowing for efficient liquid removal with low pressure drop. Features • AG-Z is available in eight different housing sizes with a flow range of 70 -1400 scfm. • LS is available in five different housing sizes with a flow range of 2000 – 6000 scfm. • Standard housing are equipped with timer-operated drain valves. • Superplus housings are equipped with Ultramat UFM-T zero air-loss condensate drain valves. AirCel™ ™

Open the catalog to page 1

Cyclone Water Separator AG-Z & LS Series - 2

Cyclone Water Separator How the Cyclone Water Separator Works Model Capacity1 (scfm) Connection (FNPT/ANSI) Superplus Dimensions Weight (lbs) Zero Air-Loss Height Width Drain Size Conn. Inlet Outlet Height AGZ0009 70 1/2" 1/2" 16 4 14 2.4 UFM-T05 AGZ0018 125 3/4" 3/4" 17 4 15 3.5 UFM-T05 AGZ0027 200 1" 1" 21 5 18 4.2 UFM-T1 AGZ0036 300 1-1/4" 1-1/4" 21 5 18 4.2 UFM-T1 AGZ0048 450 1-1/2" 1-1/2" 25 6 22 11.4 UFM-T20 AGZ0072 600 2" 2" 28 6 25 13.6 UFM-T20 AGZ0144 900 2-1/2" 2-1/2" 32 8 28 19.8 UFM-T100 AGZ0192 1400 3" 3" 32 8 28 19.6 UFM-T100 Superplus Dimensions 1 Capacity based on 100 psig...

Open the catalog to page 2

Cyclone Water Separator AG-Z & LS Series - 3

Cyclone Water Separator 1 Capacity based on 100 psig inlet pressure; 14.7 psia, 68°F ambient conditions, and 1” psid. Standard housings are equipped with timer-operated drain valves. Materials AG-Z Housing Aluminum LS Housing Carbon Steel Surface Finish Blue Polyester Resin Standard & LS Dimensions Specifications Model Capacity1 (scfm) Connection (FNPT/ANSI) Standard Dimensions Weight Inlet Outlet Height Width Conn. Height (lbs) AGZ0009 70 1/2" 1/2" 13 4 11 2.4 AGZ0018 125 3/4" 3/4" 14 4 12 3.5 AGZ0027 200 1" 1" 17 5 14 4.2 AGZ0036 300 1-1/4" 1-1/4" 17 5 14 4.2 AGZ0048 450 1-1/2" 1-1/2" 22...

Open the catalog to page 3

Cyclone Water Separator AG-Z & LS Series - 4

qÉä UMMKRQPKPSPQ=Erp^F qÉä UMMKPQPKPSPV=EïáíÜáå=jÉñáÅçF c~ñ TTMKQQUKPURQ ÅçãéêÉëëÉÇ~áê]ã~áäKÇçå~äÇëçåKÅçã ïïïKÇçå~äÇëçåKÅçã açå~äÇëçå=`çãé~åóI=fåÅK `çãéêÉëëÉÇ=^áê=C=d~ë mKlK=_çñ=NOVV jáååÉ~éçäáëI=jk RRQQMJNOVV=rKpK^K fåÑçêã~íáçå=áå=íÜáë=ÇçÅìãÉåí áë=ëìÄàÉÅí=íç=ÅÜ~åÖÉ=ïáíÜçìí=åçíáÅÉK «=OMMT=açå~äÇëçå=`çKI=fåÅK _ìääÉíáå=kçK=rcp_MNMT `óÅäçåÉ=pÉé~ê~íçê=NNJMT Cyclone Water Separator Capacity Correction Factors The published standard capacities for compressed air Cyclone Separators are based on100 psig inlet pressure and 100°F inlet temperature. When these conditions vary, a given Cyclone...
