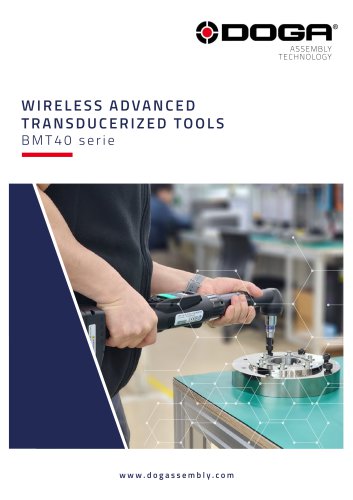

WIRELESS ADVANCED TRANSDUCERIZED TOOLS

As an industrial process expert, we help you meet your challenges. Productivity, safety, quality, industry 4.0 are themes on which we can offer you our expertise and our solutions. Whether in the field of assembly technology, machining or welding, our dedicated and specialized teams accompany your progress and recommend solutions and equipment to reach performance levels in line with your industrial strategy. Expertise Our Field experts propose solutions adapted to your environment and specific needs.. Innovation By developing the products and the services of tomorrow, we offer you new perspectives...

BMT40 serie battery-powered torque and angle screwdrivers are designed to meet your requirements for productivity, quality and traceability, while giving you great mobility. • 2 models available: pistol and angle gear • Wireless for greater mobility • Lightweight, well-balanced tool • 4 multi-function buttons: navigation, selection and interaction, • On-board AMOLED color display for fast visualization of results • Easy setup and programming Thanks to state-of-the-art on-board technologies, they can be directly connected to your network and 100% communicating. With no intermediate controller,...

Model designation Tool serie Housing shape BMT: pistol grip BMTH: angle head Forward / Reverse LED beam Trigger Forward / Reverse Angle type Optional 1D and 2D barcode scanner

Specifications Electric power DC 25.2 V, lithium-ion battery Motor Swiss DC servo motor, brushless IEEE 802.11a/b/g/n 2.4 GHz & 5 GHz dual band Wi-Fi WPA/WPA2-PSK, WPA/WPA2-Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP- Speed Auto speed by torque setting Data memory 65 000 results Display 1.29'' AMOLED color display Number of presets 31 presets Communication Modbus TCP, Open Protocol et DOGANet Firmware V4.x.x minimum or over Features ► Connected screwdrivers, Wi-Fi wireless communication, no need for box or additional accessories. ► «Plug & Play » stand-alone screwdrivers, ready to use in 1 minute....

► Initial network and parameter settings, data monitoring. ► Data download from the internal memory (max. 65 000). ► Easy screwdriver firmware update. ► Parameter settings, data monitoring on PC. ► Free communication protocol (Modbus TCP, Open Protocol) for client application communication (PLC, PC,...) and DOGANet. ► Profinet, TCP / Ethernet IP protocol... (available as option). ► Job Manager : product assembly quality control with tightening strategies, batch counting, assembly visualization, I/O logic management and operator assistance. ► Simple and user friendly sequence programming interface....

► LED beam to illuminate the screwdriving area ► Integrated 1D and 2D barcode scanner (optional) ► Connected and compliante for communication, no need for box or additional accessories

Model without splines Model with splines Built-in digital display Color LED indicator Preset# (model) Change to info & setting mode Battery Target torque Result Choice of function

Technical specifications Pistol wireless DC Tools BMT40 serie - Standard models „ . .. Torque Torque Speed Weight *Weight without battery. Square drive with pin socket retainer, square drive with ball available on request for quick change socket. 2 Screwdriver equipped with splines at the front for use with a reaction bar. Supplied with a rectangular reaction plate with a 33.6 mm diameter. „ . .. Torque Torque Speed Weight *Weight without battery. Square drive with pin socket retainer, square drive with ball available on request for quick change socket. 2 Screwdriver equipped with splines at...

WIRELESS TRANSDUCERIZED ANGLE HEAD SCREWDRIVERS Wireless transducerized angle head screwdrivers with 360° angle drive can be used independently in hardto-reach areas. Their excellent ergonomy and two-handed operation enable them to be used over extender torque ranges. Thanks to their on-board digital display, you can easily define the torque targets and view results directly on the tool. 0.5 to 130 Nm f LED beam to illuminate the screwdriving area f Integrated 1D and 2D barcode scanner (optional) f Built-in Wi-Fi f Connected and compliante for communication, no need for box or additional accessories...

Built-in digital display Preset# (model) Change to info & setting mode Battery Target torque Result Choice of function

Technical specifications Angle head wireless DC tools BMTH40 serie - Standard models „ . .. Torque Torque Speed Weight* *Weight without battery. Square drive with pin socket retainer, square drive with ball available on request for quick change socket.

Weight without battery. Square drive with pin socket retainer, square drive with ball available on request for quick change socket

HIGH-TORQUE WIRELESS TRANSDUCERIZED PISTOL SCREWDRIVERS Our pistol transducerized screwdrivers with torque multipliers feature a reaction arm that rotates 360°. Their design is compact and robust, for optimal weight and balance. With their on-board color digital display, you can easily define the torque targets and view results directly on the tool. 20 to 920 Nm f LED beam to illuminate the screwdriving area f Integrated 1D and 2D barcode scanner (optional) f Built-in Wi-Fi f Connected and compliante for communication, no need for box or additional accessories

Dimensions and technical specifications High-torque pistol wireless DC Tools BMT40 serie - Standard models Designation *Weight without battery and without reaction arm. The BR2 standard arm weight is 0.52 kg and the BR3 standard arm weight is 0.74 kg. High-torque pistol wireless DC tools BMT40 serie - Models with 1D and 2D barcode scanners Designation *Weight without battery and without reaction arm. The BR2 standard arm weight is 0.52 kg and the BR3 standard arm weight is 0.74 kg. Built-in digital display © DOGA | DOC.60526.08/26

Wireless transducerized angle head screwdrivers with torque multiplier feature a reaction arm that rotates 360°. Their design is compact and robust, for optimal weight and balance. Thanks to their on-board digital display, you can easily define the torque targets and view results directly on the tool. ► LED beam to illuminate the screwdriving area ► Integrated 1D and 2D barcode scanner (optional) ► Connected and compliante for communication, no need for box or additional accessories
