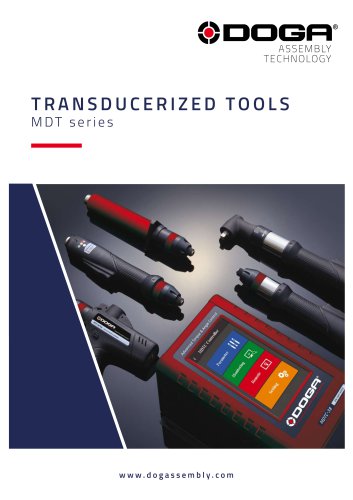

TRANSDUCERIZED TOOLSMDT series

PRODUCTIVE SOLUTIONS you meet your challenges. 5 Reasons to trust us Productivity, safety, quality, industry 4.0 are themes on which we can offer you our expertise and our solutions. Whether in the field of assembly technology, machining or welding, our dedicated and specialized teams accompany your progress and recommend solutions and equipment to reach performance levels in line with your industrial strategy. From design to commissioning, DOGA guarantees the quality of this equipment and services according to ISO 9001: 2015 certification. A committed and responsible Company ISO 14001:2015 certified,...

TRANSDUCERIZED SCREWDRIVERS MDT Series

A WIDE RANGE OF ELECTRIC TOOLS WITH TORQUE AND ANGLE CONTROL Among this wide range, you will find the screwdriver model and ergonomics that will allow you to optimize your workstation. Straight screwdrivers MDT series • • From 0.04 to 115 Nm Lever start or push to start Pistol screwdrivers MDTP series • • • Self-learning mode determines the best parameters to provide the best torque accuracy with the highest possible speed. Highest MTBF thanks to its high quality DC motor. From 0.4 to 49 Nm Trigger start Bottom or top exit cable Angle head screwdrivers MDTH series • Spindles for automation MDTA...

Models specifications - A / P Options (L: lever start, P: push to start, C or TBC: telescopic cushion, U: top exit cable, D: bottom exit cable) Bit socket (A: Hex 1/4’’, E: half-moon 4 mm, Q: square) Gear ratio (1/16) – 1, 2, 4, 8, 10, 11, 16, 20, 24, 36, 45, 64 Current - 22, 26, 32, 40 Body type (X: Straight, P: Pistol grip, A: Spindle, H: Angle head) Transducerized tool series

PRECISE AND ROBUST, DESIGNED FOR HIGH-SPEED VERTICAL TIGHTENING OPERATIONS REQUIRING ACCURACY AND TRACEABILITY. mini straight screwdrivers - Lever start Designation Delivered without tool cable, M18 diameter for accessories.

Standard straight screwdrivers - Push to start Designation Delivered without tool cable.

IDEAL FOR HORIZONTAL TIGHTENING OPERATIONS, TO MEET YOUR PRODUCTION RATES From 0.4 to 57 Nm Top exit cable Designation Delivered without tool cable. Square drive with pin socket retainer, square drive with ball available on request for quick change socket.

Bottom exit cable Designation Delivered without tool cable. Square drive with pin socket retainer, square drive with ball available on request for quick change socket.

IDEAL FOR TORQUE AND ANGLE TIGHTENING OPERATIONS IN HARD-TO-REACH AREAS. THEY ARE DESIGNED TO MEET HIGH PRODUCTION RATES REQUIRING ACCURACY AND TRACEABILITY Standard angle head screwdrivers Designation

INTEGRATED INTO YOUR AUTOMATED INSTALLATIONS, THEY MEET YOUR PRODUCTION RATES MDTA 22 mini for microcouple MDTA 32 without telescopic MDTA 32 with telescopic mini spindles With built-in telescoping cushion Delivered without tool cable. Square drive with pin socket retainer, square drive with ball available on request for quick change socket.

Without telescopic cushion Telescopic bit cushion (MDTA) You can find the appropriate telescopic bit cushion in the “Accessories" section of the catalog, on page 22.

Functionalities of the MDTC associated controllers • Multilingual menus: German, English, Spanish, French, Czech, Italian. • 31 tightening programs (torque and angle control). • Choice of screwing direction of rotation for each program. • Advanced functions with independent settings for each preset : reverse rotation, engaging torque detection, thread tapping, angle after torque-up, monitoring or compensation of the drag torque, detection of screw head contact (for self-forming or self-tapping screws). • 2 multi-sequences programs, for several presets run with one cycle start. • 15 models for...

Features Specifications Voltage Input: AC 230 V, 50/60Hz, 2.5 A / Output: DC 38 V 3.5 A Operating environment 0 ~ 40°C / 15 ~ 80% RH (without dew) Front panel Inputs/Outputs MDTC-22: 5" LCD color 800 x 480 dots - touch & multilingual menus MDTC-38: 7" LCD color - dots - touch & multilingual menus MDTC-90: 8" LCD color - dots - touch & multilingual menus 8 inputs and 8 outputs assignable + 7 free inputs assigned to models via SUB-D25 port SD card Included one 8 GB SD card - industrial grade Software Management of firmware update Firmwares Via SD card Controller main board / LCD display Language...

Controller communication and display MDTC controller Modbus Protocol RS232 or Ethernet ParaMon-Pro X PC (frew software - ParaMon 4) Program - Preset (1 to 31) Fastening result OK/NOK Monitoring torque Torque target Speed target/Monitoring Time Monitoring angle Count target/Monitoring Snug angle Date and time

Torque and angle tightening strategies 31 different tightening programs can be set in each MDTC controller. Each program can be set with 15 customizable parameters. Tightening direction may be different for each preset. -Torque -Angle -Torque - Speed Each preset program has the following customized parameters • Torque control + angle monitoring TC / AM • Angle control + torque monitoring AC / TM • Target torque, min/max torque, snug torque, seating torque, torque compensation • Target angle, min/max angle, free speed angle • Target speed, free speed • Soft start time, torque rising time, torque...

• With models you can apply Sequence control by managing tightening preset#, screw counting, time delay, inputs & outputs which provide automation without PLC or sequence control device. • 15 process sequence managing models. Each model consisting with 20 steps of sequence program. • Each step can control: - A tightening batch (TC/AM or AC/TM) with a counter of OK results. • A report « model complete » validates the end of the model (sequence end). Modbus protocol communication MDTC cont ro ller pro vides the Mo dbus RTU fo r RS232 and Modbus TCP/IP for th e Ether net port connection together....
