PDS-100
3Pages

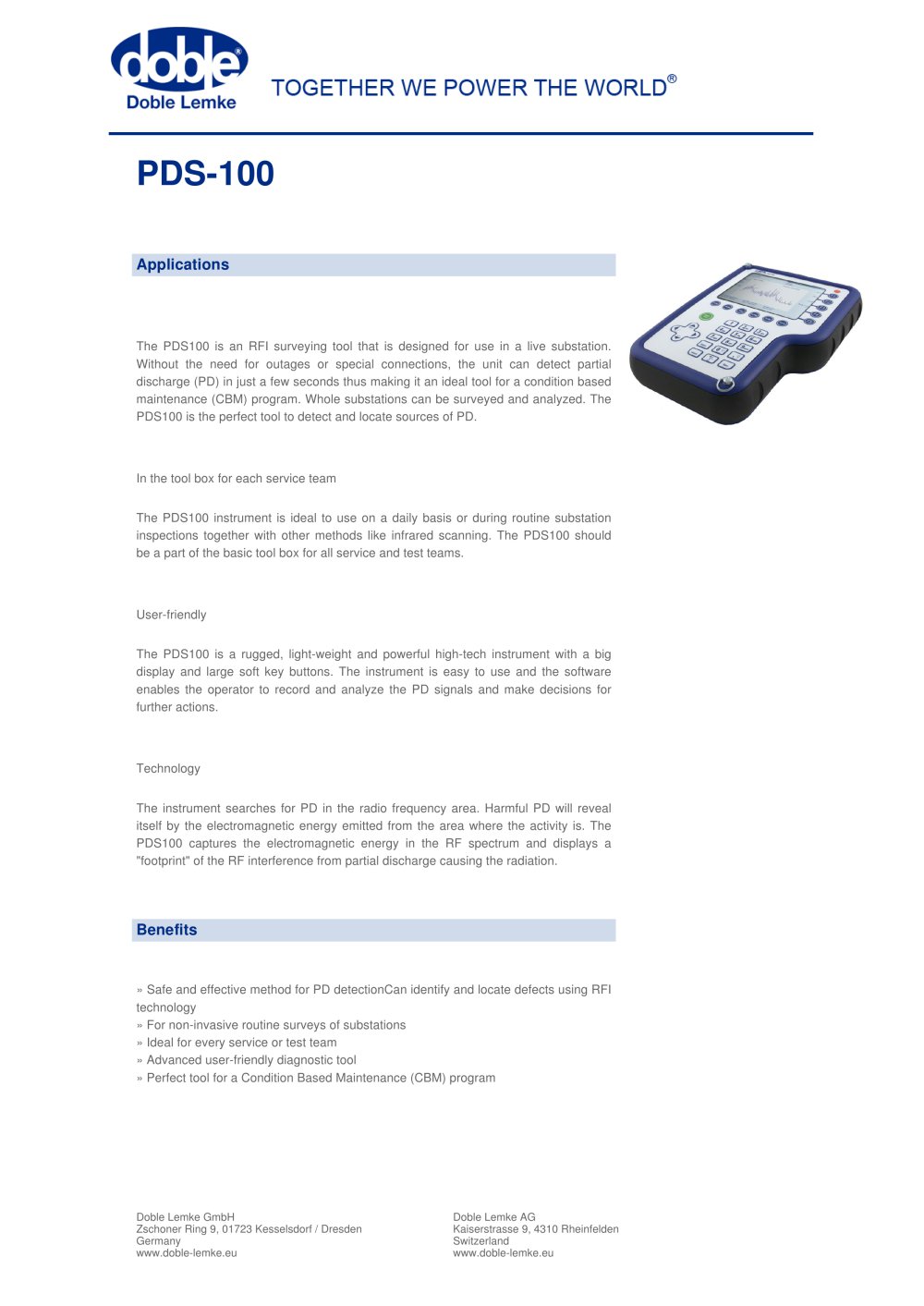

The PDS100 is an RFI surveying tool that is designed for use in a live substation. Without the need for outages or special connections, the unit can detect partial discharge (PD) in just a few seconds thus making it an ideal tool for a condition based maintenance (CBM) program. Whole substations can be surveyed and analyzed. The PDS100 is the perfect tool to detect and locate sources of PD. In the tool box for each service team The PDS100 instrument is ideal to use on a daily basis or during routine substation inspections together with other methods like infrared scanning. The PDS100 should be a part of the basic tool box for all service and test teams. User-friendly The PDS100 is a rugged, light-weight and powerful high-tech instrument with a big display and large soft key buttons. The instrument is easy to use and the software enables the operator to record and analyze the PD signals and make decisions for further actions. Technology The instrument searches for PD in the radio frequency area. Harmful PD will reveal itself by the electromagnetic energy emitted from the area where the activity is. The PDS100 captures the electromagnetic energy in the RF spectrum and displays a "footprint" of the RF interference from partial discharge causing the radiation. » Safe and effective method for PD detectionCan identify and locate defects using RFI technology » For non-invasive routine surveys of substations » Ideal for every service or test team » Advanced user-friendly diagnostic tool » Perfect tool for a Condition Based Maintenance (CBM) program Doble Lemke GmbH Zschoner Ring 9, 01723 Kesselsdorf / Dresden Germany www.doble-lemke.eu Doble Lemke AG Kaiserstrasse 9, 4310 Rheinfelden Switzerland www.doble-lemke.eu

Power Supply: » external supply: 85 - 264V AC (47 - 63Hz) / 12V » internal battery: Li-Ion, 7,2V, 6,6 Ah Detection und Sweep functions: » Detector types: Peak, quasi-peak, RSM and average » Sweep Prozess: Continuous, Average, Max Hold und Differential Frequency: » Measuring Range: 50MHz - 1000MHz Amplitude: » Display units: Linear (V, mV, µV); logaritmic (dBmV, dBµV) Data storage / transfer: » Internal: Flash memory » External: USB storage class compliant USB Flash Drive / USB Hard Disk Drive LCD Screen: » Size (W x H): 132x100 mm / 5.20x3.94 in » Resolution: 640x480 pixel, 256 colours...

Additional Pictures Doble Lemke GmbH Zschoner Ring 9, 01723 Kesselsdorf / Dresden Germany www.doble-lemke.eu Doble Lemke AG Kaiserstrasse 9, 4310 Rheinfelden Switzerland www.doble-lemke.eu
