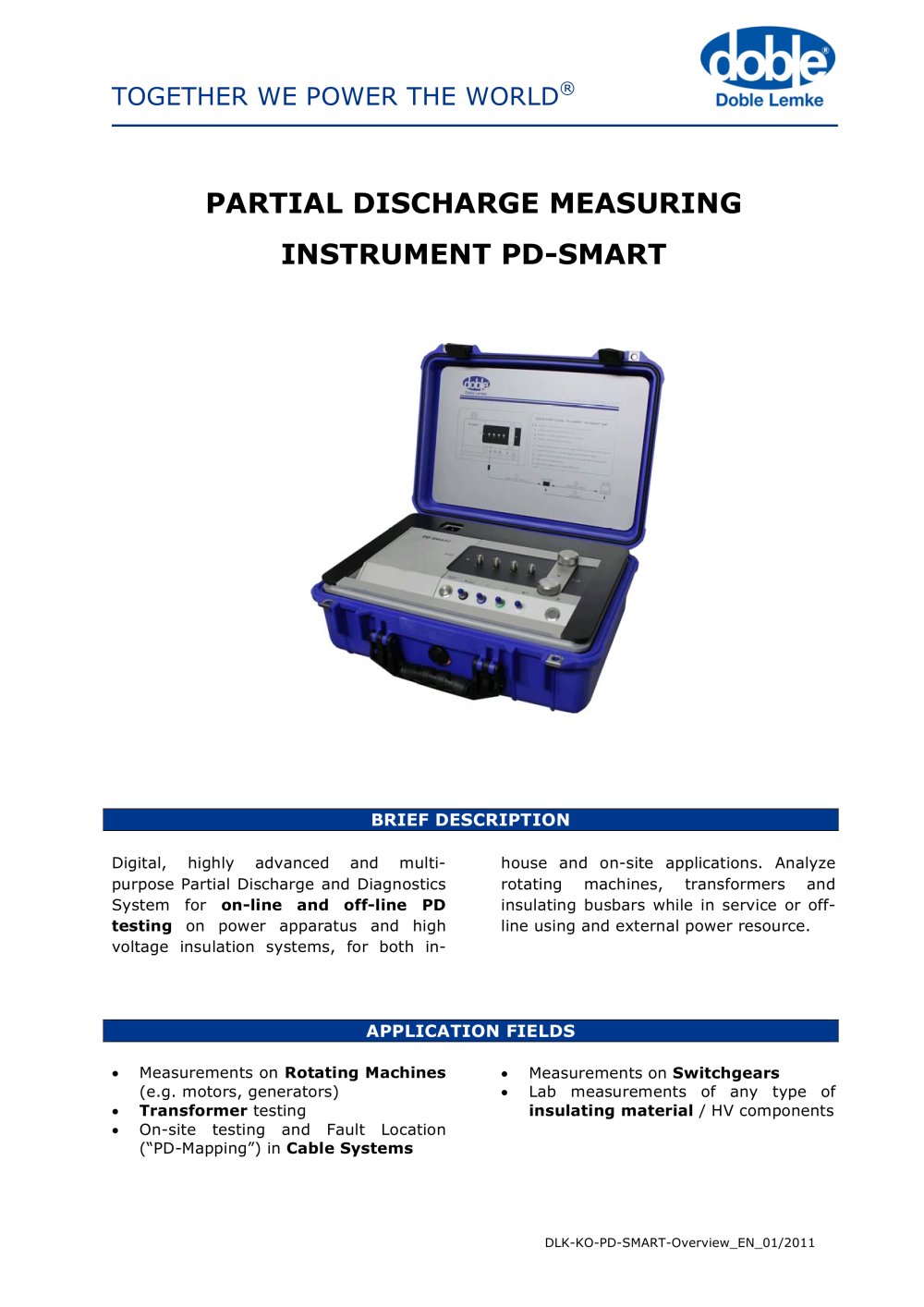

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Trebuchet MS", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } .font3 { font:10.00pt "Verdana", sans-serif; } .font4 { font:15.00pt "Verdana", sans-serif; } .font5 { font:17.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D^TtTmke PARTIAL DISCHARGE MEASURING INSTRUMENT PD-SMART Digital, highly advanced and multi-purpose Partial Discharge and Diagnostics System for on-line and off-line PD testing on power apparatus and high voltage insulation systems, for both in- house and on-site applications. Analyze rotating machines, transformers and insulating busbars while in service or off-line using and external power resource. APPLICATION FIELDS Measurements on Rotating Machines Օ Measurements on Switchgears (e.g. motors, generators) Lab measurements of any type of Օ Transformer testing insulating material / HV components On-site testing and Fault Location ("PD-Mapping") in Cable Systems DLK-KO-PD-SMART-Overview_EN_01/2011

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Trebuchet MS", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } .font3 { font:15.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke System parameter Self-noise < 0,08 pC Max. double pulse resolution < 32 ns (time range, superposition error < 1 %) Single pulse detection < 3 ns Max. Impulse frequency > 2,1 MPulses/sek Synchronization between the units < 800 ps Voltage...

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Tahoma", sans-serif; } .font4 { font:9.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke A comprehensive PD valuation toolbox is implemented in the PD-SMART. It serves for all types of analyzing. Typical routines and evaluation-processes for quality tests in a production environment,...

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Tahoma", sans-serif; } .font4 { font:11.00pt "Tahoma", sans-serif; } .font5 { font:9.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D^TtTmke OPTIONAL HARD-/SOFTWARE ADD ON'S Cable Fault Location Software Օ UHF-Measurement Software (Ultra High Frequency) Multichannel Measurement Add on's for...

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:101.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Tahoma", sans-serif; } .font6 { font:9.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke HFCT sensor (Rogowski Coil) Օ PD Fault Location Unit (Reflectometer Method) ESSORIES FOR MEASUREMENTS ON...

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke Bushing tap adaptor LDM-6/U: PD Measuring Impedance with Voltage decoupling for Power Transformer Bushings Օ Measuring Impedance LDM-5/U5 with add. 2 switches for 4 Cu's DLK-KO-PD-SMART-Overview_EN_09/2011

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Trebuchet MS", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } .font3 { font:15.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke Additional, integrated Noise-Gating channel. The Dթtection and Elimination of external Noises is done by using a separate measurement channel including an external antenna. The gating channel is part of the standard delivery volume....

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Trebuchet MS", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } .font3 { font:10.00pt "Verdana", sans-serif; } .font4 { font:15.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D^leTemke SOFTWARE SCREENSHOTS Slection of diffrent diagrams / functions (customizable) Statistics / Analyse functions DLK-KO-PD-SMART-Overview_EN_09/2011

Microsoft Word - 2_Partial Discharge Measuring_Instruments_PD-SMART.doc table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Trebuchet MS", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } .font3 { font:15.00pt "Verdana", sans-serif; } TOGETHER WE POWER THE WORLD® D"o5ietemke Phase-resolved PD pattern (PRPD-Pattern) Display of charge vs. Voltage (phase-resolved). "Replay Mode" Display of previous data Preview Immediate preview of PD patterns DLK-KO-PD-SMART-Overview_EN_09/2011
