The M5400 is used for detecting core movement and winding deformation/displacement in transformers and reactors.
The device offers easy-to-use software and test leads, high accuracy and repeatability, a field-rugged design, and the ability to store apparatus nameplate information with test data.
- Frequency Range: 10Hz to 25MHz, with a default range of 20Hz to 2MHz.
- Output Voltage: 20V peak-to-peak at 50Ω, short-circuit protected.
- Number of Data Points: 1,000 (default), up to 1,800 (extended range).
- Dynamic Range: Greater than 90dB.
- Repeatability: ±1dB to -80dB.
- PC Communications: Ethernet or USB.
- Operating Environment: 0 to 50°C, 0 to 95% relative humidity.
- Weight: 6kg.
- Test Leads: Integrated 3-lead system in a single cable set, 18m length.
The SFRA software can be installed on any PC to assist in comparing test plots.
Includes 30m test leads.
Doble Lemke GmbH, Zschoner Ring 9, 01723 Kesselsdorf / Dresden, Germany. Doble Lemke AG, Kaiserstrasse 9, 4310 Rheinfelden, Switzerland. Website: www.doble-lemke.eu
Catalog excerpts

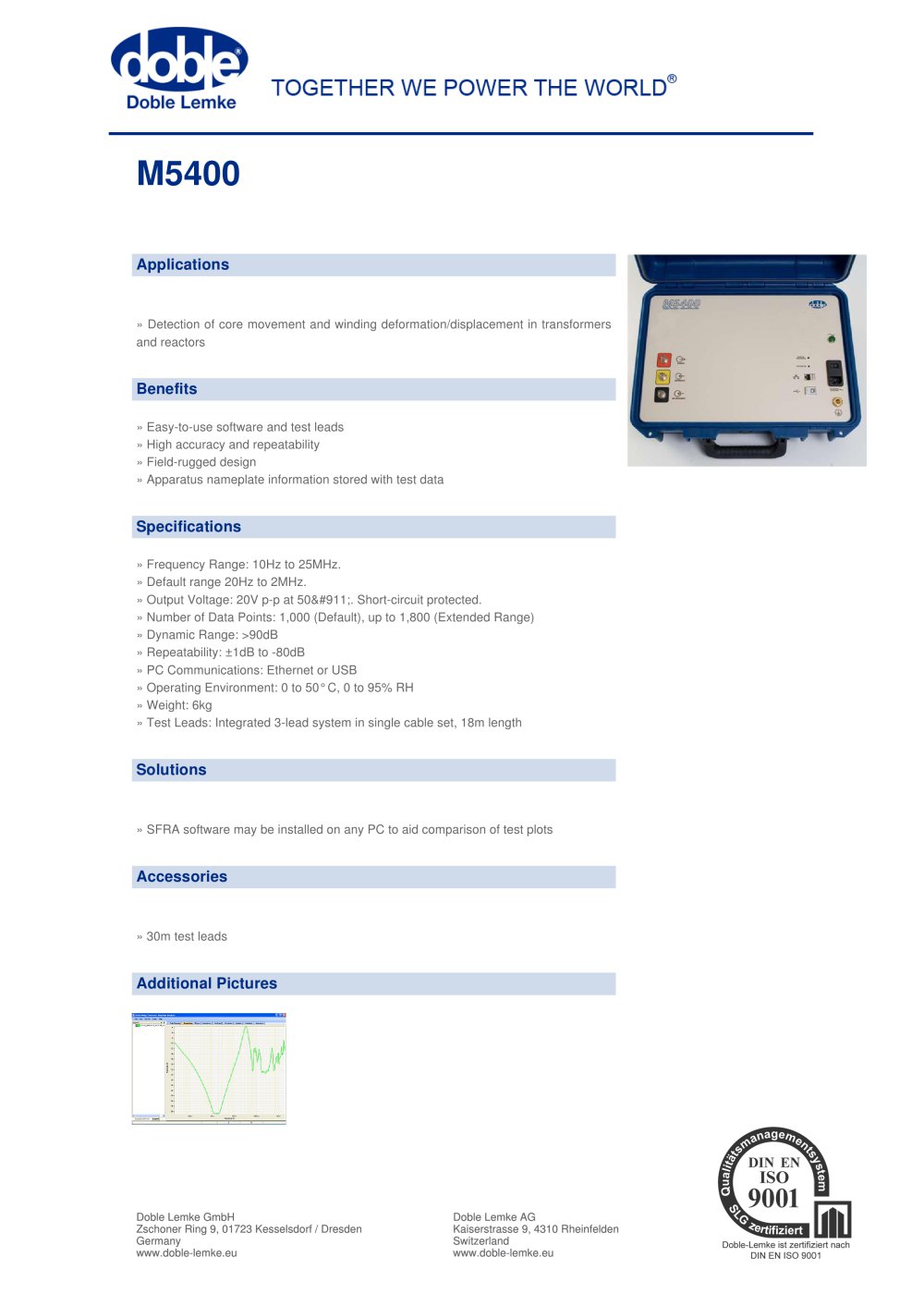

» Detection of core movement and winding deformation/displacement in transformers and reactors Benefits » Easy-to-use software and test leads » High accuracy and repeatability » Field-rugged design » Apparatus nameplate information stored with test data Specifications » Frequency Range: 10Hz to 25MHz. » Default range 20Hz to 2MHz. » Output Voltage: 20V p-p at 50Ώ. Short-circuit protected. » Number of Data Points: 1,000 (Default), up to 1,800 (Extended Range) » Dynamic Range: >90dB » Repeatability: ±1dB to -80dB » PC Communications: Ethernet or USB » Operating Environment: 0 to 50° C, 0 to 95% RH » Weight: 6kg » Test Leads: Integrated 3-lead system in single cable set, 18m length » SFRA software may be installed on any PC to aid comparison of test plots Additional Pictures Doble Lemke GmbH Zschoner Ring 9, 01723 Kesselsdorf / Dresden Germany www.doble-lemke.eu Doble Lemke AG Kaiserstrasse 9, 4310 Rheinfelden Switzerland www.doble-lemke.eu
