F6150

F6150
2Pages

Catalog excerpts

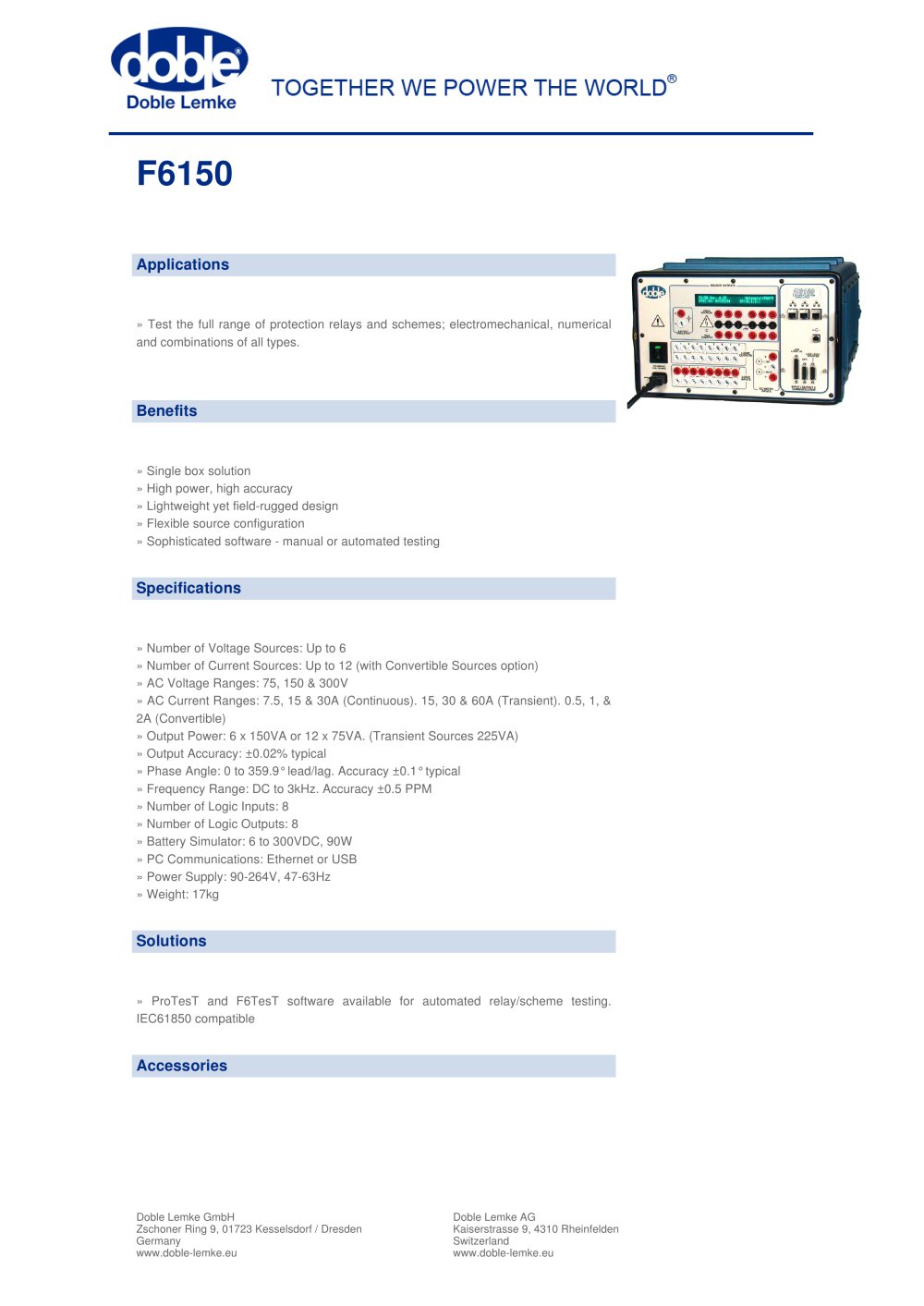

» Test the full range of protection relays and schemes; electromechanical, numerical and combinations of all types. » Single box solution » High power, high accuracy » Lightweight yet field-rugged design » Flexible source configuration » Sophisticated software - manual or automated testing » Number of Voltage Sources: Up to 6 » Number of Current Sources: Up to 12 (with Convertible Sources option) » AC Voltage Ranges: 75, 150 & 300V » AC Current Ranges: 7.5, 15 & 30A (Continuous). 15, 30 & 60A (Transient). 0.5, 1, & 2A (Convertible) » Output Power: 6 x 150VA or 12 x 75VA. (Transient Sources 225VA) » Output Accuracy: ±0.02% typical » Phase Angle: 0 to 359.9° lead/lag. Accuracy ±0.1° typical » Frequency Range: DC to 3kHz. Accuracy ±0.5 PPM » Number of Logic Inputs: 8 » Number of Logic Outputs: 8 » Battery Simulator: 6 to 300VDC, 90W » PC Communications: Ethernet or USB » Power Supply: 90-264V, 47-63Hz » Weight: 17kg » ProTesT and F6TesT software available for automated relay/scheme testing. IEC61850 compatible Doble Lemke GmbH Zschoner Ring 9, 01723 Kesselsdorf / Dresden Germany www.doble-lemke.eu Doble Lemke AG Kaiserstrasse 9, 4310 Rheinfelden Switzerland www.doble-lemke.eu

Open the catalog to page 1

F6150 » F6800 Transducer Interface » F6810 High Power Convertible Voltage/Current Sources » F6860 IEC61850 GSE Interface Module » F6885/95 GPS Satellite Receiver, Antenna & Interface » F6910 Simulator Control and Automation Module » F6802 Wireless Ethernet Communication Module » F6820 Analog Input Measurement » F6010 Handheld Controller » F6050 GPS Universal Time Synchroizer » F5800/14 Interface Module for testing Reclosers » F6071/72/73 Disc Sensor for Meter Testing » F6080 Instrument Field Calibration Unit » F6300 High Power Current Module: 6 X 150VA Sources Doble Lemke GmbH Zschoner Ring...
